DC Fan
MFD12025C
: 120 x 120 x 25mm
Airflow
103.1~155.7 CFM
Speed
3100~4500 RPM
Noise
46.6~57.2 dB(A)
Product Specifications
| Size | : 120 x 120 x 25mm |
| Voltage | 12V / 24V / 48V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD12025CD1-HB | 12 | 7 ~ 13.8 | 0.71 | 8.52 | 3700 | 129.18 | 9.63 | 51.4 |
| MFD12025CD1-HHB | 12 | 7 ~ 13.8 | 0.84 | 10.08 | 4000 | 133.7 | 10.55 | 53.8 |
| MFD12025CD1-LB | 12 | 7 ~ 13.8 | 0.54 | 6.48 | 3100 | 103.12 | 6.59 | 46.6 |
| MFD12025CD1-MB | 12 | 7 ~ 13.8 | 0.62 | 7.44 | 3400 | 107.13 | 8.12 | 49.6 |
| MFD12025CD1-VHB | 12 | 7 ~ 13.8 | 1.2 | 14.4 | 4500 | 155.73 | 13.73 | 57.2 |
| MFD12025CD2-HB | 24 | 18 ~ 26.5 | 0.36 | 8.64 | 3700 | 129.18 | 9.63 | 51.4 |
| MFD12025CD2-HHB | 24 | 18 ~ 26.5 | 0.42 | 10.08 | 4000 | 133.7 | 10.55 | 53.8 |
| MFD12025CD2-LB | 24 | 18 ~ 26.5 | 0.3 | 7.2 | 3100 | 103.12 | 6.59 | 46.6 |
| MFD12025CD2-MB | 24 | 18 ~ 26.5 | 0.31 | 7.44 | 3400 | 107.13 | 8.12 | 49.6 |
| MFD12025CD2-VHB | 24 | 18 ~ 26.5 | 0.6 | 14.4 | 4500 | 155.73 | 13.73 | 57.2 |
| MFD12025CD4-HB | 48 | 36 ~ 54 | 0.18 | 8.64 | 3700 | 129.18 | 9.63 | 51.4 |
| MFD12025CD4-HHB | 48 | 36 ~ 54 | 0.21 | 10.08 | 4000 | 133.7 | 10.55 | 53.8 |
| MFD12025CD4-LB | 48 | 36 ~ 54 | 0.14 | 6.72 | 3100 | 103.12 | 6.59 | 46.6 |
| MFD12025CD4-MB | 48 | 36 ~ 54 | 0.16 | 7.68 | 3400 | 107.13 | 8.12 | 49.6 |
| MFD12025CD4-VHB | 48 | 36 ~ 54 | 0.3 | 14.4 | 4500 | 155.73 | 13.73 | 57.2 |

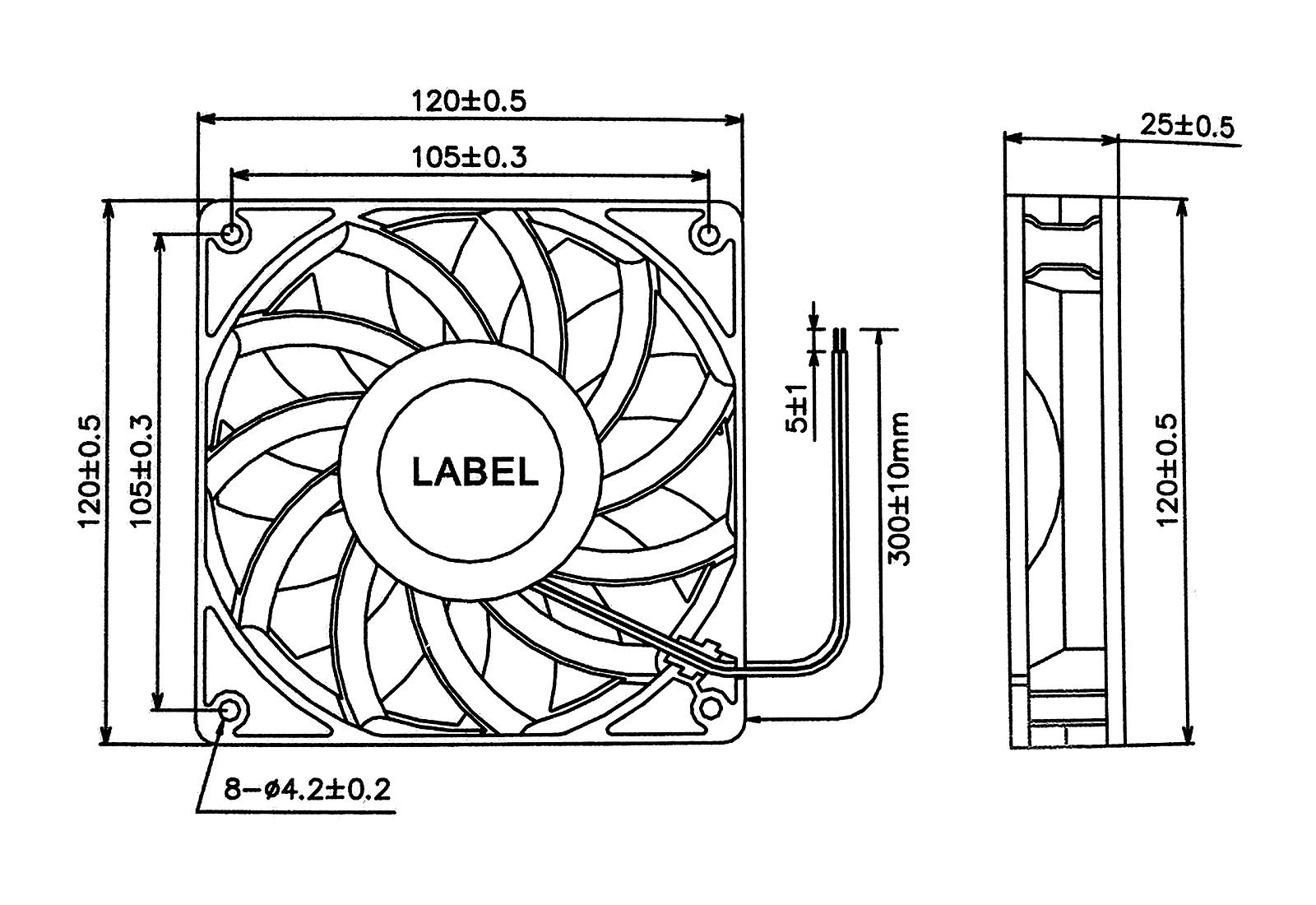

Dimension Drawing

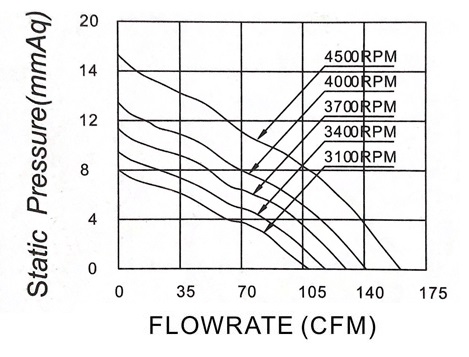

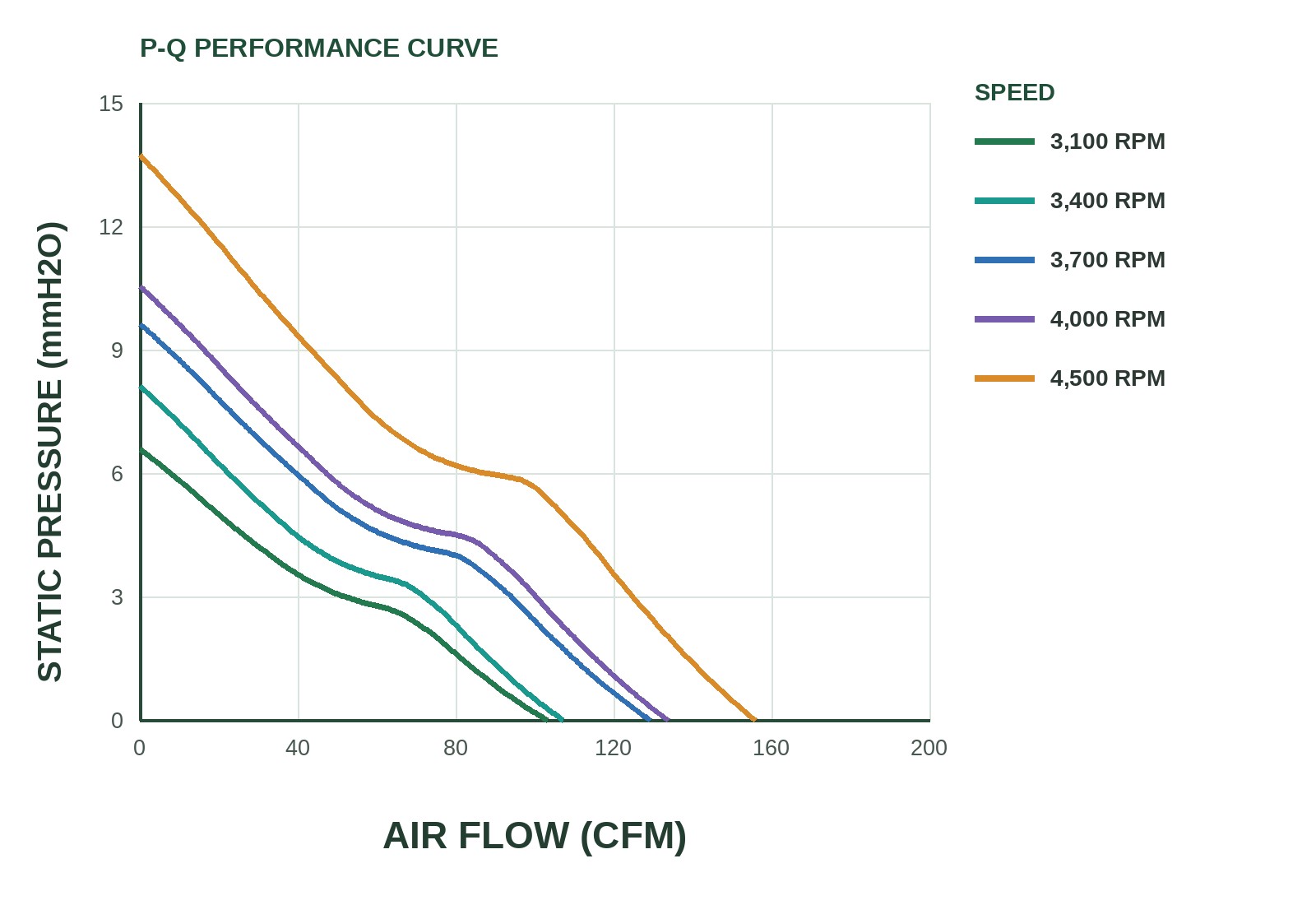

P&Q Curve
