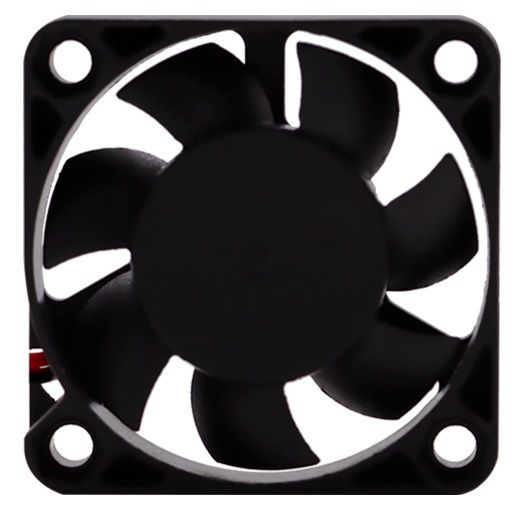

DC Fan
MFD4010C
: 40 x 40 x 10 mm
Airflow
4.1~6.7 CFM
Speed
4500~7000 RPM
Noise
25.1~33.7 dB(A)
Product Specifications
| Size | : 40 x 40 x 10 mm |
| Voltage | 5V / 12V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD4010CD05-HB | 5 | 3.5 ~ 5.5 | 0.168 | 0.84 | 6500 | 6.23 | 3.6 | 31.2 |
| MFD4010CD05-HHB | 5 | 3.5 ~ 5.5 | 0.192 | 0.96 | 7000 | 6.68 | 4.02 | 33.7 |
| MFD4010CD05-HHS | 5 | 3.5 ~ 5.5 | 0.192 | 0.96 | 7000 | 6.68 | 4.02 | 33.7 |
| MFD4010CD05-HS | 5 | 3.5 ~ 5.5 | 0.168 | 0.84 | 6500 | 6.23 | 3.6 | 31.2 |
| MFD4010CD05-LB | 5 | 3.5 ~ 5.5 | 0.072 | 0.36 | 4500 | 4.06 | 1.73 | 25.1 |
| MFD4010CD05-LMB | 5 | 3.5 ~ 5.5 | 0.12 | 0.6 | 5500 | 5.34 | 2.68 | 28.1 |
| MFD4010CD05-LMS | 5 | 3.5 ~ 5.5 | 0.12 | 0.6 | 5500 | 5.34 | 2.68 | 28.1 |
| MFD4010CD05-LS | 5 | 3.5 ~ 5.5 | 0.072 | 0.36 | 4500 | 4.06 | 1.73 | 25.1 |
| MFD4010CD05-LVB | 5 | 3.5 ~ 5.5 | 0.096 | 0.48 | 5000 | 4.51 | 2.12 | 26.2 |
| MFD4010CD05-LVS | 5 | 3.5 ~ 5.5 | 0.096 | 0.48 | 5000 | 4.51 | 2.12 | 26.2 |
| MFD4010CD05-MB | 5 | 3.5 ~ 5.5 | 0.144 | 0.72 | 6000 | 5.84 | 3.29 | 29.6 |
| MFD4010CD05-MS | 5 | 3.5 ~ 5.5 | 0.144 | 0.72 | 6000 | 5.84 | 3.29 | 29.6 |
| MFD4010CD1-HB | 12 | 7 ~ 13.8 | 0.07 | 0.84 | 6500 | 6.23 | 3.6 | 31.2 |
| MFD4010CD1-HHB | 12 | 7 ~ 13.8 | 0.08 | 0.96 | 7000 | 6.68 | 4.02 | 33.7 |
| MFD4010CD1-HHS | 12 | 7 ~ 13.8 | 0.08 | 0.96 | 7000 | 6.68 | 4.02 | 33.7 |
| MFD4010CD1-HS | 12 | 7 ~ 13.8 | 0.07 | 0.84 | 6500 | 6.23 | 3.6 | 31.2 |
| MFD4010CD1-LB | 12 | 7 ~ 13.8 | 0.03 | 0.36 | 4500 | 4.06 | 1.73 | 25.1 |
| MFD4010CD1-LMB | 12 | 7 ~ 13.8 | 0.05 | 0.6 | 5500 | 5.34 | 2.68 | 28.1 |
| MFD4010CD1-LMS | 12 | 7 ~ 13.8 | 0.05 | 0.6 | 5500 | 5.34 | 2.68 | 28.1 |
| MFD4010CD1-LS | 12 | 7 ~ 13.8 | 0.03 | 0.36 | 4500 | 4.06 | 1.73 | 25.1 |
| MFD4010CD1-LVB | 12 | 7 ~ 13.8 | 0.04 | 0.48 | 5000 | 4.51 | 2.12 | 26.2 |
| MFD4010CD1-LVS | 12 | 7 ~ 13.8 | 0.04 | 0.48 | 5000 | 4.51 | 2.12 | 26.2 |
| MFD4010CD1-MB | 12 | 7 ~ 13.8 | 0.06 | 0.72 | 6000 | 5.84 | 3.29 | 29.6 |
| MFD4010CD1-MS | 12 | 7 ~ 13.8 | 0.06 | 0.72 | 6000 | 5.84 | 3.29 | 29.6 |

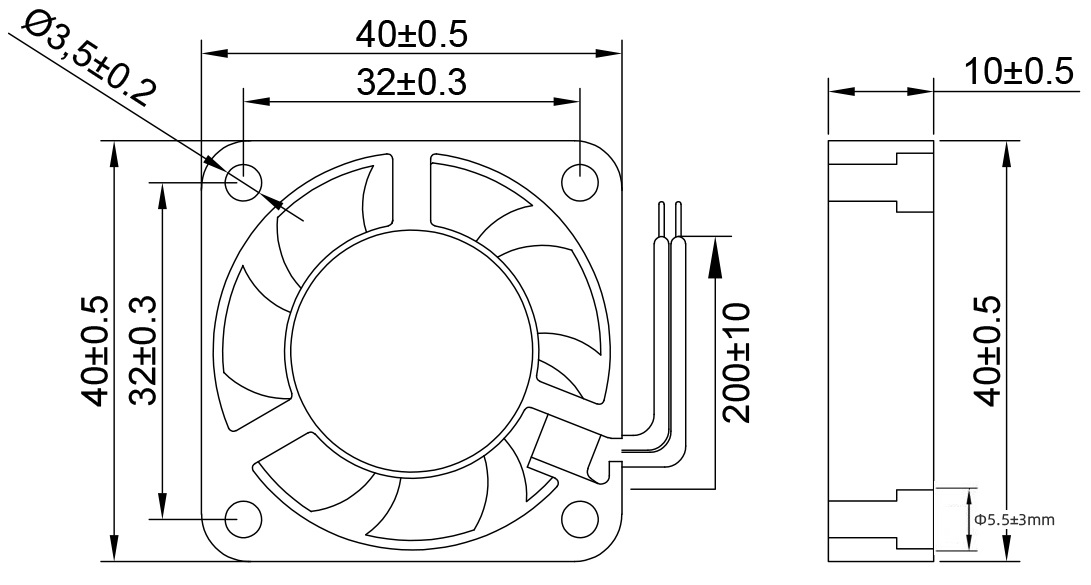

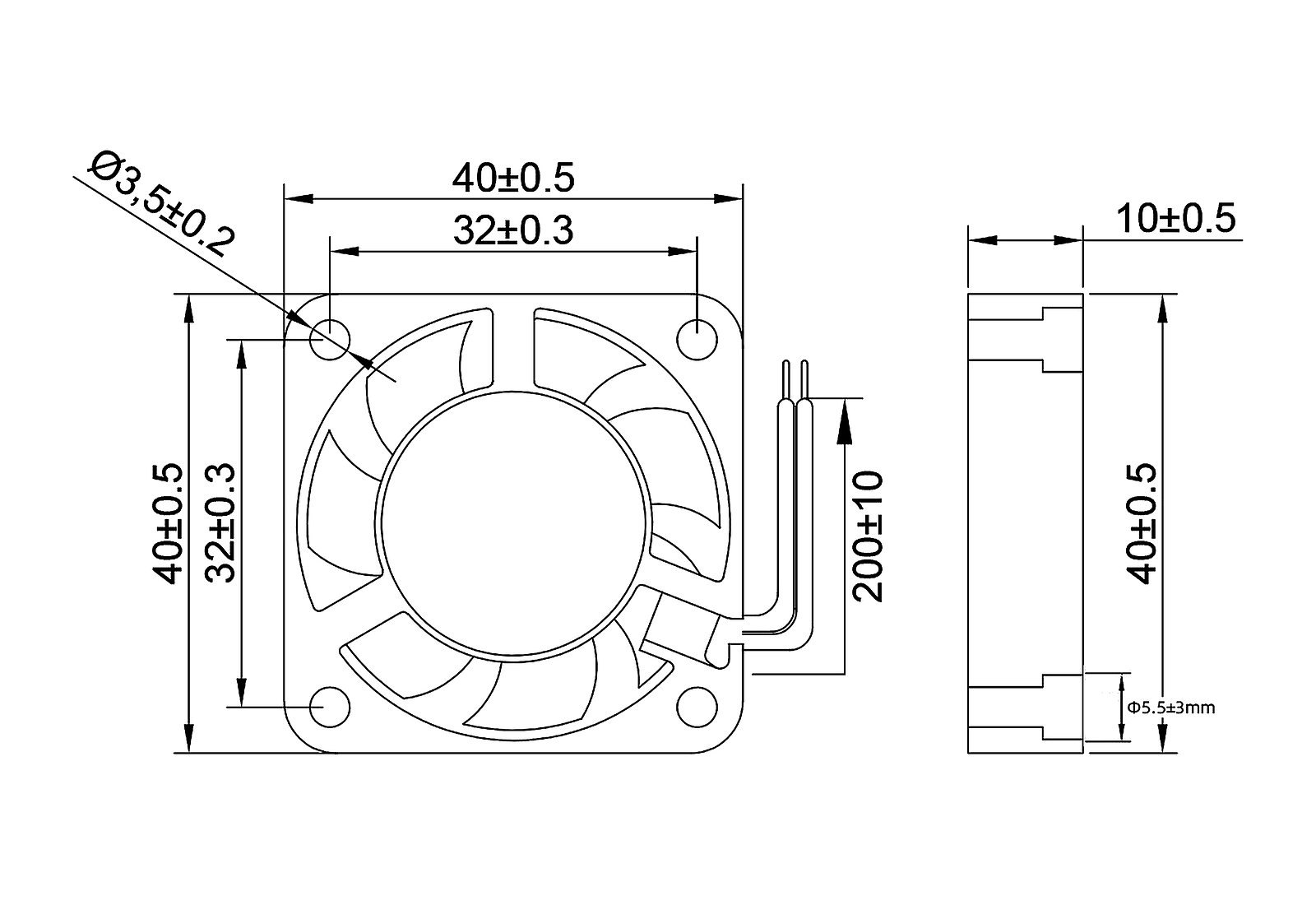

Dimension Drawing

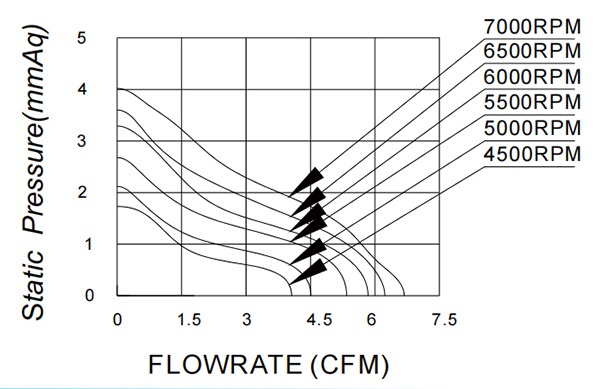

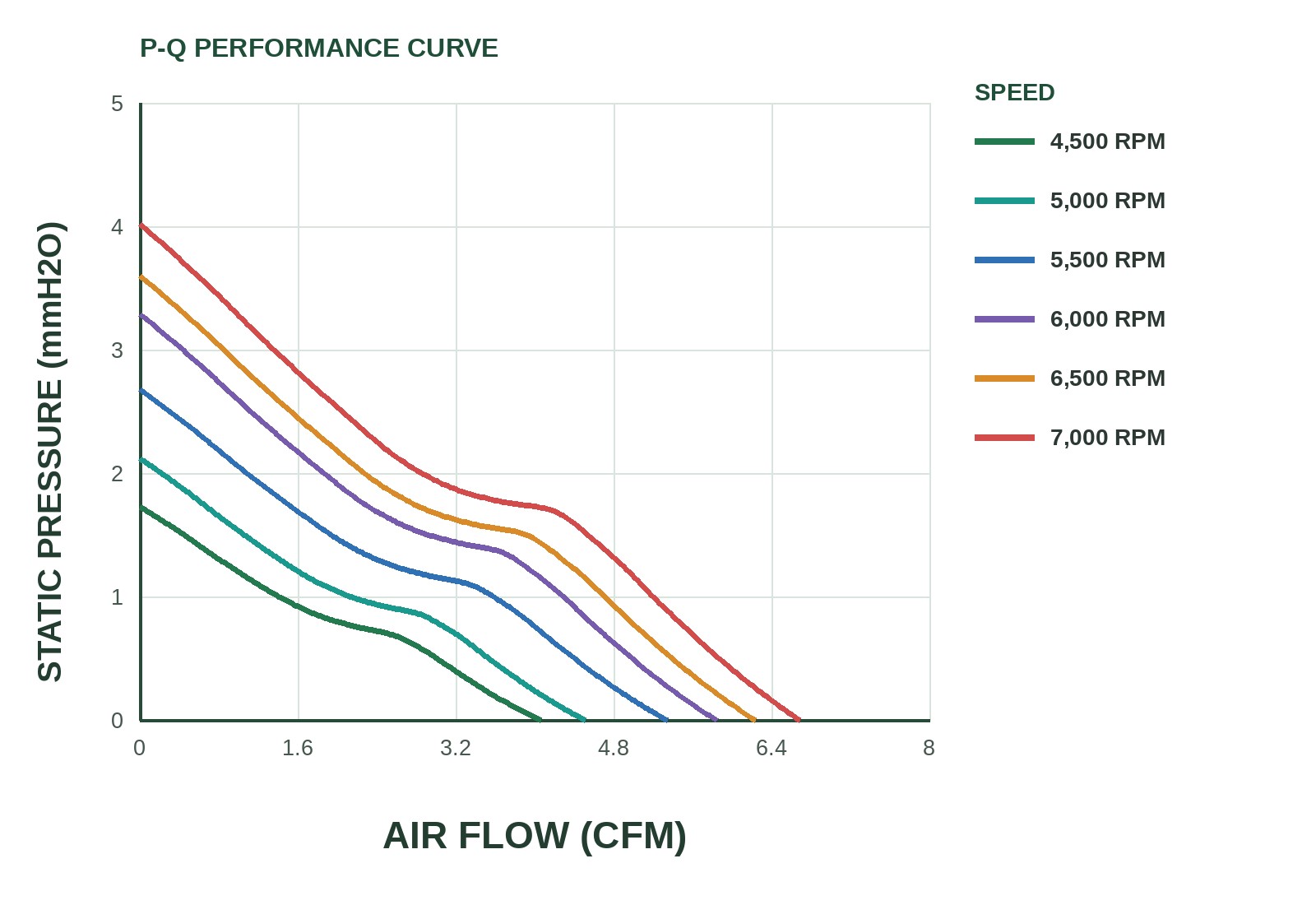

P&Q Curve
