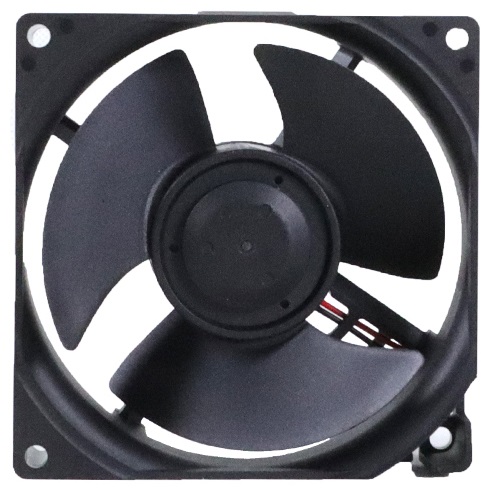

DC Fan
MFD9232
92x92x32mm
High-performance DC axial fan with brushless DC motor. Features PWM speed control, tachometer (FG) signal output, and optional locked rotor detection (RD). Available in multiple voltage configurations from 5V to 48V DC.
Airflow
N/A
Speed
N/A
Noise
N/A
Full Specifications
| Model | MFD9232 |
| Dimensions | 92x92x32mm |
| Airflow | N/A |
| Speed | N/A |
| Noise Level | N/A |
| Voltage | 5V / 12V / 24V / 48V DC |
| Bearing | Ball Bearing / Hydraulic Bearing |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |

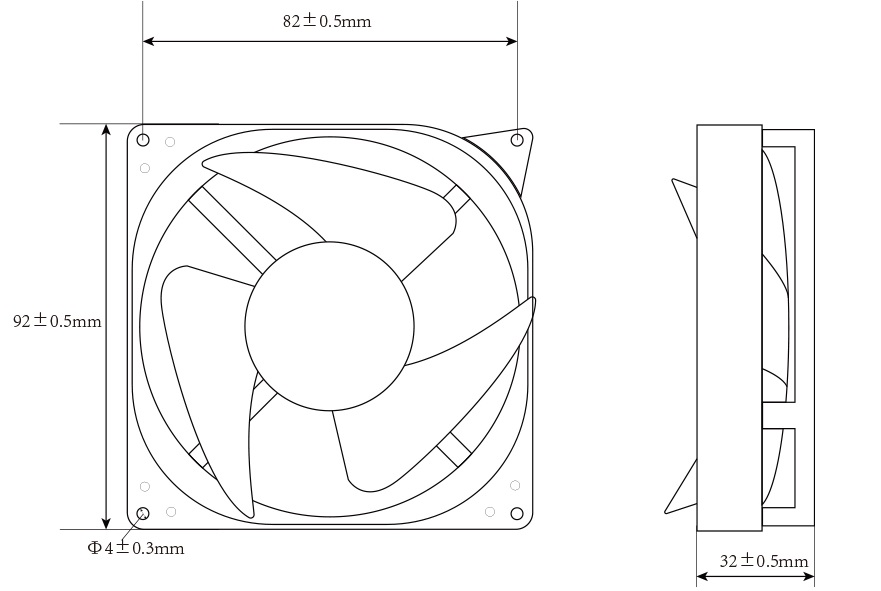

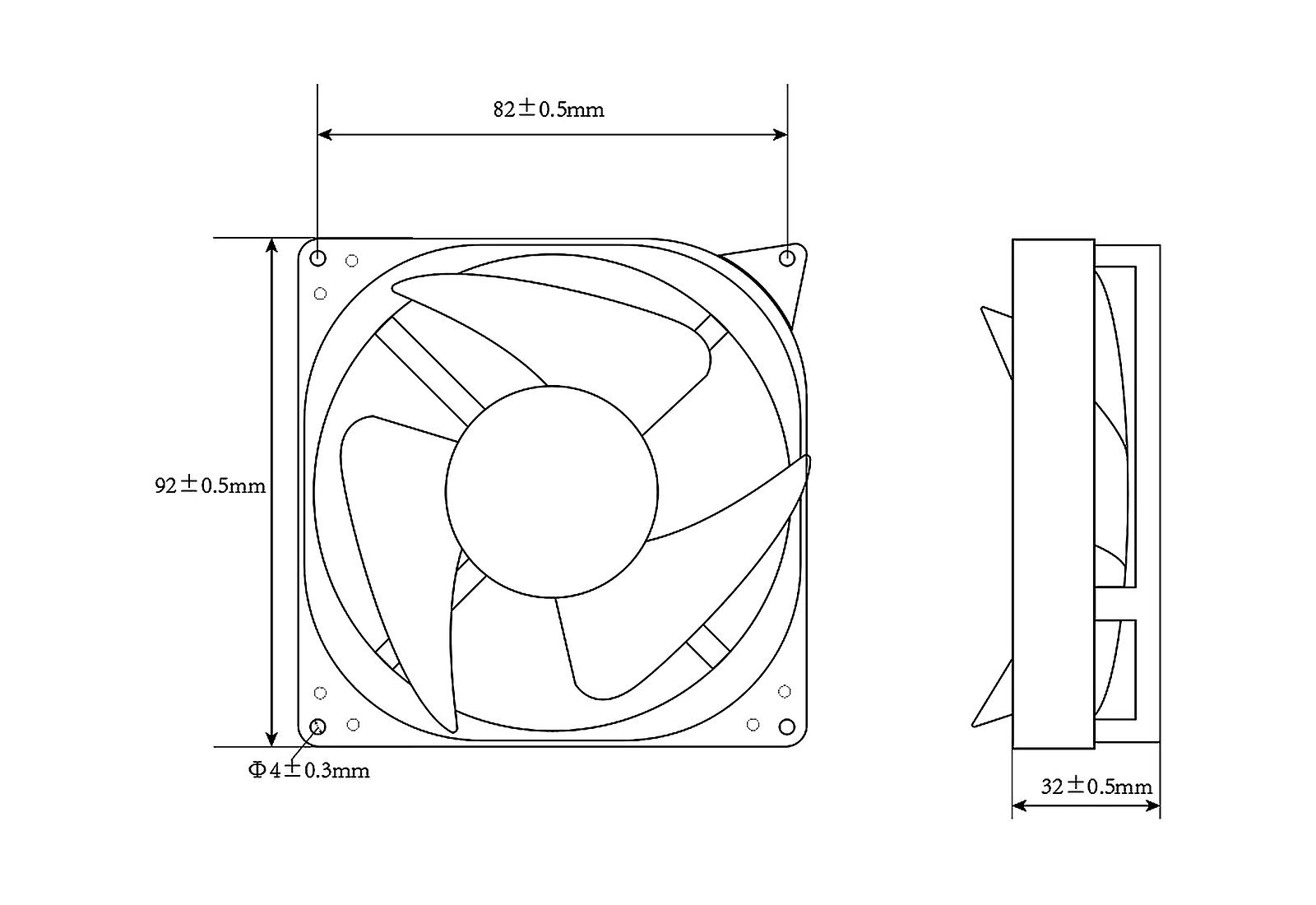

Dimension Drawing

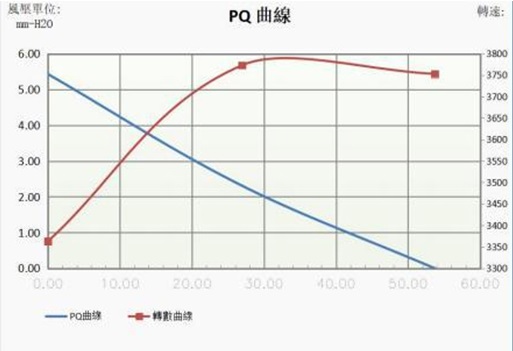

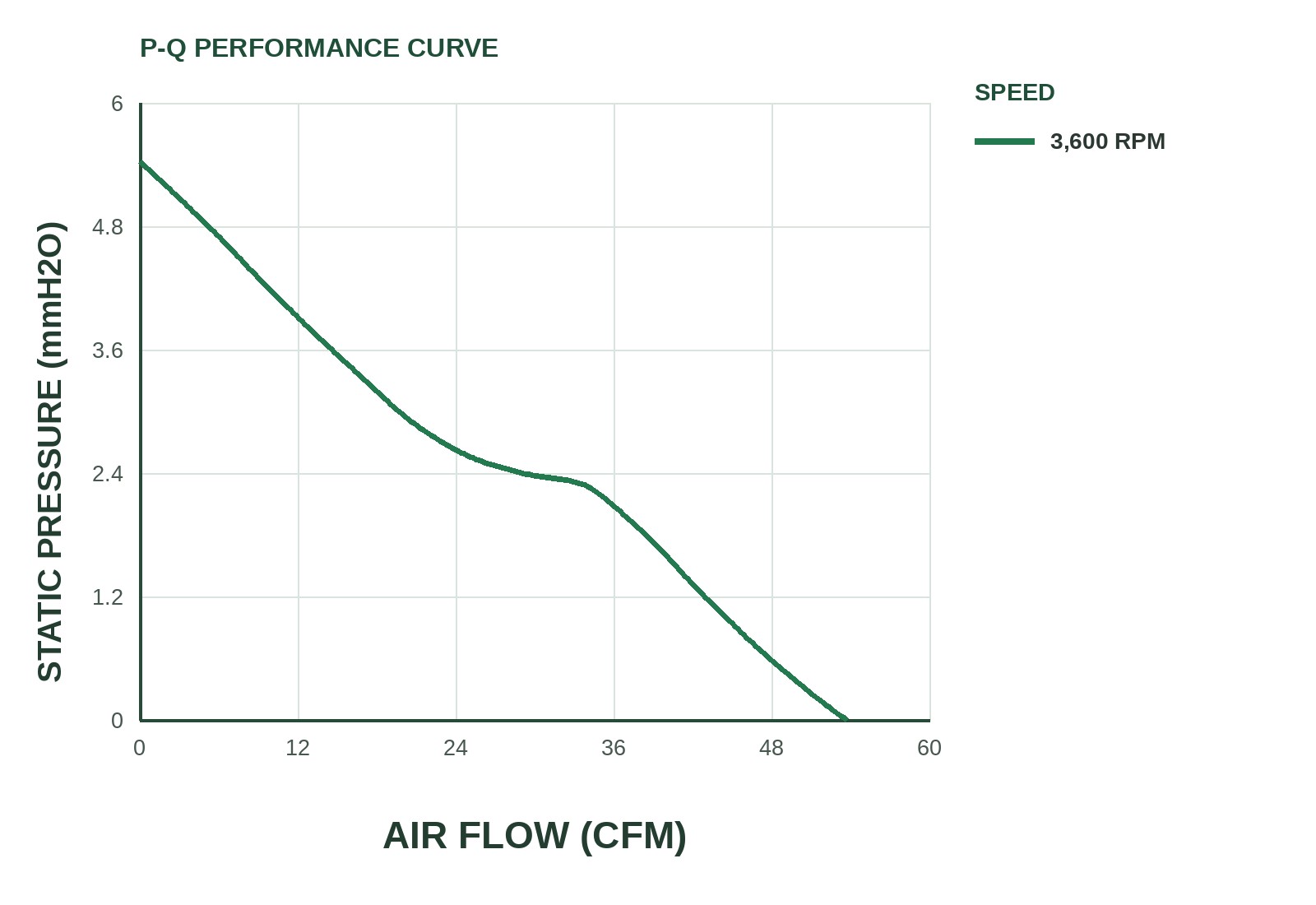

P&Q Curve
