DC Fan
MFD12038F
: 120 x 120 x 38mm
Airflow
236.5 CFM
Speed
7500 RPM
Noise
77.3 dB(A)
Product Specifications
| Size | : 120 x 120 x 38mm |
| Voltage | 12V / 24V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD12038FD1-H | 12 | 8 ~ 13.5 | 2.5 | 30 | 7500 | 236.48 | 43.45 | 77.3 |
| MFD12038FD2-H | 24 | 18 ~ 26.5 | 1.25 | 30 | 7500 | 236.48 | 43.45 | 77.3 |

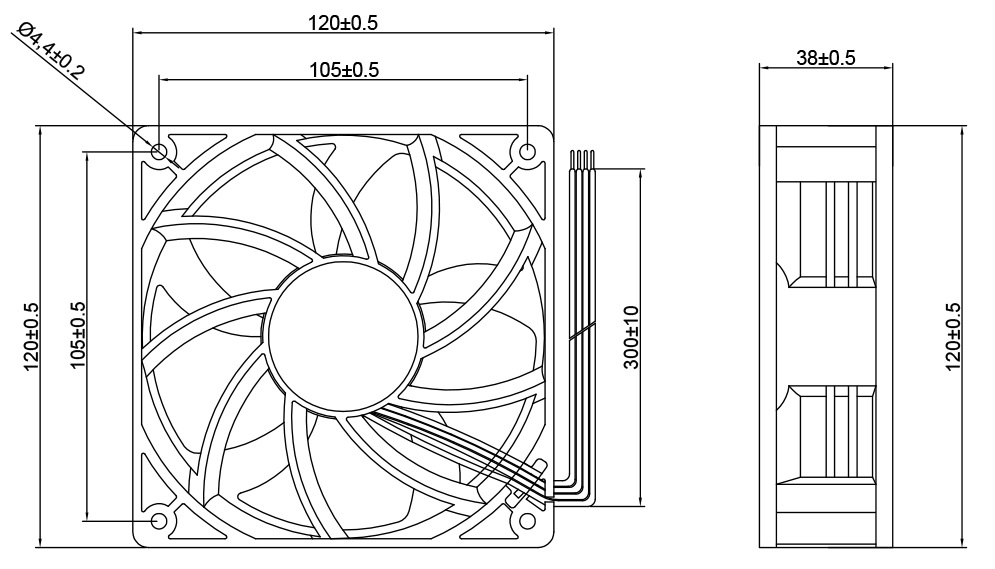

Dimension Drawing
P&Q Curve
