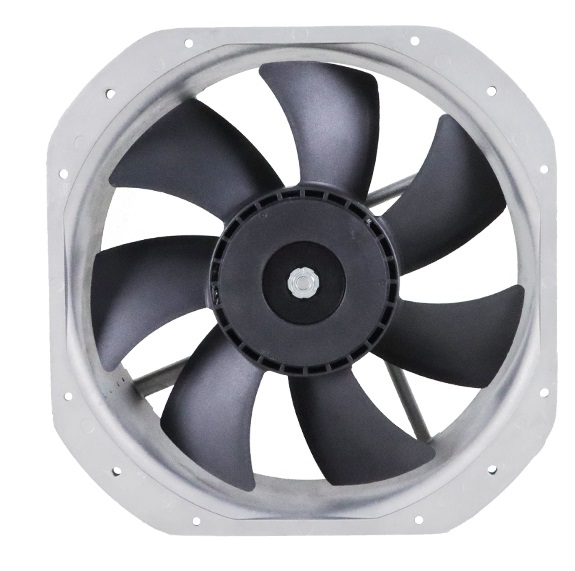

DC Fan
MFD28080
280 x 280 x 80 mm
Airflow
400~1000 CFM
Speed
1000~2800 RPM
Noise
60~85 dB(A)
Product Specifications
| Size | 280 x 280 x 80 mm |
| Voltage | 5V / 12V / 24V / 48V DC |
| Frame | A luminum |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C |

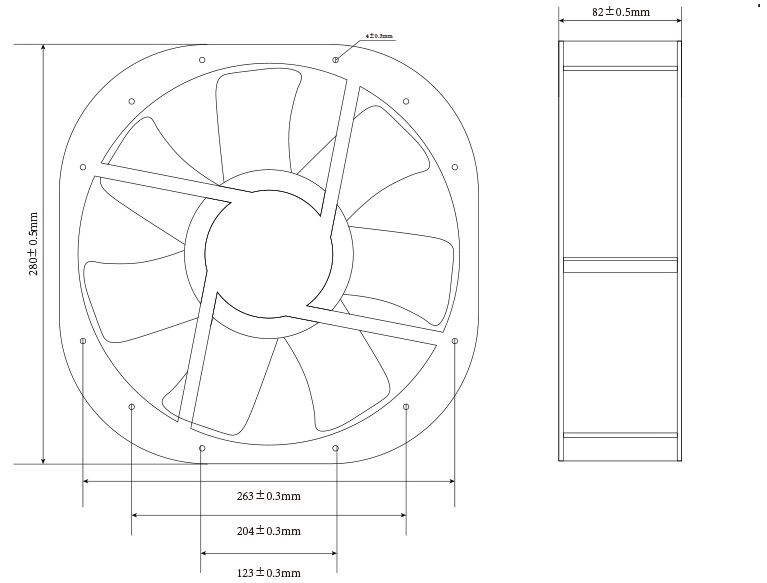

Dimension Drawing

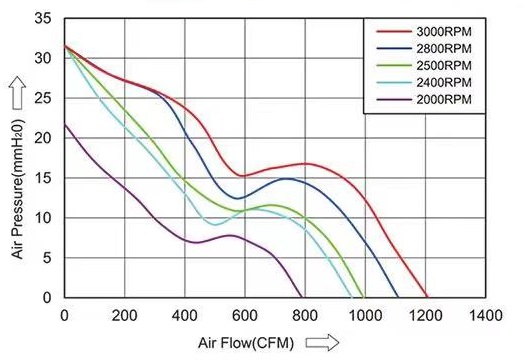

P&Q Curve
