DC Fan
MFD6038
: 60 x 60 x 38mm
Airflow
29.7~51.6 CFM
Speed
6000~10000 RPM
Noise
48.9~62.2 dB(A)
Product Specifications
| Size | : 60 x 60 x 38mm |
| Voltage | 12V / 24V / 48V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated gCe urrent | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD6038D1-LB | 12 | 7 ~ 13.8 | 0.26 | 3.12 | 6000 | 29.7 | 11.48 | 48.9 |
| MFD6038D1-MB | 12 | 7 ~ 13.8 | 0.42 | 5.04 | 7000 | 35.7 | 16.19 | 52.3 |
| MFD6038D1-HB | 12 | 7 ~ 13.8 | 0.6 | 7.2 | 8000 | 41.4 | 21.07 | 56.1 |
| MFD6038D1-LHB | 12 | 7 ~ 13.8 | 0.72 | 8.64 | 9000 | 45.8 | 26.24 | 60.3 |
| MFD6038D1-HHB | 12 | 7 ~ 13.8 | 0.9 | 10.8 | 10000 | 51.6 | 32.75 | 62.2 |
| MFD6038D2-LB | 24 | 18 ~ 26.5 | 0.13 | 3.12 | 6000 | 29.7 | 11.48 | 48.9 |
| MFD6038D2-MB | 24 | 18 ~ 26.5 | 0.21 | 5.04 | 7000 | 35.7 | 16.19 | 52.3 |
| MFD6038D2-HB | 24 | 18 ~ 26.5 | 0.3 | 7.2 | 8000 | 41.4 | 21.07 | 56.1 |
| MFD6038D2-LHB | 24 | 18 ~ 26.5 | 0.36 | 8.64 | 9000 | 45.8 | 26.24 | 60.3 |
| MFD6038D2-HHB | 24 | 18 ~ 26.5 | 0.45 | 10.8 | 10000 | 51.6 | 32.75 | 62.2 |
| MFD6038D4-LB | 48 | 36 ~ 54 | 0.07 | 3.12 | 6000 | 29.7 | 11.48 | 48.9 |
| MFD6038D4-MB | 48 | 36 ~ 54 | 0.1 | 5.04 | 7000 | 35.7 | 16.19 | 52.3 |
| MFD6038D4-HB | 48 | 36 ~ 54 | 0.15 | 7.2 | 8000 | 41.4 | 21.07 | 56.1 |
| MFD6038D4-LHB | 48 | 36 ~ 54 | 0.18 | 8.64 | 9000 | 45.8 | 26.24 | 60.3 |
| MFD6038D4-HHB | 48 | 36 ~ 54 | 0.225 | 10.8 | 10000 | 51.6 | 32.75 | 62.2 |

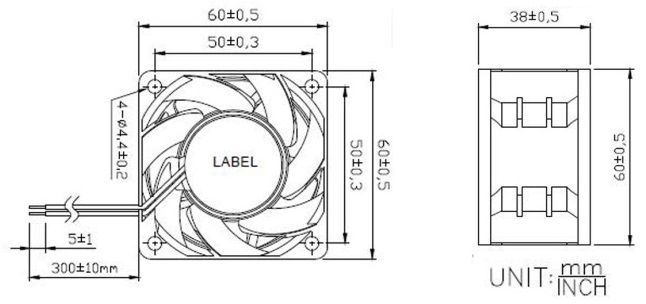

Dimension Drawing

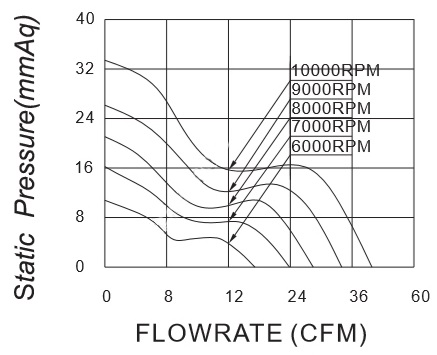

P&Q Curve
