DC Fan
MFD8032
80 x 80 x 32 mm
Airflow
49.9~107.1 CFM
Speed
4000~8500 RPM
Noise
46.8~63.5 dB(A)
Product Specifications
| Size | 80 x 80 x 32 mm |
| Voltage | 5V / 12V / 24V / 48V DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Voltage (V) | Current (A) | Power (W) | Speed (RPM) | Airflow (CFM) | Pressure (mmH₂O) | Noise (dB-A) | Bearing |
|---|---|---|---|---|---|---|---|---|
| MFD8032D1-HB | 12 | 0.96 | 11.5 | 6000 | 75.5 | 16.78 | 52 | Ball |
| MFD8032D1-HHB | 12 | 1.24 | 14.9 | 7000 | 88.93 | 22.39 | 54.2 | Ball |
| MFD8032D1-HVB | 12 | 1.84 | 22.1 | 8500 | 107.13 | 32.9 | 63.5 | Ball |
| MFD8032D1-LB | 12 | 0.4 | 4.8 | 4000 | 49.89 | 8.51 | 46.8 | Ball |
| MFD8032D1-LS | 12 | 0.4 | 4.8 | 4000 | 49.89 | 8.51 | 46.8 | Sleeve |
| MFD8032D1-MB | 12 | 0.68 | 8.16 | 5000 | 61.29 | 11.63 | 50.3 | Ball |
| MFD8032D1-VHB | 12 | 1.51 | 18.2 | 8500 | 100.8 | 29.53 | 61.2 | Ball |
| MFD8032D2-HB | 24 | 0.48 | 11.5 | 6000 | 75.5 | 16.78 | 52 | Ball |
| MFD8032D2-HHB | 24 | 0.62 | 14.9 | 7000 | 88.93 | 22.39 | 54.2 | Ball |
| MFD8032D2-HVB | 24 | 0.92 | 22.1 | 8500 | 107.13 | 32.9 | 63.5 | Ball |
| MFD8032D2-LB | 24 | 0.2 | 4.8 | 4000 | 49.89 | 8.51 | 46.8 | Ball |
| MFD8032D2-LS | 24 | 0.2 | 4.8 | 4000 | 49.89 | 8.51 | 46.8 | Sleeve |
| MFD8032D2-MB | 24 | 0.34 | 8.16 | 5000 | 61.29 | 11.63 | 50.3 | Ball |
| MFD8032D2-VHB | 24 | 0.76 | 18.2 | 8500 | 100.8 | 29.53 | 61.2 | Ball |
| MFD8032D4-HB | 48 | 0.24 | 11.5 | 6000 | 75.5 | 16.78 | 52 | Ball |
| MFD8032D4-HHB | 48 | 0.31 | 14.9 | 7000 | 88.93 | 22.39 | 54.2 | Ball |
| MFD8032D4-HVB | 48 | 0.46 | 22.1 | 8500 | 107.13 | 32.9 | 63.5 | Ball |
| MFD8032D4-LB | 48 | 0.1 | 4.8 | 4000 | 49.89 | 8.51 | 46.8 | Ball |
| MFD8032D4-LS | 48 | 0.1 | 4.8 | 4000 | 49.89 | 8.51 | 46.8 | Sleeve |
| MFD8032D4-MB | 48 | 0.17 | 8.16 | 5000 | 61.29 | 11.63 | 50.3 | Ball |
| MFD8032D4-VHB | 48 | 0.38 | 18.2 | 8500 | 100.8 | 29.53 | 61.2 | Ball |

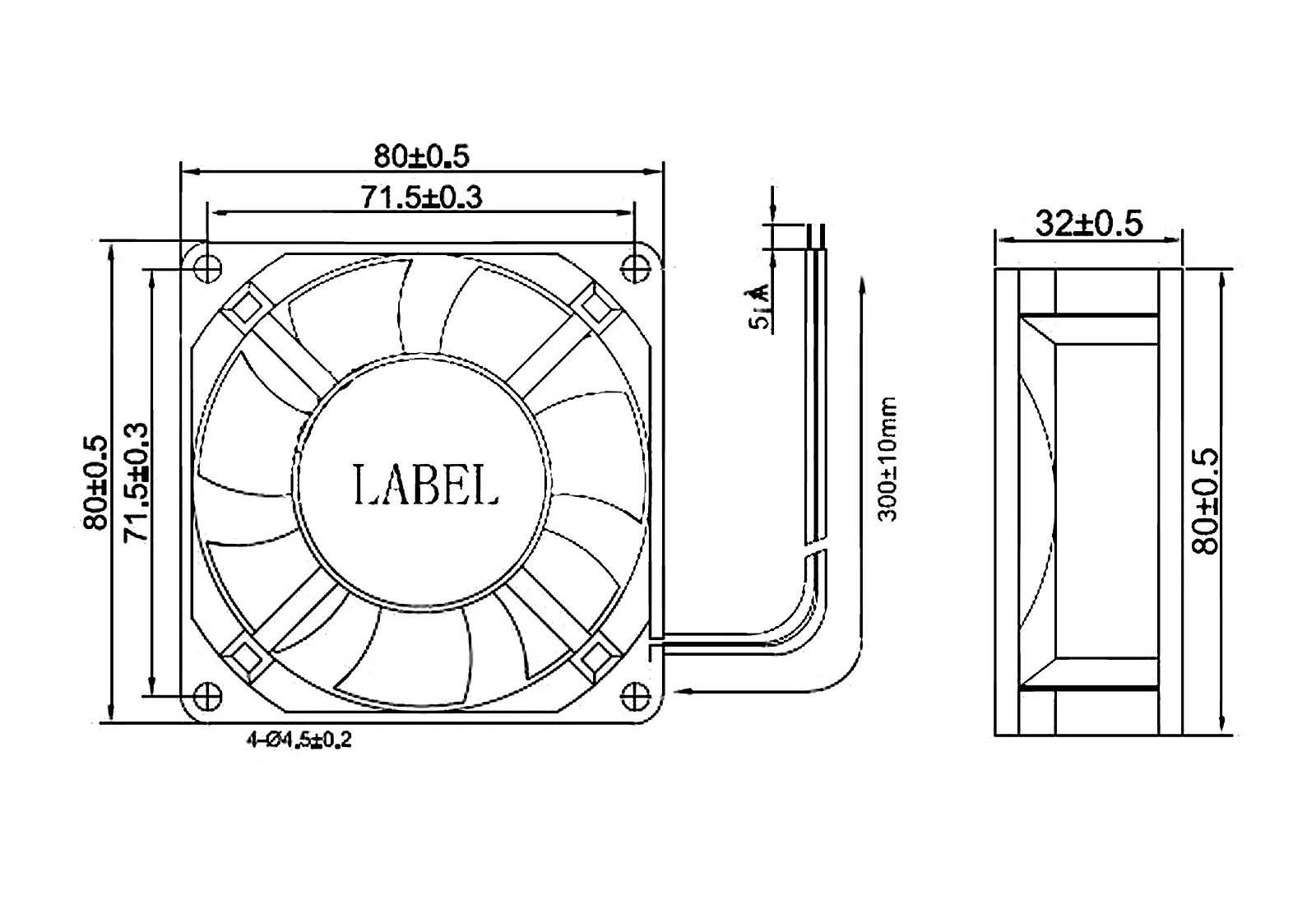

Dimension Drawing

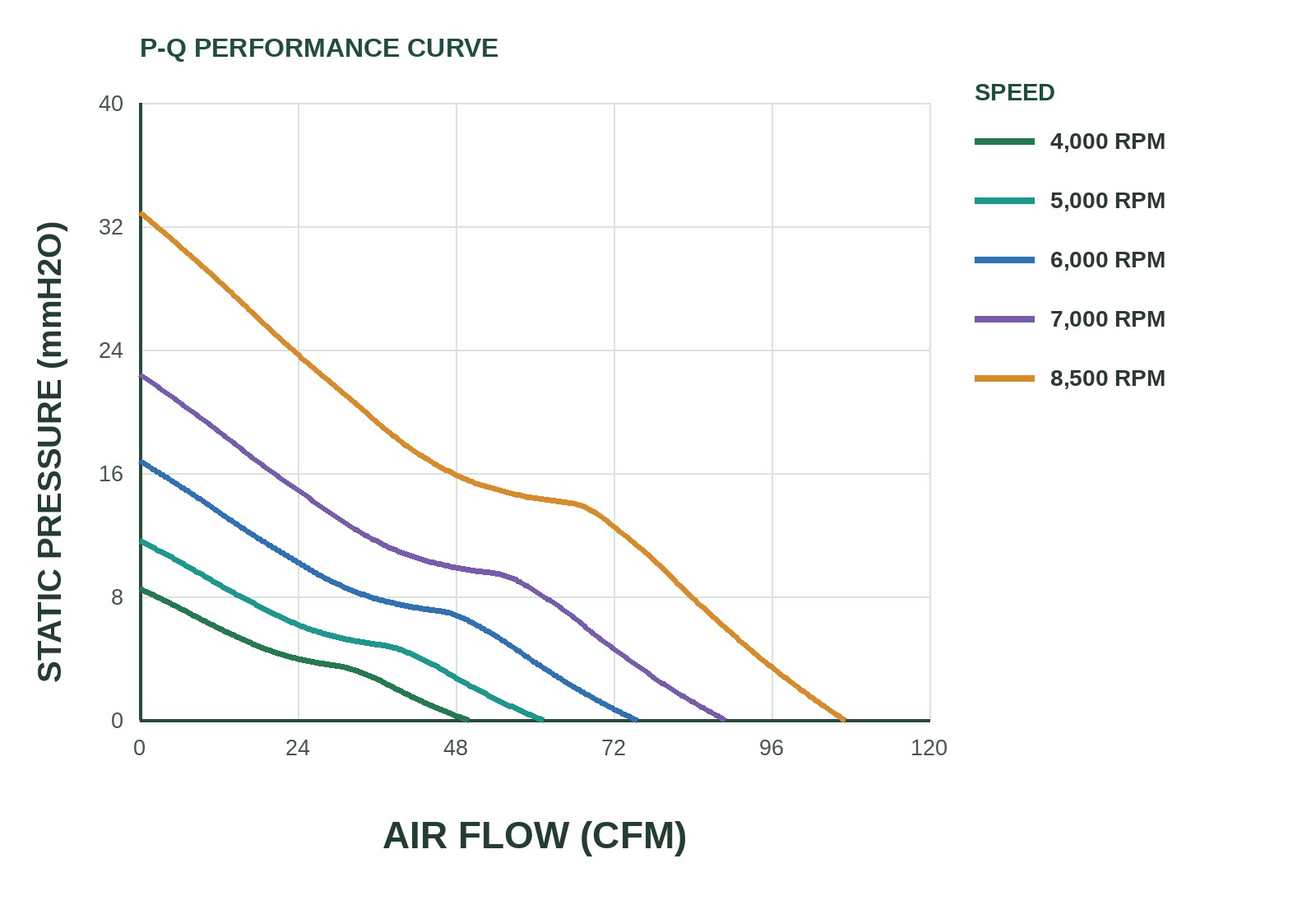

P&Q Curve
