DC Fan
MFD12025B
: 120 x 120 x 25mm
IP68
Airflow
54.2~121.1 CFM
Speed
2000~4500 RPM
Noise
33.3~57.1 dB(A)
Product Specifications
| Size | 120 x 120 x 25 mm |
| Voltage | 12V / 24V / 48V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Voltage (V) | Current (A) | Power (W) | Speed (RPM) | Airflow (CFM) | Pressure (mmH₂O) | Noise (dB-A) | Bearing |
|---|---|---|---|---|---|---|---|---|
| MFD12025BD1-HB | 12 | 0.5 | 6 | 3000 | 82.86 | 5.92 | 46.1 | Ball |
| MFD12025BD1-HHB | 12 | 0.6 | 7.2 | 3500 | 95.13 | 7.56 | 50.6 | Ball |
| MFD12025BD1-HS | 12 | 0.5 | 6 | 3000 | 82.86 | 5.92 | 46.1 | Sleeve |
| MFD12025BD1-HVB | 12 | 0.8 | 9.6 | 4500 | 121.06 | 11.31 | 57.1 | Ball |
| MFD12025BD1-LB | 12 | 0.3 | 3.6 | 2000 | 54.19 | 2.81 | 33.3 | Ball |
| MFD12025BD1-LS | 12 | 0.3 | 3.6 | 2000 | 54.19 | 2.81 | 33.3 | Sleeve |
| MFD12025BD1-MB | 12 | 0.4 | 4.8 | 2500 | 67.49 | 4.26 | 41.3 | Ball |
| MFD12025BD1-MS | 12 | 0.4 | 4.8 | 2500 | 67.49 | 4.26 | 41.3 | Sleeve |
| MFD12025BD1-VHB | 12 | 0.7 | 8.4 | 4000 | 108.29 | 9.43 | 53 | Ball |
| MFD12025BD2-HB | 24 | 0.25 | 6 | 3000 | 82.86 | 5.92 | 46.1 | Ball |
| MFD12025BD2-HHB | 24 | 0.3 | 7.2 | 3500 | 95.13 | 7.56 | 50.6 | Ball |
| MFD12025BD2-HS | 24 | 0.25 | 6 | 3000 | 82.86 | 5.92 | 46.1 | Sleeve |
| MFD12025BD2-HVB | 24 | 0.4 | 9.6 | 4500 | 121.06 | 11.31 | 57.1 | Ball |
| MFD12025BD2-LB | 24 | 0.15 | 3.6 | 2000 | 54.19 | 2.81 | 33.3 | Ball |
| MFD12025BD2-LS | 24 | 0.15 | 3.6 | 2000 | 54.19 | 2.81 | 33.3 | Sleeve |
| MFD12025BD2-MB | 24 | 0.2 | 4.8 | 2500 | 67.49 | 4.26 | 41.3 | Ball |
| MFD12025BD2-MS | 24 | 0.2 | 4.8 | 2500 | 67.49 | 4.26 | 41.3 | Sleeve |
| MFD12025BD2-VHB | 24 | 0.35 | 8.4 | 4000 | 108.29 | 9.43 | 53 | Ball |
| MFD12025BD4-HB | 48 | 0.12 | 6 | 3000 | 82.86 | 5.92 | 46.1 | Ball |
| MFD12025BD4-HHB | 48 | 0.15 | 7.2 | 3500 | 95.13 | 7.56 | 50.6 | Ball |
| MFD12025BD4-HS | 48 | 0.12 | 6 | 3000 | 82.86 | 5.92 | 46.1 | Sleeve |
| MFD12025BD4-HVB | 48 | 0.2 | 9.6 | 4500 | 121.06 | 11.31 | 57.1 | Ball |
| MFD12025BD4-LB | 48 | 0.07 | 3.6 | 2000 | 54.19 | 2.81 | 33.3 | Ball |
| MFD12025BD4-LS | 48 | 0.07 | 3.6 | 2000 | 54.19 | 2.81 | 33.3 | Sleeve |
| MFD12025BD4-MB | 48 | 0.1 | 4.8 | 2500 | 67.49 | 4.26 | 41.3 | Ball |
| MFD12025BD4-MS | 48 | 0.1 | 4.8 | 2500 | 67.49 | 4.26 | 41.3 | Sleeve |
| MFD12025BD4-VHB | 48 | 0.17 | 8.4 | 4000 | 108.29 | 9.43 | 53 | Ball |
Dimension Drawing

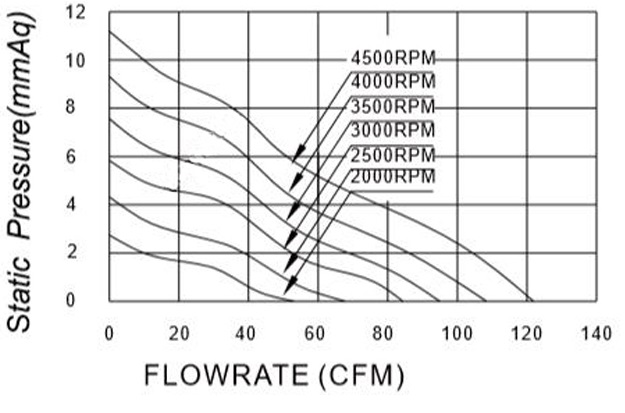

P&Q Curve
