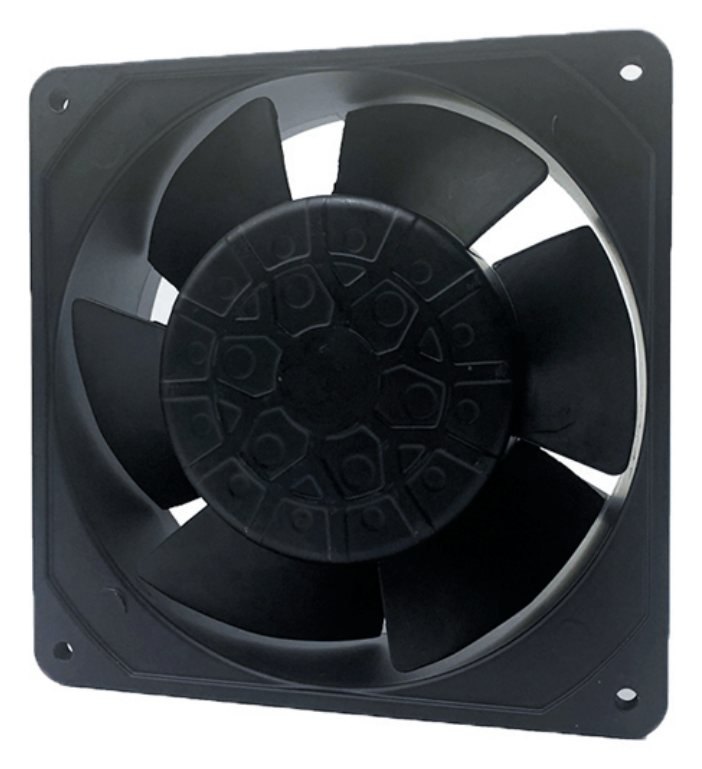

AC Axial Fan
MF14050
140 x 140 x 50 mm
Airflow
125.39~140.58 CFM
Speed
2800~3200 RPM
Noise
45.6~50.8 dB(A)
Product Specifications
| Size | 140 x 140 x 50 mm |
| Voltage | 110 / 220 VAC, 50/60 Hz |
| Motor | AC Motor |
| Frame | Aluminum Die-Cast |
| Impeller | Aluminum alloy impeller |
| Bearing Type | Ball Bearing |
| Weight | 353 g |
Part Number & Specifications
| Model | Rated Voltage (V) | Frequency (Hz) | Current (A) | Input Power (W) | Speed (RPM) | Airflow (CFM) | Static Pressure (inch-H₂O) | Noise (dB-A) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| MF14050A1-HBAAL | 110/120 | 50/60 | 0.36* | 34 | 3200 | 140.58 | 0.572 | 50.8 | 353 |
| MF14050A1-MBAAL | 110/120 | 50/60 | 0.4* | 30 | 2800 | 125.39 | 0.518 | 45.6 | 353 |
| MF14050A2-HBAAL | 220/240 | 50/60 | 0.18 | 34 | 3200 | 140.58 | 0.572 | 50.8 | 353 |
| MF14050A2-MBAAL | 220/240 | 50/60 | 0.20 | 30 | 2800 | 125.39 | 0.518 | 45.6 | 353 |
Specifications subject to change without notice. Specifications are governed by the official approval sheet.
*Current is a design reference scaled from the equivalent voltage rating; production data follows the complete part-number approval sheet.

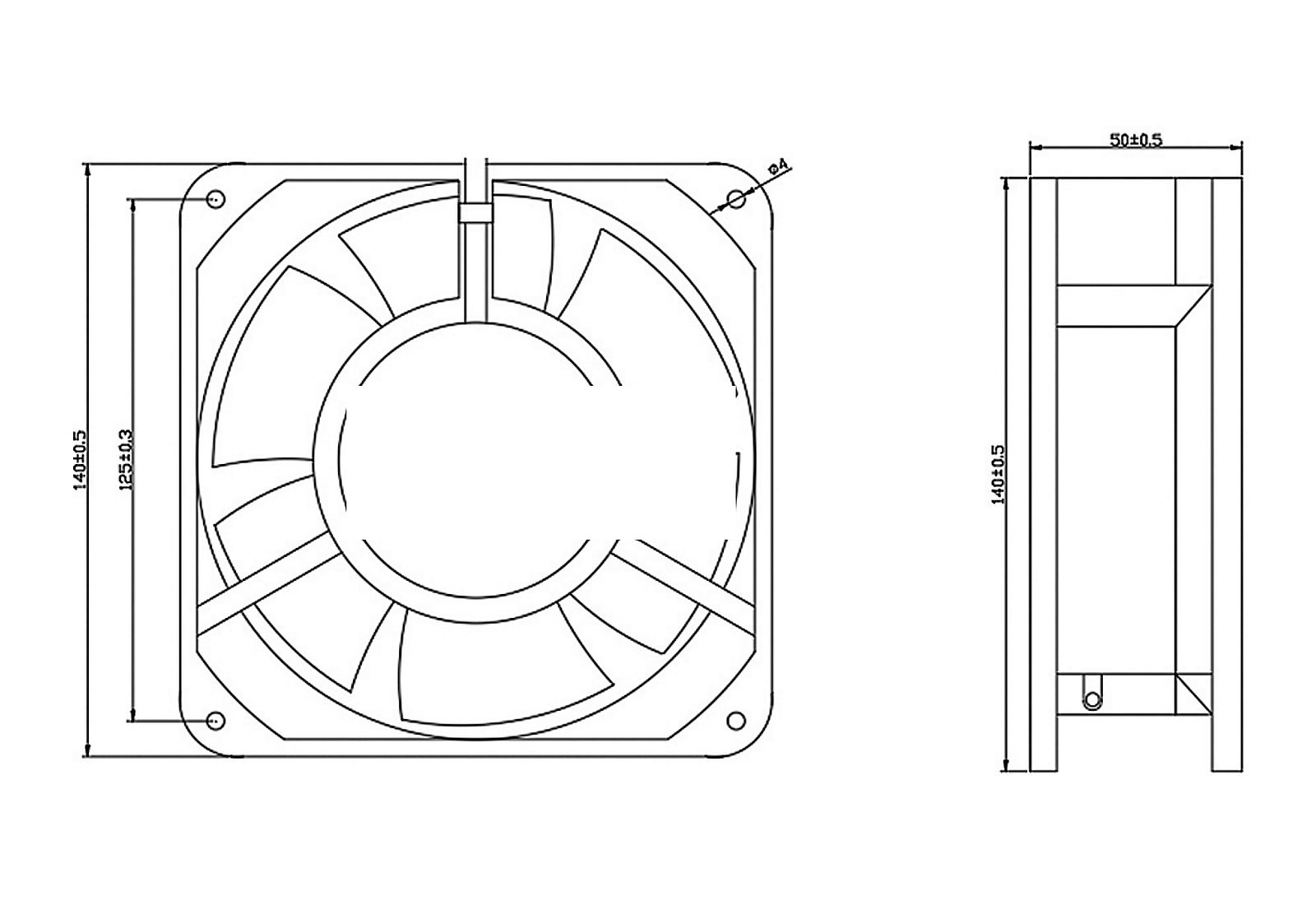

Dimension Drawing

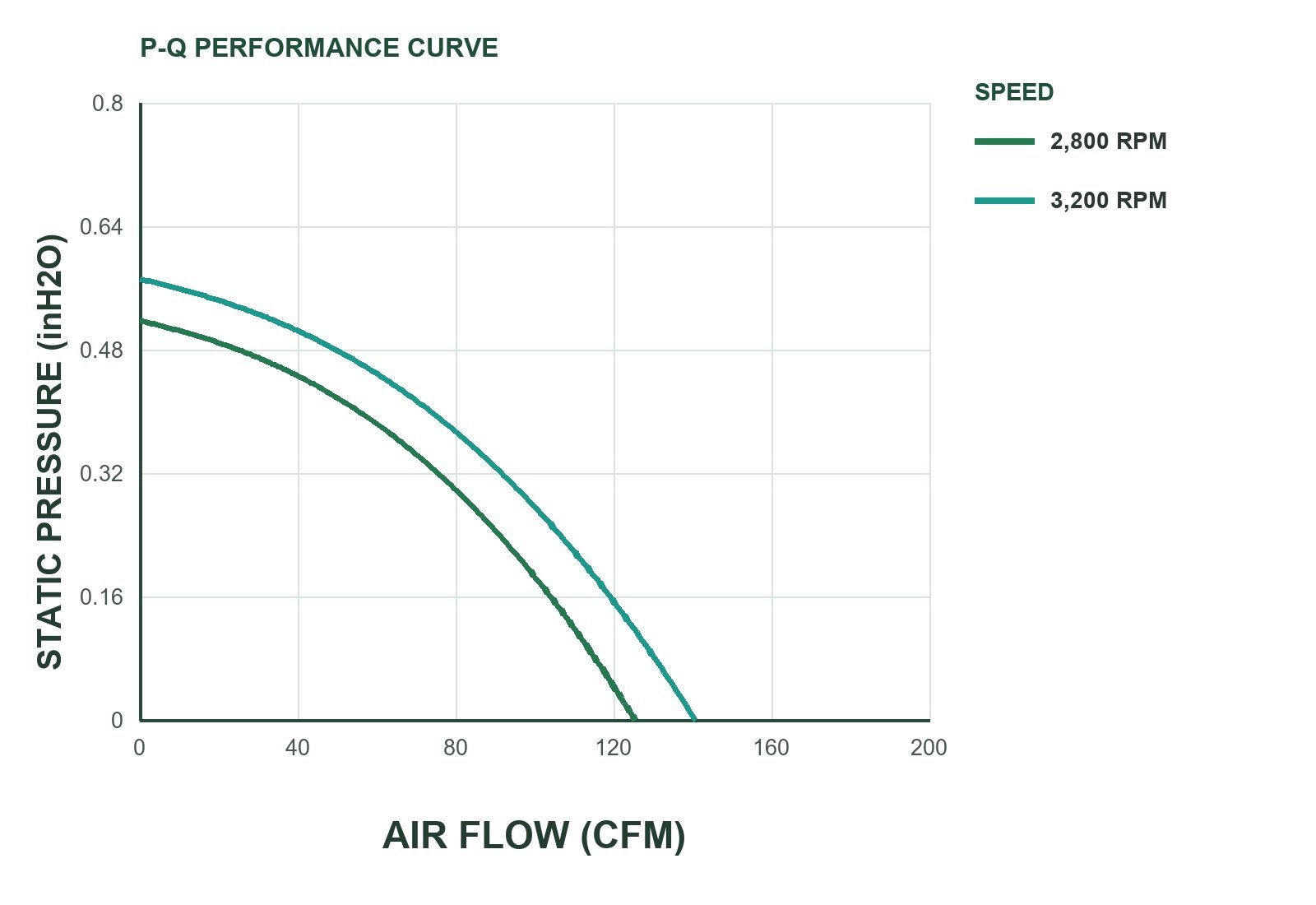

P&Q Curve
Part Number Code
MFSeries
120Frame
38Thickness
A1Voltage
HSpeed
BBearing
AFrame Material
PImpeller
TLead-out
IP55Protection
Example MF12038A1-HBAPT-IP55
From left to right: AC fan series, frame, thickness, single rated voltage, speed, bearing, frame material, impeller, lead-out and protection suffix. AC fans have no signal output option; available combinations follow the complete part-number approval sheet.
From left to right: AC fan series, frame, thickness, single rated voltage, speed, bearing, frame material, impeller, lead-out and protection suffix. AC fans have no signal output option; available combinations follow the complete part-number approval sheet.
MF
AC Axial Fan
120 / 38
120mm frame, 38mm thickness
Voltage
A1110 / 120 VAC
A2220 / 240 VAC
A3380 / 440 VAC
Speed
LLow speed
MMedium speed
HHigh speed
Bearing
BBall Bearing
SSleeve Bearing
A
Aluminum die-cast frame
P / A
PBT + 30% glass-fibre impeller / aluminum-magnesium alloy impeller
SQ
Identifies the square 172 × 172 frame, distinct from the 172 × 150 frame
T / L
Terminal connector / flying leads; the lead-out type follows the complete part number
-IP55
IP55 water-protected type (IPX7 also available)
Some models carry additional custom suffixes (lead length, connector type, ingress protection, etc.);
Please confirm the complete part number with our sales team before ordering.
