AC Axial Fan
MF17251
172 x 150 x 51 mm (6.77 x 5.91 x 2.01 inch)
Airflow
145~220 CFM
Speed
2300~3100 RPM
Noise
53~59 dB(A)
Product Specifications
| Size | 172 x 150 x 51 mm (6.77 x 5.91 x 2.01 inch) |
| Voltage | 110V / 220V / 380V AC, 50/60Hz |
| Motor | Shaded Pole |
| Frame | Aluminum Die-Cost |
| Impeller | PBT + 30% Fiber Glass. UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: Within -20 ~ 80°C / Sleeve Bearing: Within -10 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 60°C / Sleeve Bearing: 30,000 hours at 40°C |
Part Number & Specifications
| Part No. | Bearing | Rated Voltage (V) | Frequency (Hz) | Current (A) | Input Power (W) | Speed (RPM) | Airflow (CFM) | Static Pressure (inch-H₂O) | Noise (dB-A) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| MF17251A1-HBAPL | Ball | 110/120 | 50/60 | 0.55/0.48 | 45/52 | 2800/3100 | 190/220 | 0.55/0.72 | 53/59 | 920 |
| MF17251A1-HBAPT | Ball | 110/120 | 50/60 | 0.55/0.48 | 45/52 | 2800/3100 | 190/220 | 0.55/0.72 | 53/59 | 920 |
| MF17251A1-HSAPL | Sleeve | 110/120 | 50/60 | 0.55/0.48 | 45/52 | 2800/3100 | 190/220 | 0.55/0.72 | 53/59 | 920 |
| MF17251A1-HSAPT | Sleeve | 110/120 | 50/60 | 0.55/0.48 | 45/52 | 2800/3100 | 190/220 | 0.55/0.72 | 53/59 | 920 |
| MF17251DV-HBAPL | Ball | 110/120, 220/240 | 50/60 | 0.55/0.48 (110V) ; 0.35/0.28 (220V) | 45/52 | 2800/3100 | 190/220 | 0.55/0.72 | 53/59 | 920 |
| MF17251DV-HBAPT | Ball | 110/120, 220/240 | 50/60 | 0.55/0.48 (110V) ; 0.35/0.28 (220V) | 45/52 | 2800/3100 | 190/220 | 0.55/0.72 | 53/59 | 920 |
| MF17251DV-HSAPL | Sleeve | 110/120, 220/240 | 50/60 | 0.55/0.48 (110V) ; 0.35/0.28 (220V) | 45/52 | 2800/3100 | 190/220 | 0.55/0.72 | 53/59 | 920 |
| MF17251DV-HSAPT | Sleeve | 110/120, 220/240 | 50/60 | 0.55/0.48 (110V) ; 0.35/0.28 (220V) | 45/52 | 2800/3100 | 190/220 | 0.55/0.72 | 53/59 | 920 |
| MF17251A2-HBAPL | Ball | 220/240 | 50/60 | 0.35/0.28 | 45/52 | 2800/3100 | 190/220 | 0.55/0.72 | 53/59 | 920 |
| MF17251A2-HBAPT | Ball | 220/240 | 50/60 | 0.35/0.28 | 45/52 | 2800/3100 | 190/220 | 0.55/0.72 | 53/59 | 920 |
| MF17251A2-HSAPL | Sleeve | 220/240 | 50/60 | 0.35/0.28 | 45/52 | 2800/3100 | 190/220 | 0.55/0.72 | 53/59 | 920 |
| MF17251A2-HSAPT | Sleeve | 220/240 | 50/60 | 0.35/0.28 | 45/52 | 2800/3100 | 190/220 | 0.55/0.72 | 53/59 | 920 |

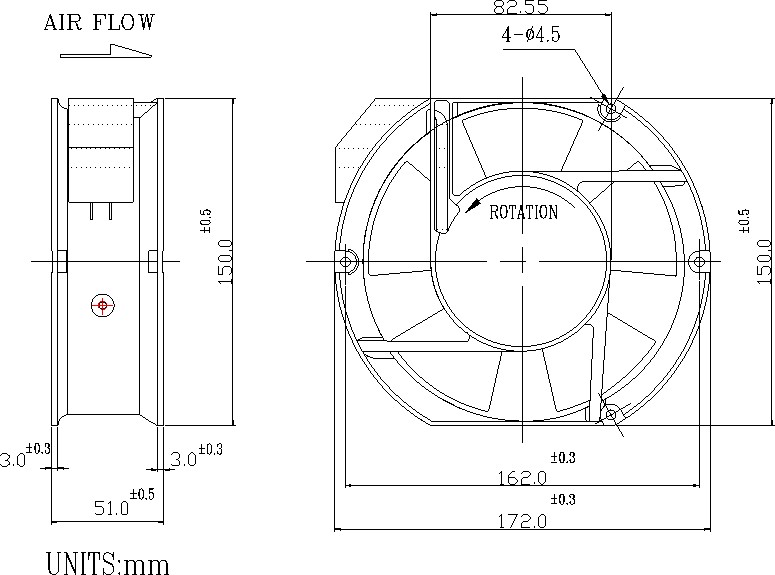

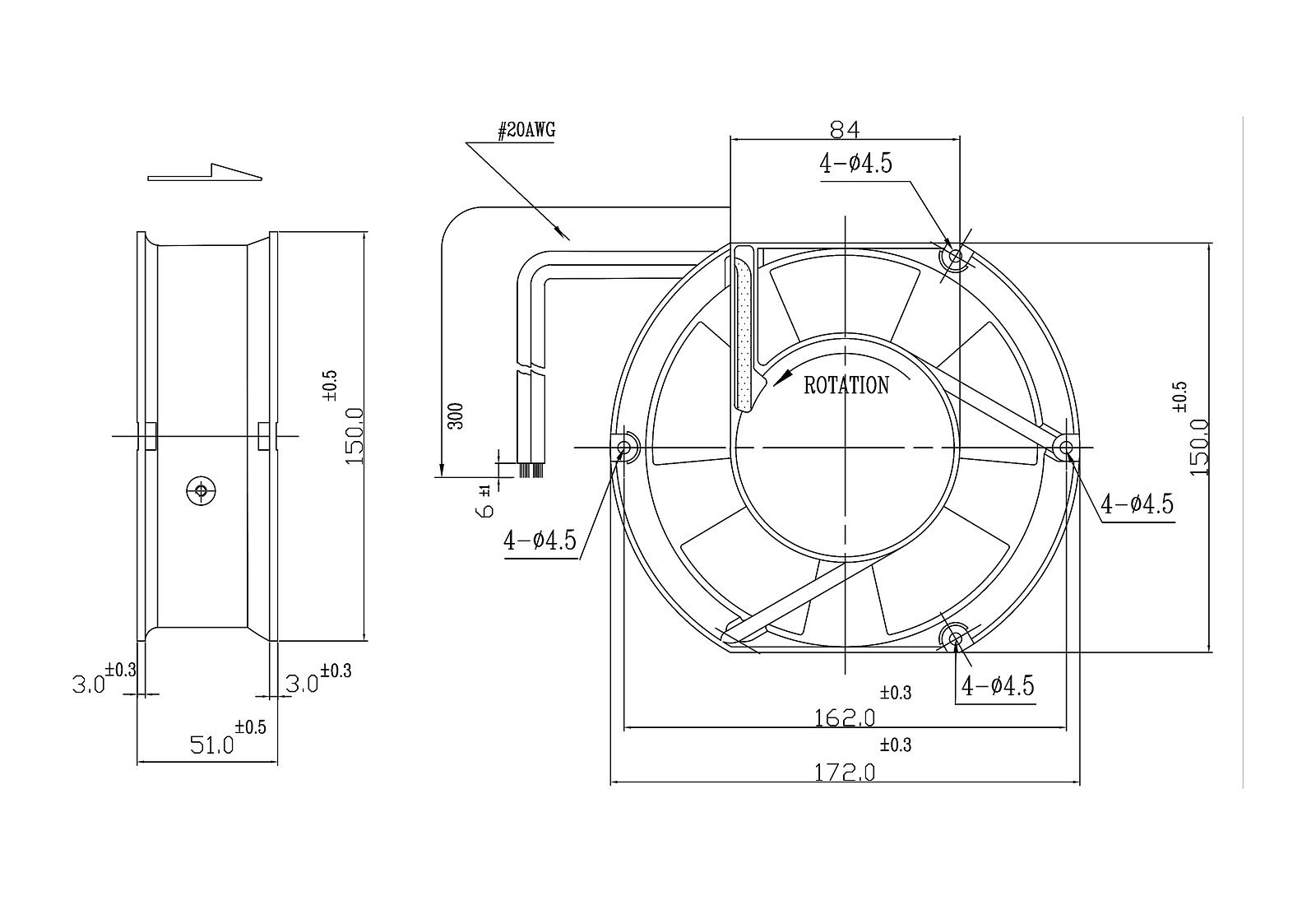

Dimension Drawing

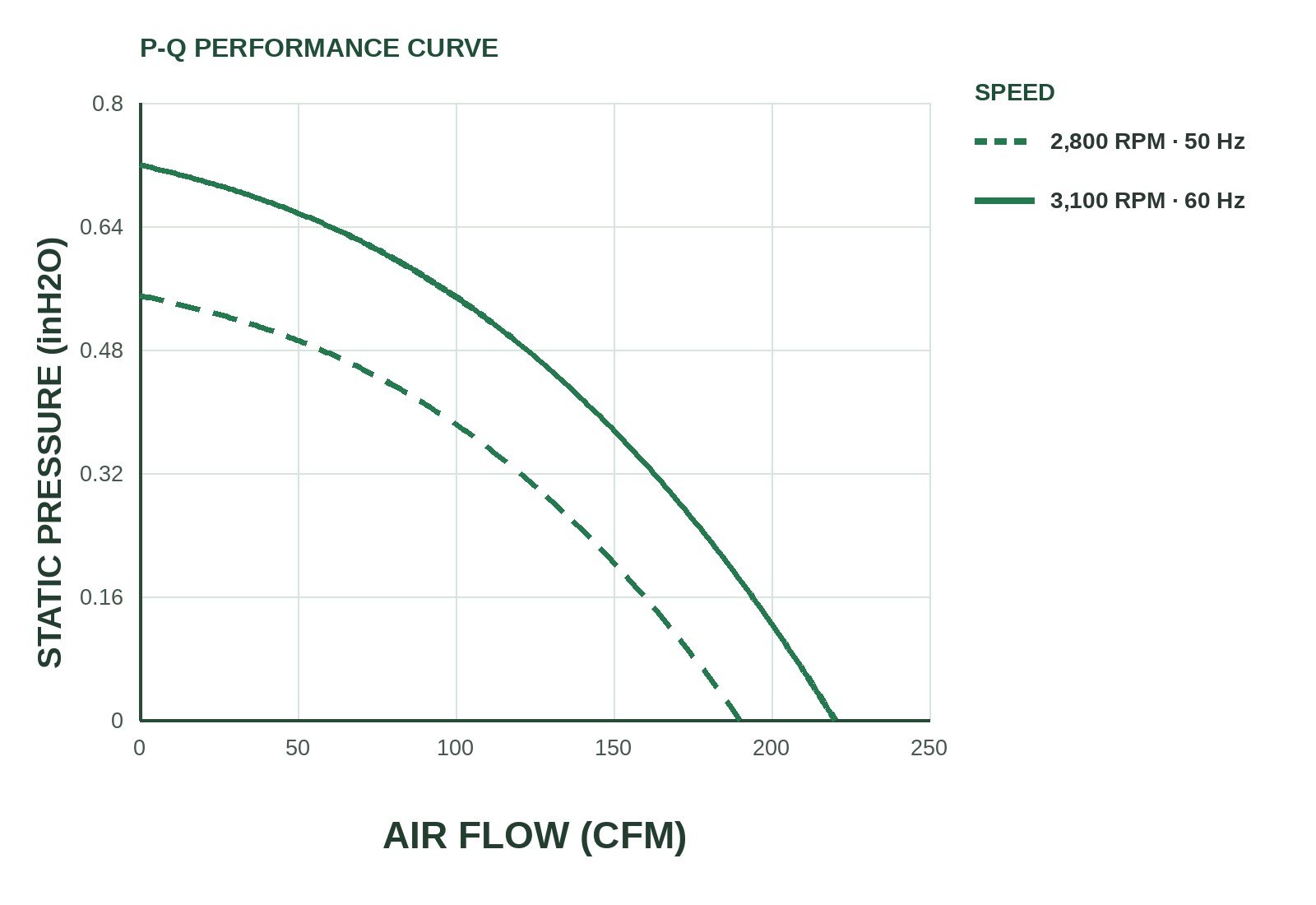

P&Q Curve
