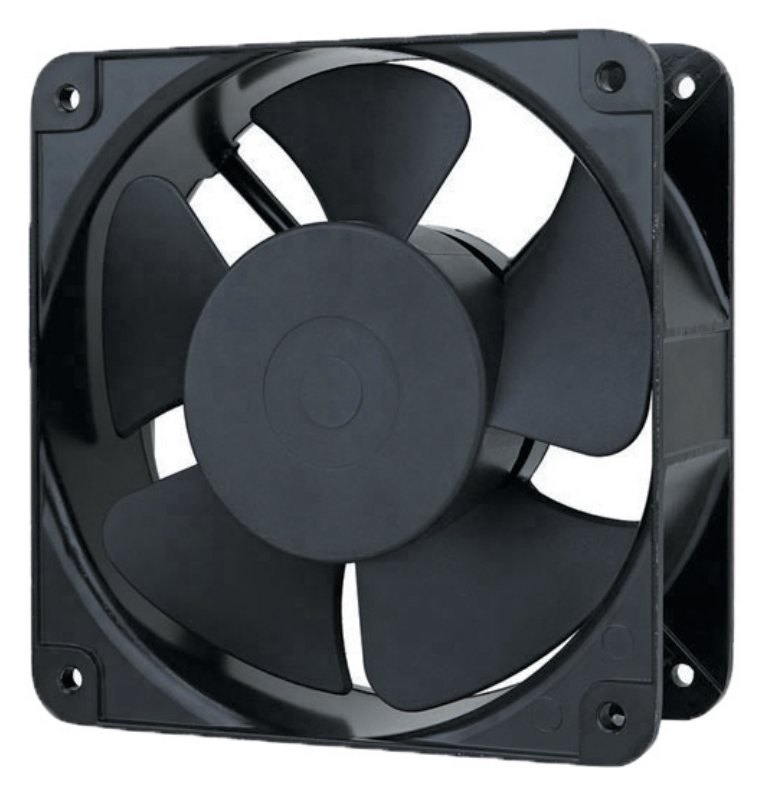

AC Axial Fan
MF18060
180 x 180 x 60 mm
Airflow
137~196 CFM
Speed
2100~3000 RPM
Noise
39~56 dB(A)
Product Specifications
| Size | 180 x 180 x 60 mm |
| Voltage | 110 / 220 / 380 VAC, 50/60 Hz |
| Motor | AC Motor |
| Frame | Aluminum Die-Cast |
| Impeller | Engineering Plastic (UL94V-0) |
| Bearing Type | Ball Bearing |
| Weight | 950 g |
Part Number & Specifications
| Model | Rated Voltage (V) | Frequency (Hz) | Current (A) | Input Power (W) | Speed (RPM) | Airflow (CFM) | Static Pressure (inch-H₂O) | Noise (dB-A) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| MF18060A1-HBAPL | 110/120 | 50/60 | 0.46* | 38/36 | 2600/3000 | 170/196 | 0.45/0.55 | 49/56 | 950 |
| MF18060A1-LBAPL | 110/120 | 50/60 | — | 21/20 | 2100/2400 | 137/155 | 0.12/0.15 | 39/45 | 950 |
| MF18060A2-HBAPL | 220/240 | 50/60 | 0.23 | 38/36 | 2600/3000 | 170/196 | 0.45/0.55 | 49/56 | 950 |
| MF18060A2-LBAPL | 220/240 | 50/60 | — | 21/20 | 2100/2400 | 137/155 | 0.12/0.15 | 39/45 | 950 |
| MF18060A3-HBAPL | 380/400 | 50/60 | 0.13 | 38/36 | 2600/3000 | 170/196 | 0.45/0.55 | 49/56 | 950 |
Specifications subject to change without notice. Specifications are governed by the official approval sheet.
*Current is a design reference scaled from the equivalent voltage rating; production data follows the complete part-number approval sheet.

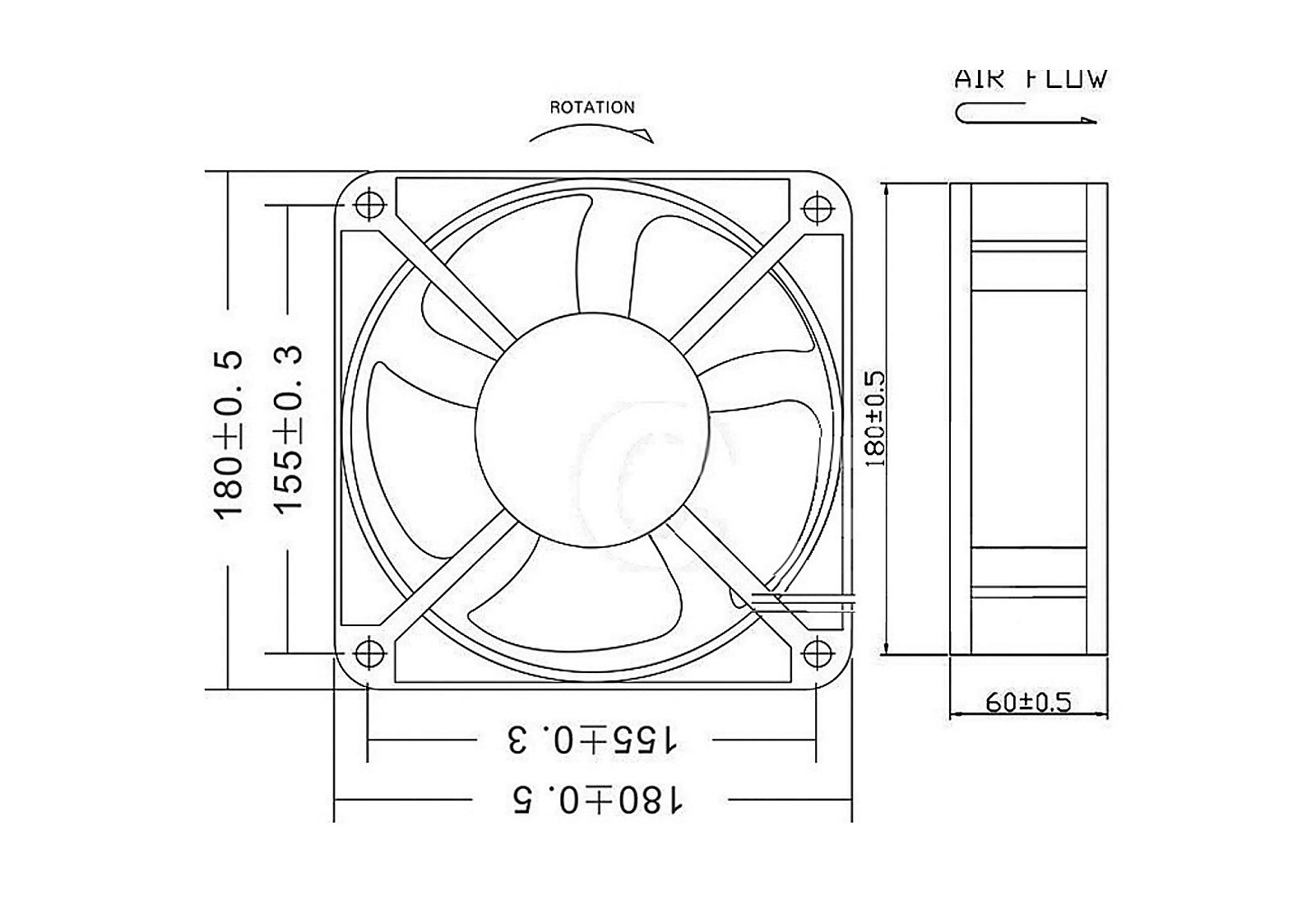

Dimension Drawing

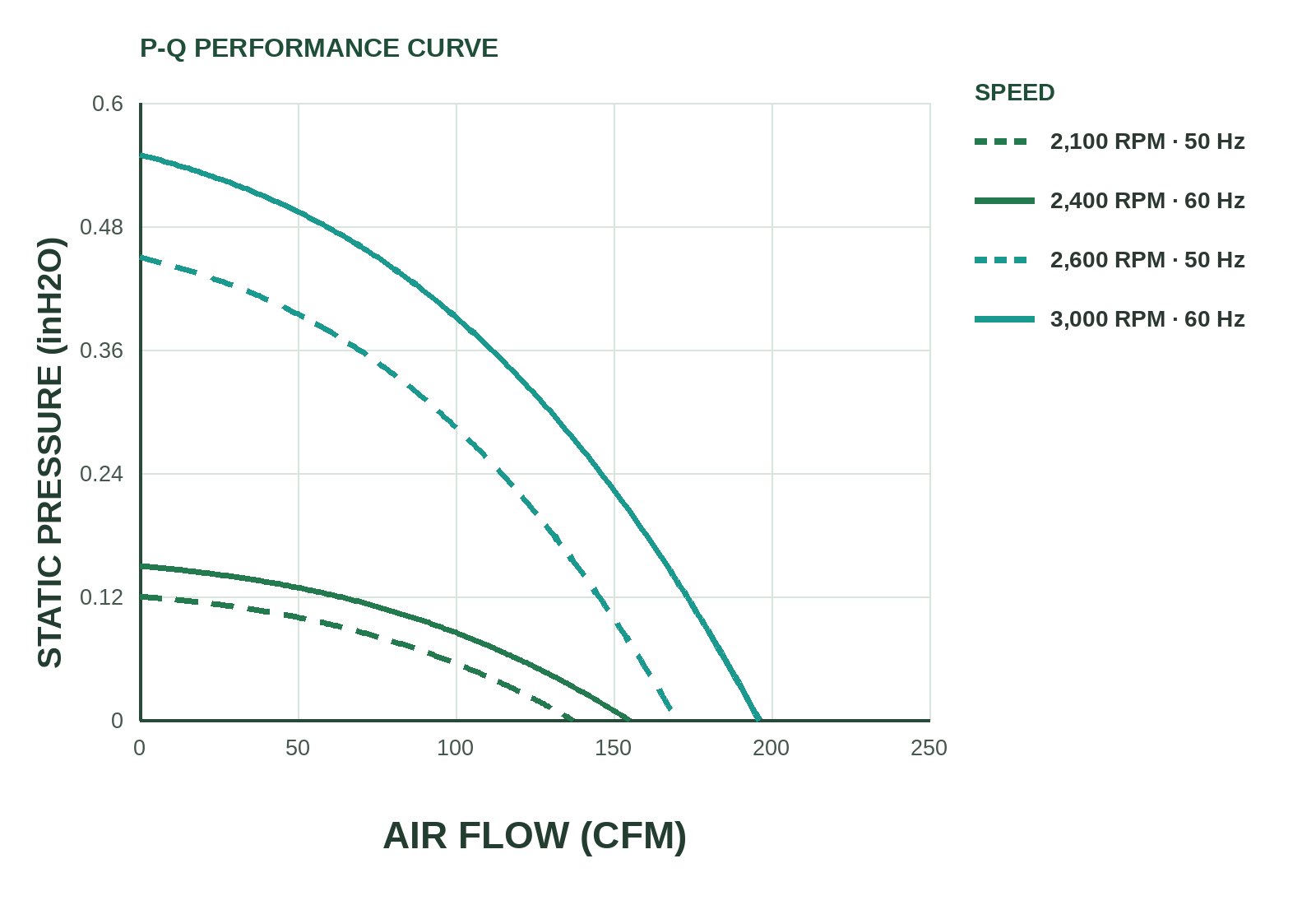

P&Q Curve
