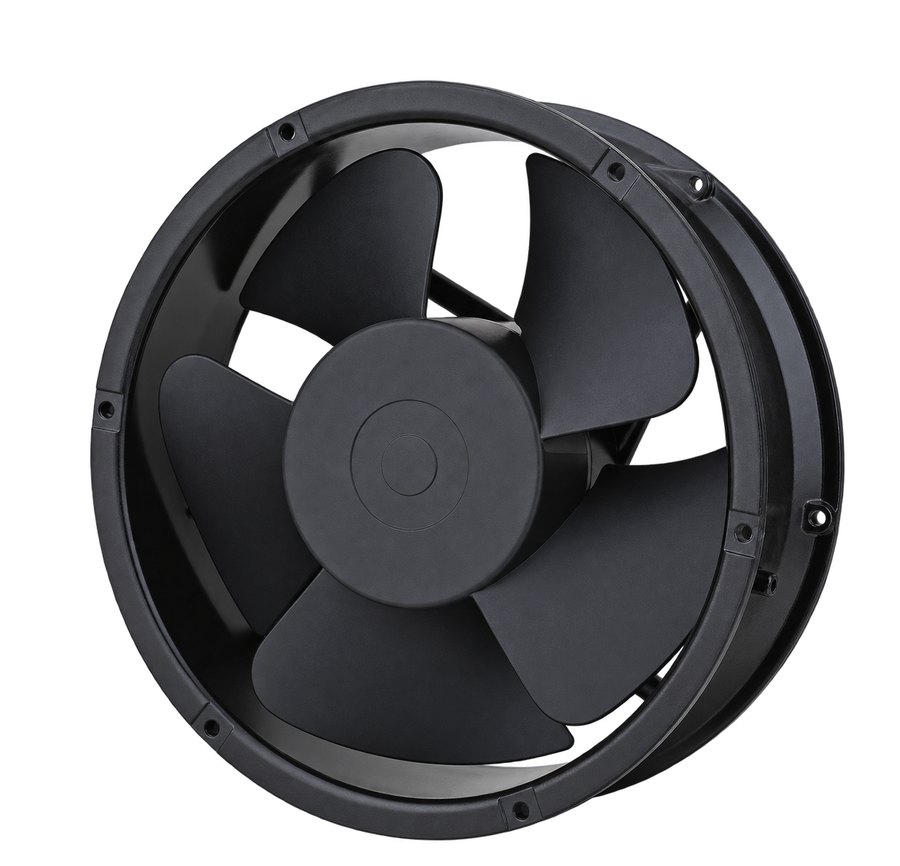

AC Axial Fan
MF22060
220 x 220 x 60 mm
Airflow
388~400 CFM
Speed
2400~3200 RPM
Noise
56~66 dB(A)
Product Specifications
| Size | 220 x 220 x 60 mm |
| Voltage | 110 / 220 VAC, 50/60 Hz |
| Motor | AC Motor |
| Frame | Aluminum Die-Cast |
| Impeller | Engineering Plastic (UL94V-0) |
| Bearing Type | Ball Bearing |
| Weight | 2374 g |
Part Number & Specifications
| Model | Rated Voltage (V) | Frequency (Hz) | Current (A) | Input Power (W) | Speed (RPM) | Airflow (CFM) | Static Pressure (inch-H₂O) | Noise (dB-A) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| MF22060A1-HBAPL | 110/120 | 50/60 | 0.52* | 50/60 | 2800/3200 | 400 | 1.1/1.4 | 61/66 | 2374 |
| MF22060A1-LBAPL | 110/120 | 50/60 | 0.76/0.77 | 57/58 | 2400 | 388 | 1.0 | 56 | 2374 |
| MF22060A2-HBAPL | 220/240 | 50/60 | 0.26 | 50/60 | 2800/3200 | 400 | 1.1/1.4 | 61/66 | 2374 |
| MF22060A2-LBAPL | 220/240 | 50/60 | 0.38/0.39* | 57/58 | 2400 | 388 | 1.0 | 56 | 2374 |
Specifications subject to change without notice. Specifications are governed by the official approval sheet.
*Current is a design reference scaled from the equivalent voltage rating; production data follows the complete part-number approval sheet.

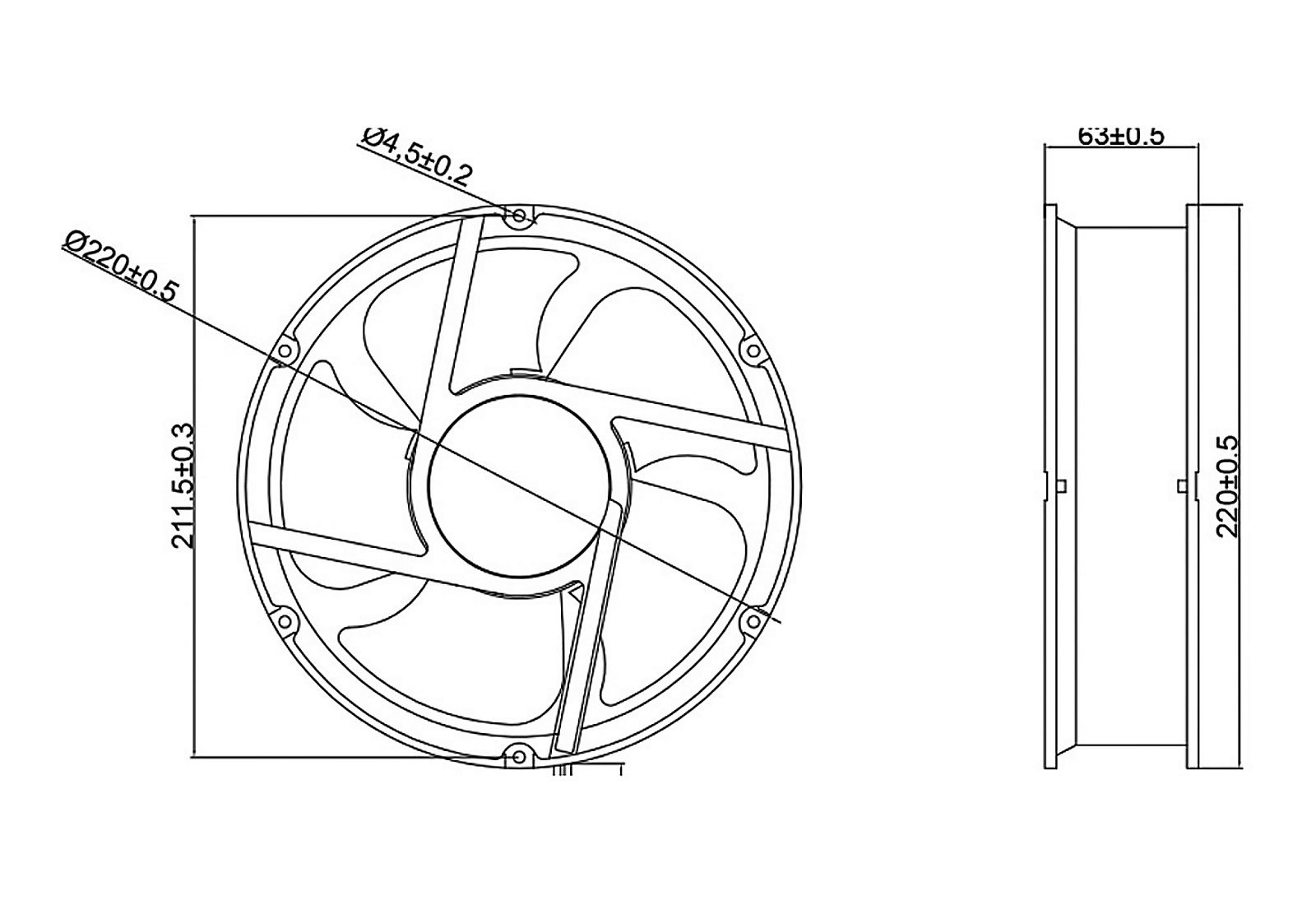

Dimension Drawing

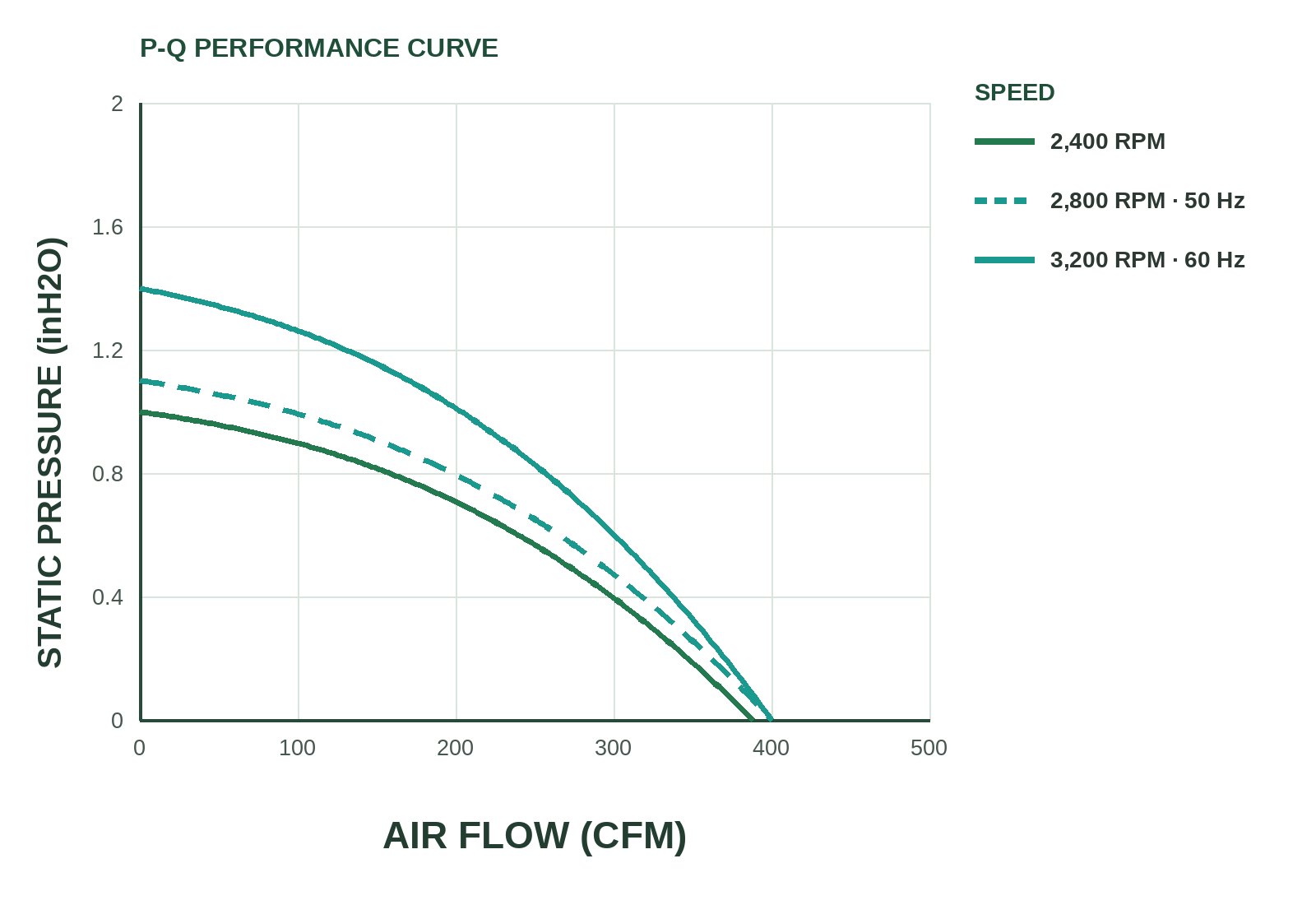

P&Q Curve
