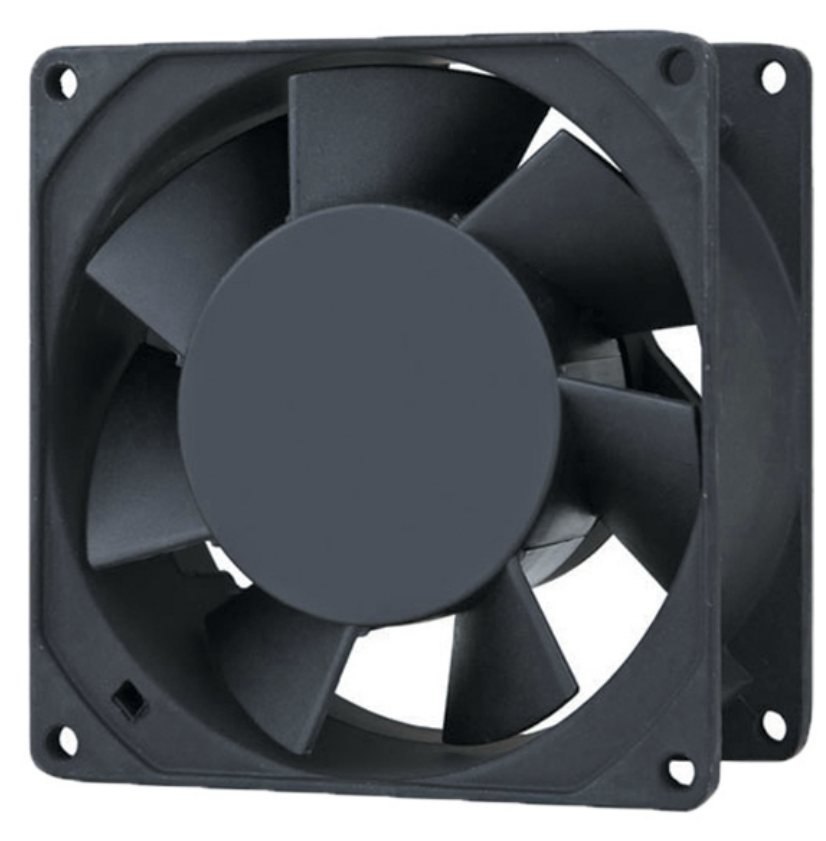

AC Axial Fan
MF9238
92 x 92 x 38 mm
Airflow
23~50 CFM
Speed
1600~2900 RPM
Noise
18~36 dB(A)
Product Specifications
| Size | 92 x 92 x 38 mm |
| Voltage | 110 / 220 VAC, 50/60 Hz |
| Motor | AC Motor |
| Frame | Aluminum Die-Cast |
| Impeller | Engineering Plastic (UL94V-0) |
| Bearing Type | Ball Bearing |
| Weight | 150 g |
Part Number & Specifications
| Model | Rated Voltage (V) | Frequency (Hz) | Current (A) | Input Power (W) | Speed (RPM) | Airflow (CFM) | Static Pressure (inch-H₂O) | Noise (dB-A) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| MF9238A1-HBAPL | 110/120 | 50/60 | 0.16/0.10 | 16/14 | 2400/2900 | 43/50 | 0.17/0.21 | 32/36 | 150 |
| MF9238A1-LBAPL | 110/120 | 50/60 | 0.2* | 10/9 | 1800/1600 | 24/23 | 0.11/0.10 | 20/18 | 150 |
| MF9238A1-MBAPL | 110/120 | 50/60 | 0.13/0.10 | 14/12 | 2200/2400 | 28/32 | 0.13/0.16 | 27/31 | 150 |
| MF9238A2-HBAPL | 220/240 | 50/60 | 0.08/0.05* | 16/14 | 2400/2900 | 43/50 | 0.17/0.21 | 32/36 | 150 |
| MF9238A2-LBAPL | 220/240 | 50/60 | 0.10 | 10/9 | 1800/1600 | 24/23 | 0.11/0.10 | 20/18 | 150 |
| MF9238A2-MBAPL | 220/240 | 50/60 | 0.07/0.05* | 14/12 | 2200/2400 | 28/32 | 0.13/0.16 | 27/31 | 150 |
Specifications subject to change without notice. Specifications are governed by the official approval sheet.
*Current is a design reference scaled from the equivalent voltage rating; production data follows the complete part-number approval sheet.

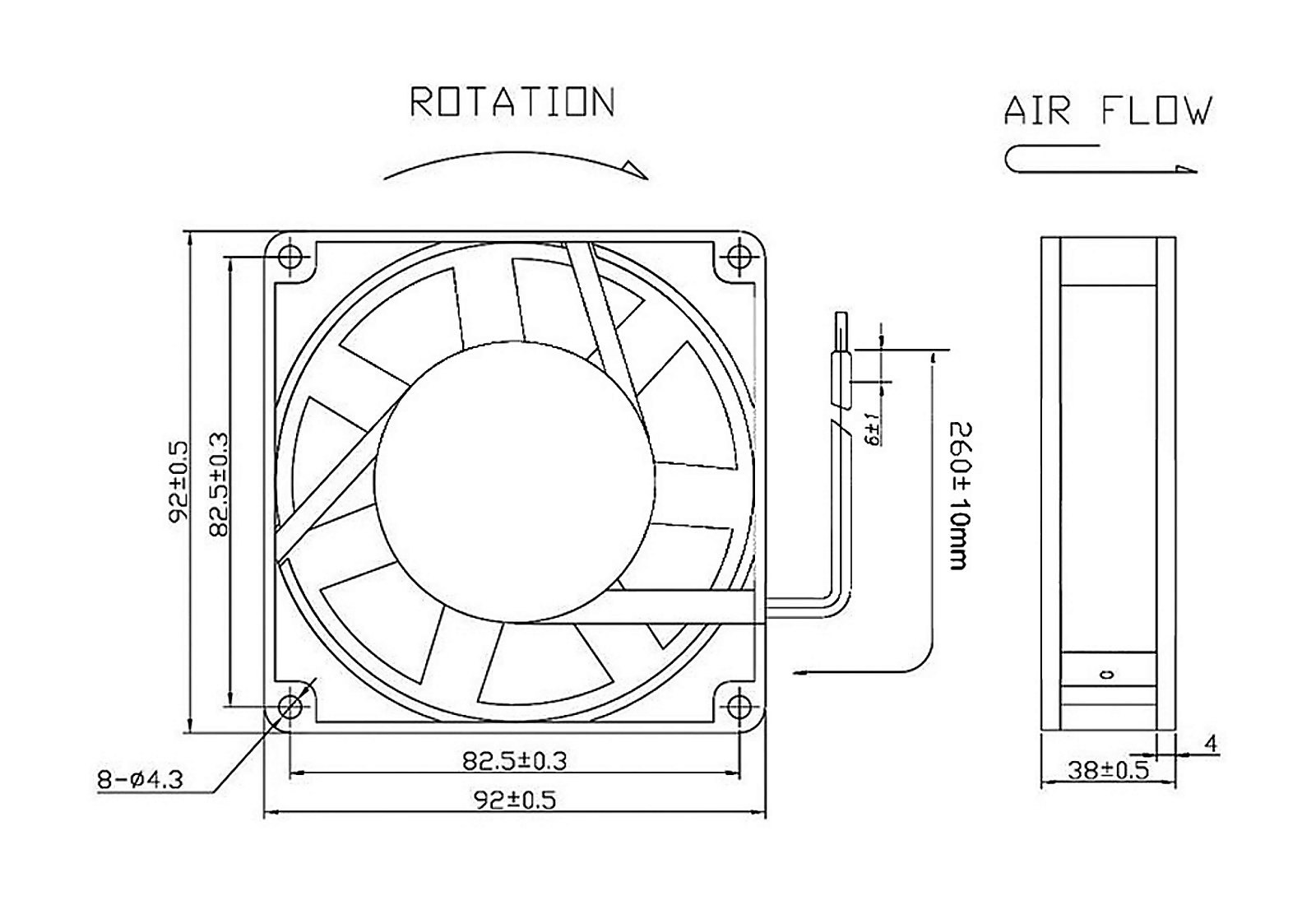

Dimension Drawing

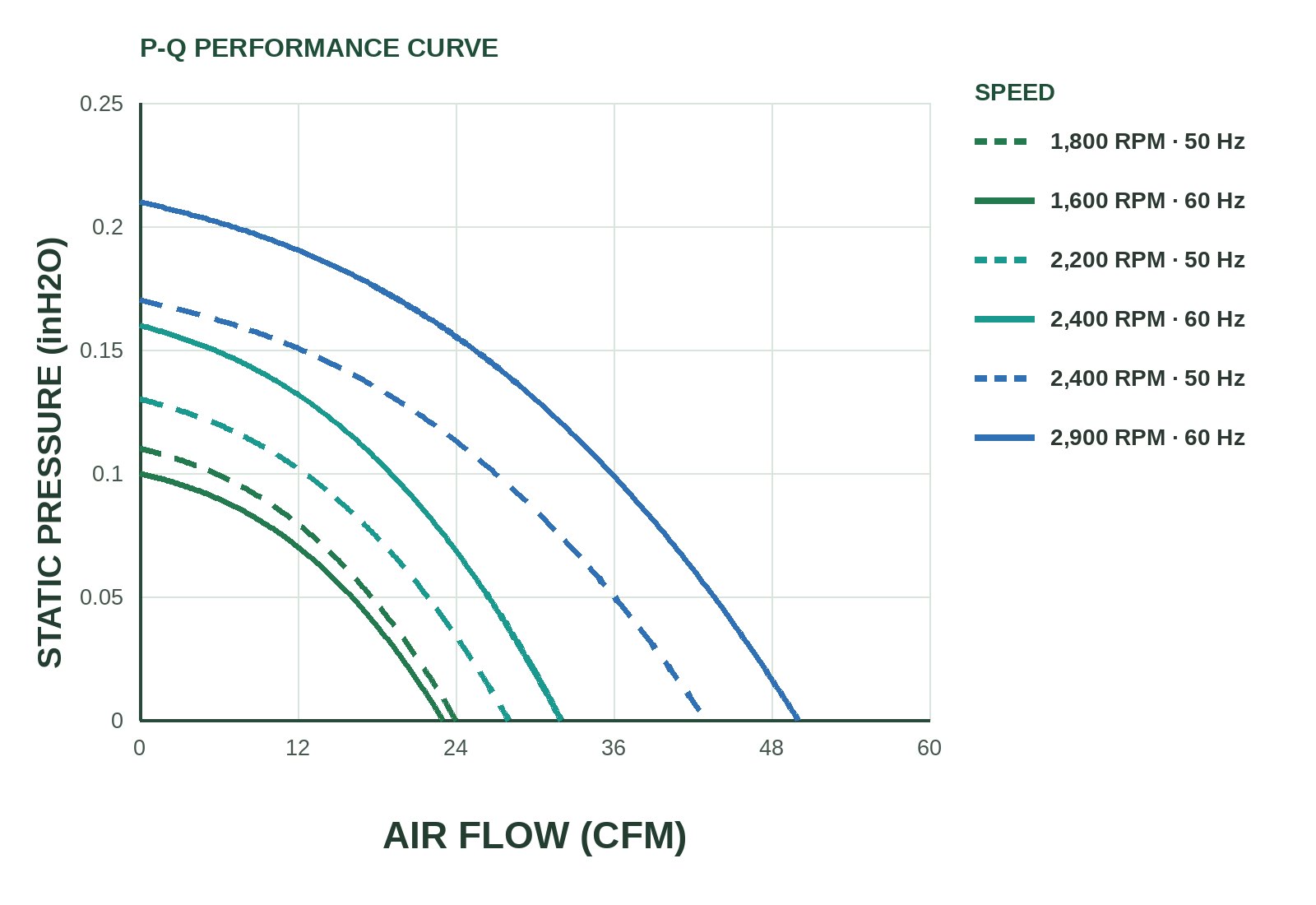

P&Q Curve
