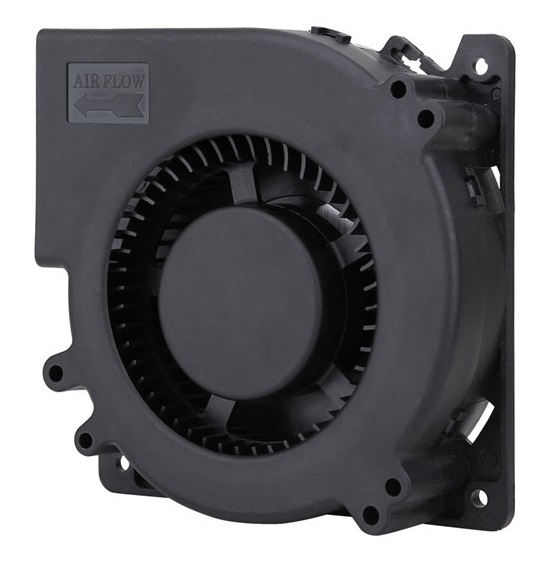

DC Blower
MFB12032
120 x 120 x 32 m
Airflow
26.5~41.9 CFM
Speed
2500~4000 RPM
Noise
48.2~59.9 dB(A)
Product Specifications
| Size | 120 x 120 x 32 m |
| Motor | Brushless DC |
| Voltage | 5V / 12V / 24V / 48V DC |
| Frame | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFB12032D1-HB | 12 | 7 ~ 13.8 | 1.7 | 20.1 | 3500 | 36.9 | 35.92 | 55.6 |
| MFB12032D1-HHB | 12 | 7 ~ 13.8 | 2.2 | 26.4 | 4000 | 41.9 | 48.47 | 59.9 |
| MFB12032D1-LB | 12 | 7 ~ 13.8 | 0.5 | 6 | 2500 | 26.5 | 20.25 | 48.2 |
| MFB12032D1-MB | 12 | 7 ~ 13.8 | 0.65 | 7.8 | 3000 | 31.9 | 27.47 | 51.9 |
| MFB12032D2-HB | 24 | 18 ~ 26.5 | 0.55 | 13.2 | 3500 | 36.9 | 35.92 | 55.6 |
| MFB12032D2-HHB | 24 | 18 ~ 26.5 | 1.1 | 26.4 | 4000 | 41.9 | 48.47 | 59.9 |
| MFB12032D2-LB | 24 | 18 ~ 26.5 | 0.25 | 6 | 2500 | 26.5 | 20.25 | 48.2 |
| MFB12032D2-MB | 24 | 18 ~ 26.5 | 0.33 | 8 | 3000 | 31.9 | 27.47 | 51.9 |
| MFB12032D4-HB | 48 | 36 ~ 54 | 0.42 | 20.1 | 3500 | 36.9 | 35.92 | 55.6 |
| MFB12032D4-HHB | 48 | 36 ~ 54 | 0.55 | 26.4 | 4000 | 41.9 | 48.47 | 59.9 |
| MFB12032D4-LB | 48 | 36 ~ 54 | 0.13 | 6 | 2500 | 26.5 | 20.25 | 48.2 |
| MFB12032D4-MB | 48 | 36 ~ 54 | 0.28 | 13.2 | 3000 | 31.9 | 27.47 | 51.9 |

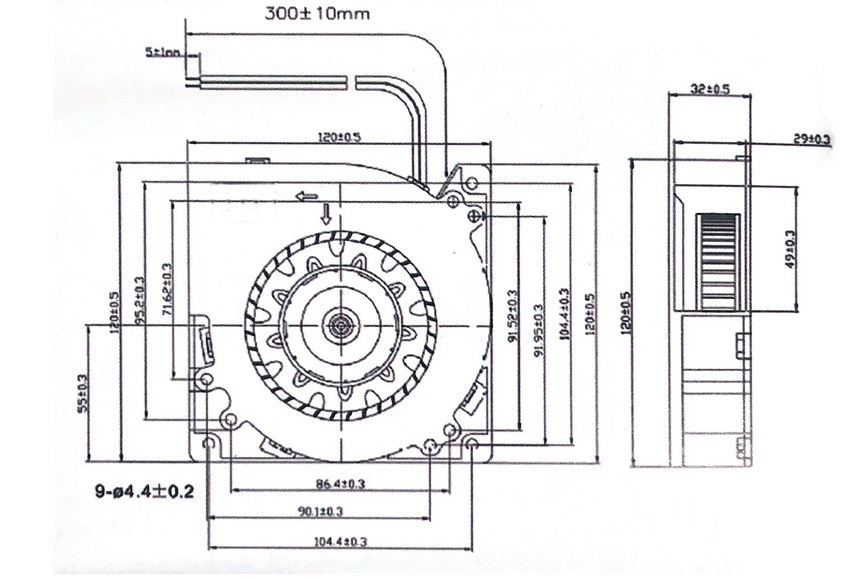

Dimension Drawing

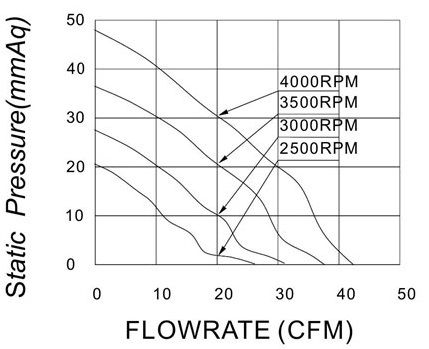

P&Q Curve
