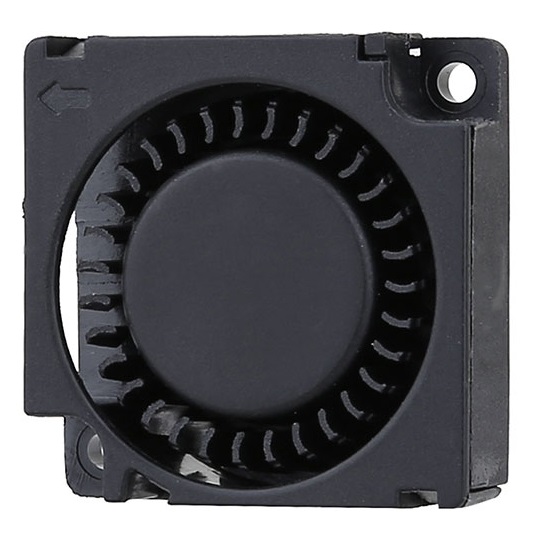

DC Blower
MFB3010
30 x 30 x 10 m
Airflow
0.9~1.4 CFM
Speed
5500~8500 RPM
Noise
23.4~33.2 dB(A)
Product Specifications
| Size | 30 x 30 x 10 m |
| Motor | Brushless DC |
| Voltage | 5V / 12V / 24V / 48V DC |
| Frame | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFB3010D05-LL | 5 | 1.8 ~ 6.8 | 0.40 | 0.20 | 5500 | 0.90 | 2.27 | 23.40 |
| MFB3010D05-L | 5 | 1.8 ~ 6.8 | 0.06 | 0.30 | 6000 | 1.07 | 2.86 | 25.00 |
| MFB3010D05-LV | 5 | 1.8 ~ 6.8 | 0.07 | 0.35 | 6500 | 1.16 | 3.36 | 26.50 |
| MFB3010D05-M | 5 | 1.8 ~ 6.8 | 0.09 | 0.48 | 7000 | 1.23 | 3.91 | 28.70 |
| MFB3010D05-MV | 5 | 1.8 ~ 6.8 | 0.11 | 0.55 | 7500 | 1.31 | 4.49 | 30.00 |
| MFB3010D05-VM | 5 | 1.8 ~ 6.8 | 0.14 | 0.70 | 8000 | 1.36 | 5.31 | 31.70 |
| MFB3010D05-H | 5 | 1.8 ~ 6.8 | 0.16 | 0.80 | 8500 | 1.39 | 5.86 | 33.20 |
| MFB3010D1-LL | 12 | 7.0 ~ 13.5 | 0.01 | 0.20 | 5500 | 0.90 | 2.27 | 23.40 |
| MFB3010D1-L | 12 | 7.0 ~ 13.5 | 0.02 | 0.30 | 6000 | 1.07 | 2.86 | 25.00 |
| MFB3010D1-LV | 12 | 7.0 ~ 13.5 | 0.03 | 0.36 | 6500 | 1.16 | 3.36 | 26.50 |
| MFB3010D1-M | 12 | 7.0 ~ 13.5 | 0.04 | 0.48 | 7000 | 1.23 | 3.91 | 28.70 |
| MFB3010D1-MV | 12 | 7.0 ~ 13.5 | 0.05 | 0.60 | 7500 | 1.31 | 4.49 | 30.00 |
| MFB3010D1-VM | 12 | 7.0 ~ 13.5 | 0.06 | 0.00 | 8000 | 1.36 | 5.31 | 31.70 |
| MFB3010D1-H | 12 | 7.0 ~ 13.5 | 0.07 | 0.80 | 8500 | 1.39 | 5.86 | 33.20 |

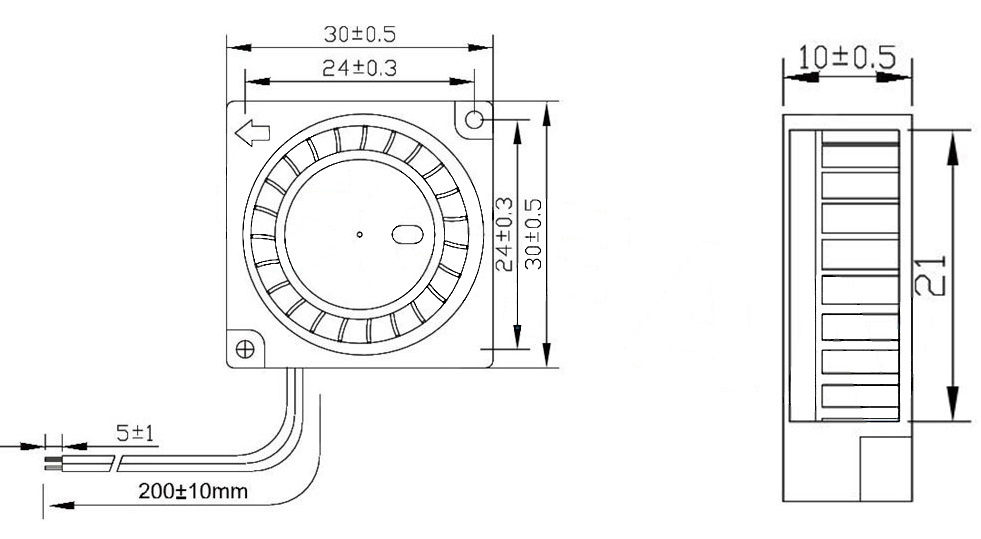

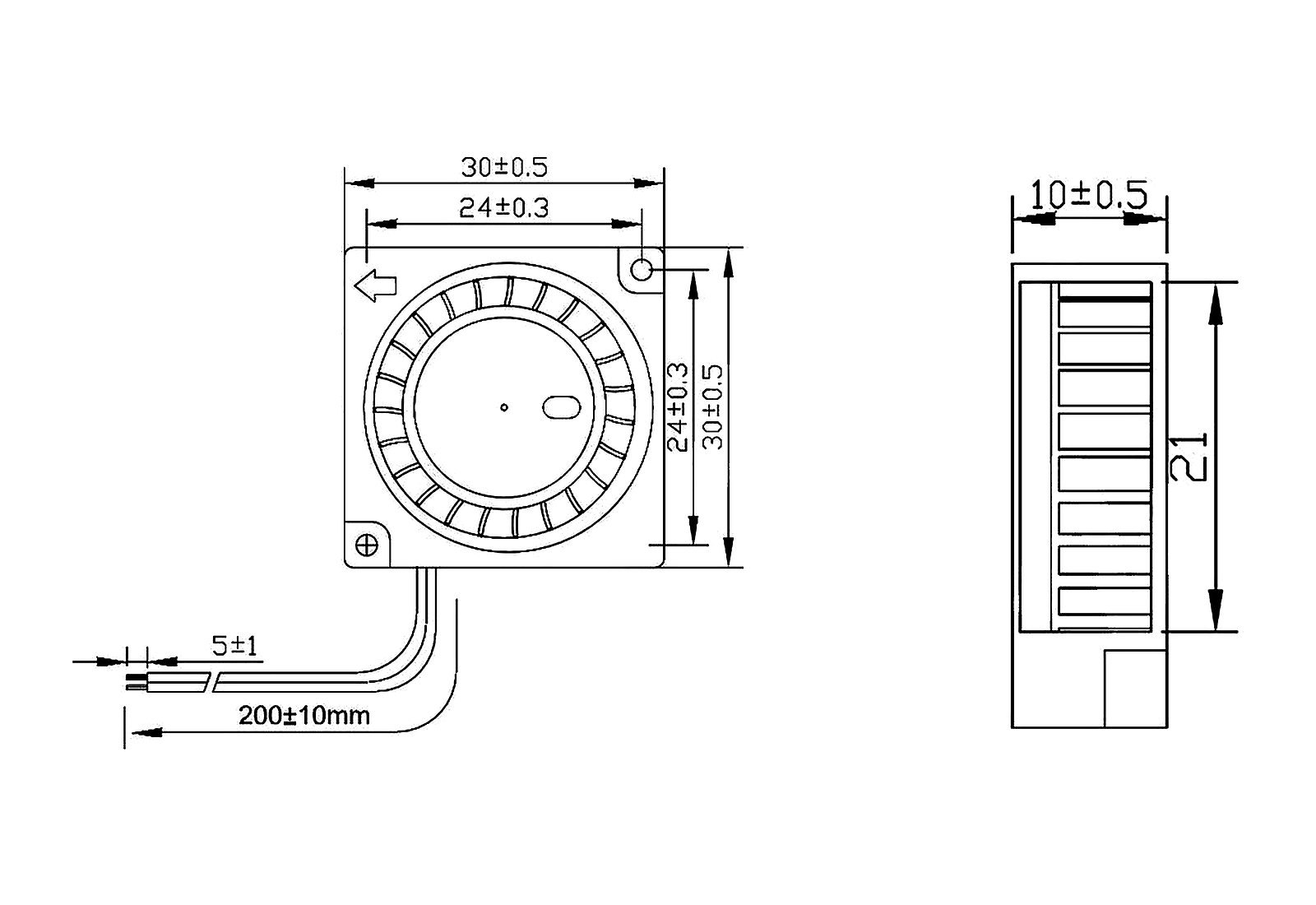

Dimension Drawing

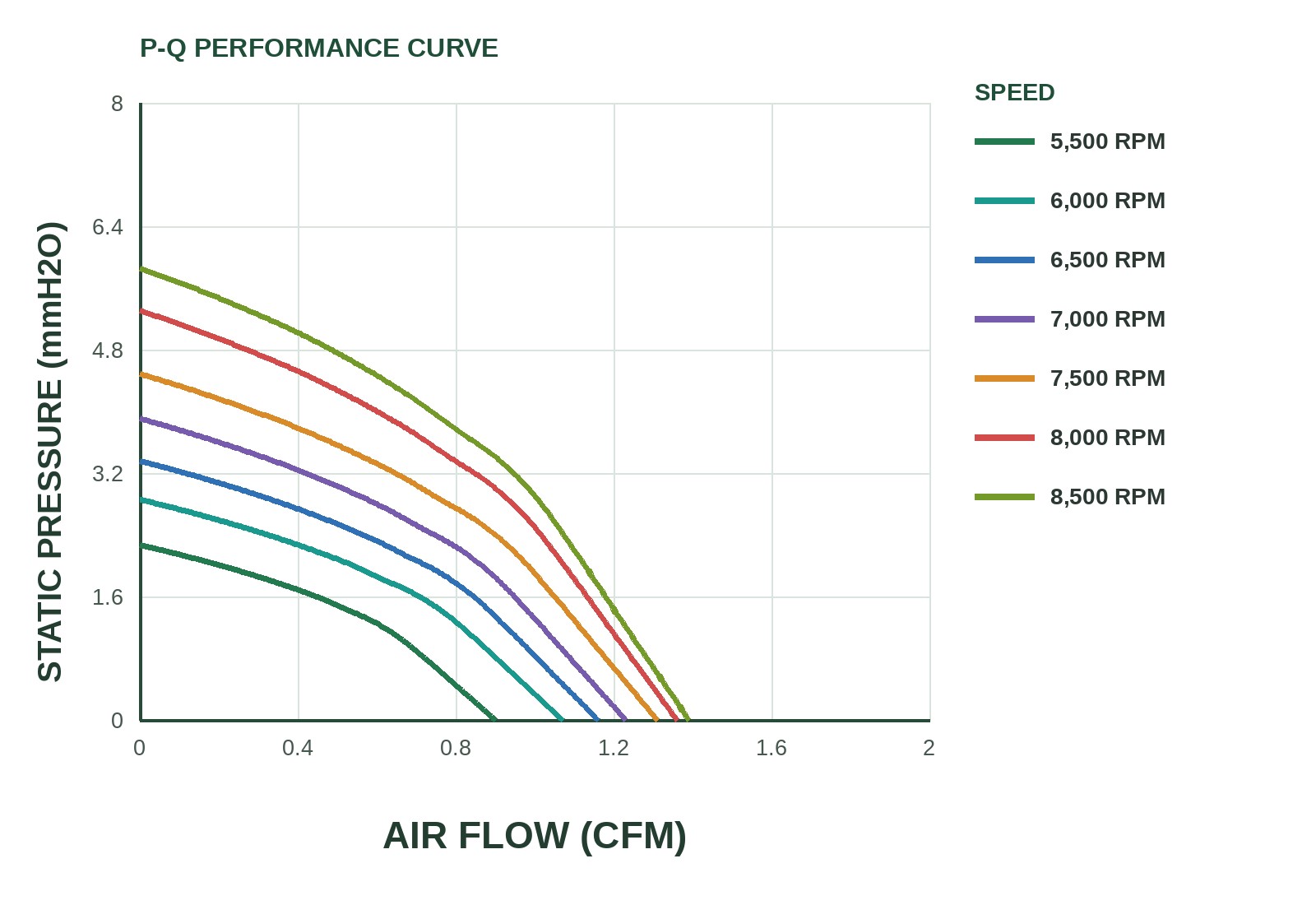

P&Q Curve
