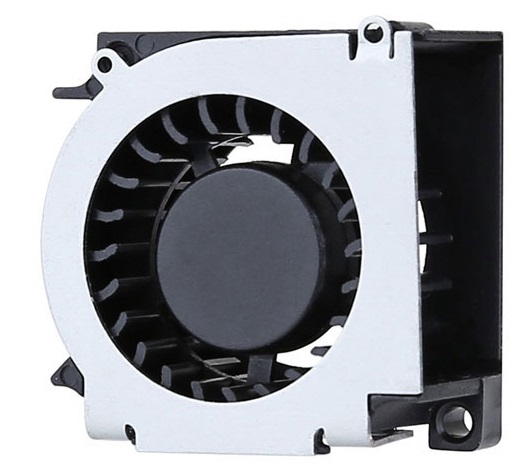

DC Blower
MFB3015
30 x 30 x 15 m
Airflow
1.1~1.7 CFM
Speed
4000~6000 RPM
Noise
17.9~25.3 dB(A)
Product Specifications
| Size | 30 x 30 x 15 m |
| Motor | Brushless DC |
| Voltage | 5V / 12V / 24V / 48V DC |
| Frame | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFB3015D05-HS | 5 | 3.5 ~ 5.5 | 0.18 | 0.9 | 6000 | 1.7 | 6.04 | 25.3 |
| MFB3015D05-LS | 5 | 3.5 ~ 5.5 | 0.1 | 0.5 | 4000 | 1.07 | 2.18 | 17.9 |
| MFB3015D05-MS | 5 | 3.5 ~ 5.5 | 0.14 | 0.7 | 5000 | 1.4 | 3.66 | 21.1 |
| MFB3015D1-HB | 12 | 7 ~ 13.8 | 0.08 | 0.96 | 6000 | 1.7 | 6.04 | 25.3 |
| MFB3015D1-LB | 12 | 7 ~ 13.8 | 0.042 | 0.5 | 4000 | 1.07 | 2.18 | 17.9 |
| MFB3015D1-MB | 12 | 7 ~ 13.8 | 0.06 | 0.72 | 5000 | 1.4 | 3.66 | 21.1 |

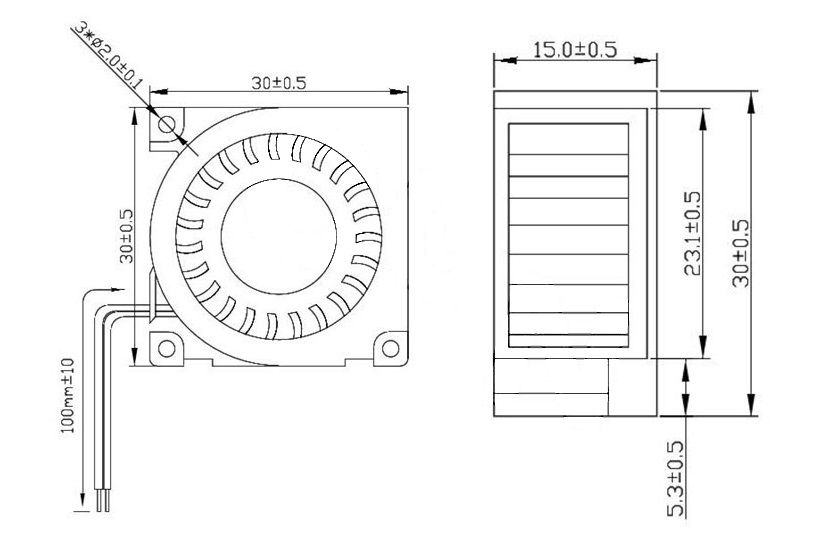

Dimension Drawing
P&Q Curve
