DC Blower
MFB3507
30 x 30 x 10 m
Airflow
0.8~1.4 CFM
Speed
5000~7500 RPM
Noise
23.9~32.3 dB(A)
Product Specifications
| Size | 30 x 30 x 10 m |
| Motor | Brushless DC |
| Voltage | 5V / 12V / 24V / 48V DC |
| Frame | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFB3507D05-HS | 5 | 3.5 ~ 5.5 | 0.18 | 0.9 | 7500 | 1.39 | 9.84 | 32.3 |
| MFB3507D05-LS | 5 | 3.5 ~ 5.5 | 0.08 | 0.4 | 5000 | 0.84 | 4.08 | 23.9 |
| MFB3507D05-MS | 5 | 3.5 ~ 5.5 | 0.12 | 0.6 | 6000 | 1.11 | 5.92 | 27.2 |
| MFB3507D1-HB | 12 | 7 ~ 13.8 | 0.075 | 0.9 | 7500 | 1.39 | 9.84 | 32.3 |
| MFB3507D1-LB | 12 | 7 ~ 13.8 | 0.034 | 0.4 | 5000 | 0.84 | 4.08 | 23.9 |
| MFB3507D1-MB | 12 | 7 ~ 13.8 | 0.05 | 0.6 | 6000 | 1.11 | 5.92 | 27.2 |

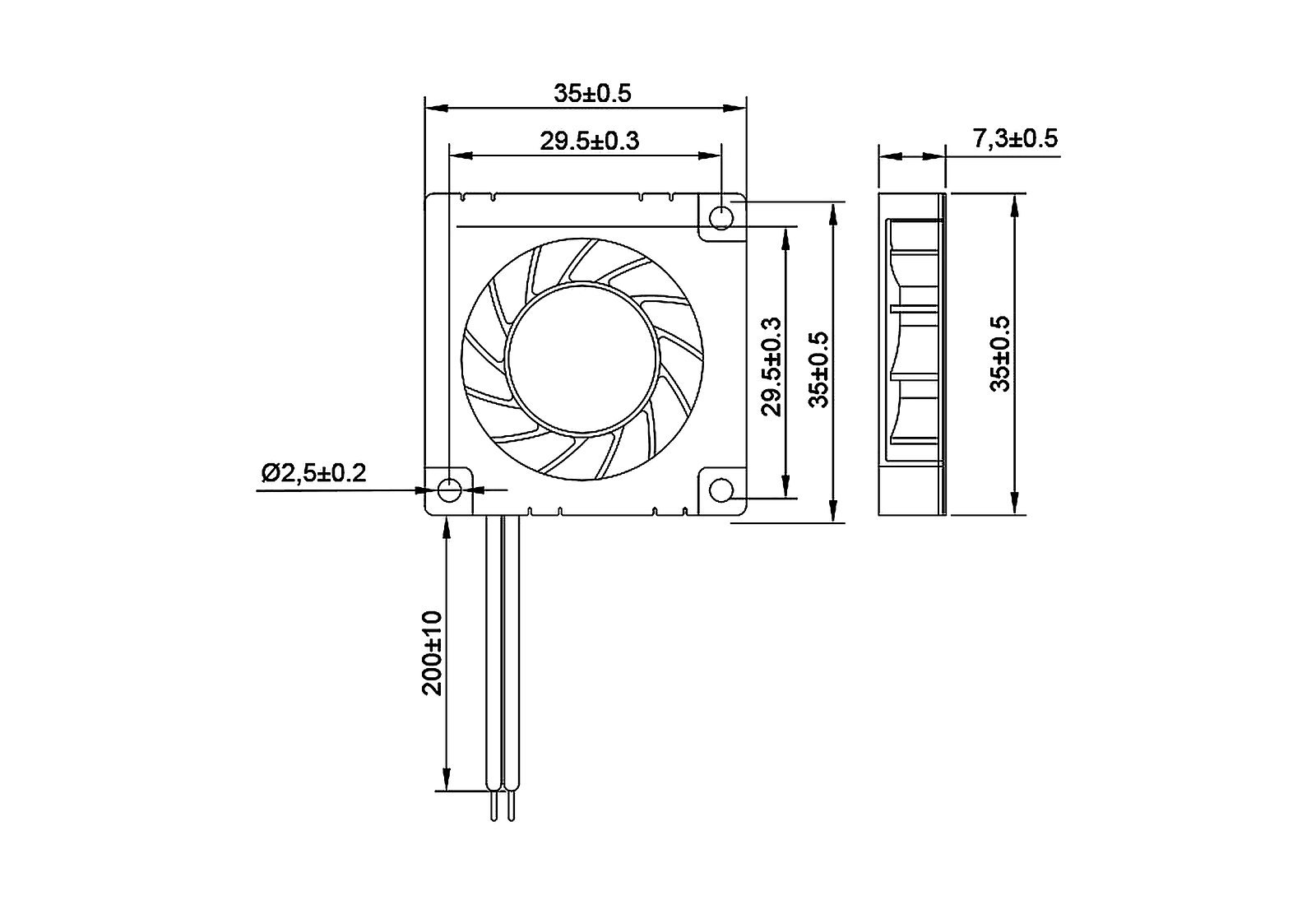

Dimension Drawing

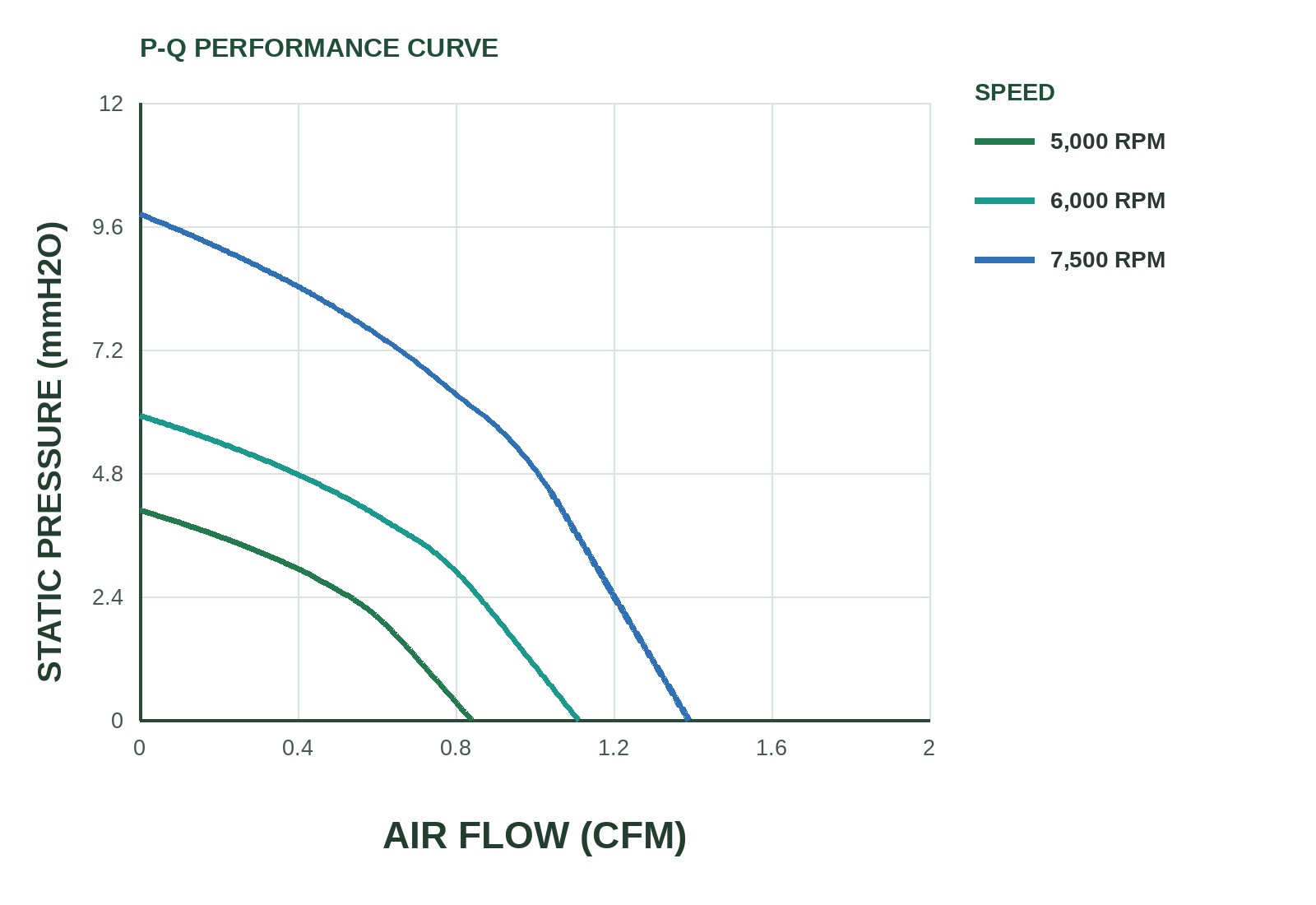

P&Q Curve
