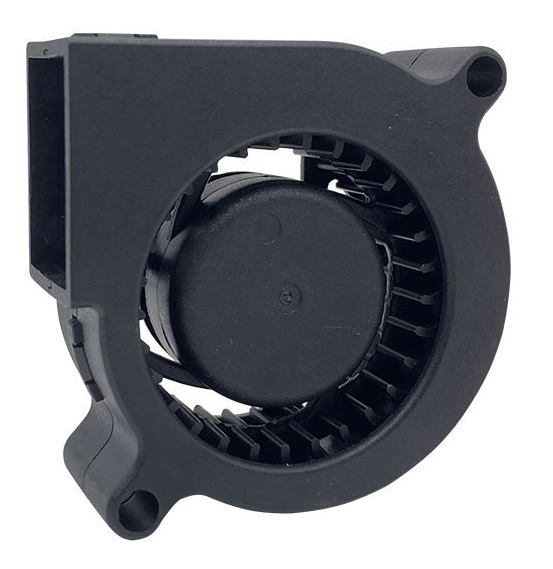

DC Blower
MFB5020
50 x 50 x 20 m
Airflow
2.1~3.8 CFM
Speed
4000~6000 RPM
Noise
31.5~42.7 dB(A)
Product Specifications
| Size | 50 x 50 x 20 m |
| Motor | Brushless DC |
| Voltage | 5V / 12V / 24V / 48V DC |
| Frame | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFB5020D05-L | 5 | 1.8 ~ 6.8 | 0.24 | 1.20 | 4000 | 2.13 | 4.00 | 31.50 |
| MFB5020D05-LL | 5 | 1.8 ~ 6.8 | 0.30 | 1.50 | 4500 | 3.04 | 6.68 | 34.20 |
| MFB5020D05-M | 5 | 1.8 ~ 6.8 | 0.60 | 1.80 | 5000 | 3.40 | 8.56 | 38.90 |
| MFB5020D1-L | 12 | 6.0 ~ 13.5 | 0.10 | 1.20 | 4000 | 2.13 | 4.00 | 31.50 |
| MFB5020D1-LL | 12 | 6.0 ~ 13.5 | 0.12 | 1.50 | 4500 | 3.04 | 6.68 | 34.20 |
| MFB5020D1-M | 12 | 6.0 ~ 13.5 | 0.15 | 1.80 | 5000 | 3.40 | 7.56 | 38.90 |
| MFB5020D1-H | 12 | 6.0 ~ 13.5 | 0.18 | 2.10 | 5500 | 3.60 | 8.56 | 39.90 |
| MFB5020D1-HH | 12 | 6.0 ~ 13.5 | 0.21 | 2.50 | 6000 | 3.79 | 13.33 | 42.70 |
| MFB5020D2-L | 24 | 18 ~ 26.5 | 0.05 | 1.20 | 4000 | 2.13 | 4.00 | 31.50 |
| MFB5020D2-LL | 24 | 18 ~ 26.5 | 0.06 | 1.50 | 4500 | 3.04 | 6.68 | 34.20 |
| MFB5020D2-M | 24 | 18 ~ 26.5 | 0.07 | 1.80 | 5000 | 3.40 | 7.56 | 38.90 |
| MFB5020D2-H | 24 | 18 ~ 26.5 | 0.09 | 2.10 | 5500 | 3.60 | 8.56 | 39.90 |
| MDB5020D2-H | 24 | 18 ~ 26.5 | 0.09 | 2.10 | 5500 | 3.60 | 8.56 | 39.90 |
| MFB5020D2-HH | 24 | 18 ~ 26.5 | 0.10 | 2.50 | 6000 | 3.79 | 13.33 | 42.70 |
Dimension Drawing
P&Q Curve
