DC Blower
MFB5025
50 x 50 x 25 m
Airflow
3.1~5.3 CFM
Speed
3000~5000 RPM
Noise
34.5~46.2 dB(A)
Product Specifications
| Size | 50 x 50 x 25 m |
| Motor | Brushless DC |
| Voltage | 5V / 12V / 24V / 48V DC |
| Frame | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFB5025D05-L | 5 | 3.6 ~ 6.8 | 0.20 | 1.00 | 3000 | 3.09 | 5.22 | 34.50 |
| MFB5025D05-M | 5 | 3.6 ~ 6.8 | 0.23 | 1.16 | 3500 | 3.73 | 7.62 | 37.50 |
| MFB5025D05-H | 5 | 3.6 ~ 6.8 | 0.26 | 1.32 | 4000 | 3.99 | 11.24 | 40.30 |
| MFB5025D05-HH | 5 | 3.6 ~ 6.8 | 0.33 | 1.65 | 4000 | 3.99 | 11.24 | 40.30 |
| MFB5025D1-L | 12 | 6.0 ~ 13.5 | 0.08 | 1.00 | 3000 | 3.09 | 5.22 | 34.50 |
| MFB5025D1-M | 12 | 6.0 ~ 13.5 | 0.10 | 1.16 | 3500 | 3.73 | 7.62 | 37.50 |
| MFB5025D1-H | 12 | 6.0 ~ 13.5 | 0.11 | 1.32 | 4000 | 3.99 | 11.24 | 40.30 |
| MFB5025D1-HH | 12 | 6.0 ~ 13.5 | 0.14 | 1.65 | 5000 | 5.31 | 20.80 | 46.20 |
| MFB5025D2-L | 24 | 18 ~ 26.5 | 0.04 | 1.00 | 3000 | 3.09 | 5.22 | 34.50 |
| MFB5025D2-M | 24 | 18 ~ 26.5 | 0.05 | 1.16 | 3500 | 3.73 | 7.62 | 37.50 |
| MFB5025D2-H | 24 | 18 ~ 26.5 | 0.06 | 1.32 | 4000 | 3.99 | 11.24 | 40.30 |
| MFB5025D2-HH | 24 | 18 ~ 26.5 | 0.07 | 1.65 | 5000 | 5.31 | 20.80 | 46.20 |

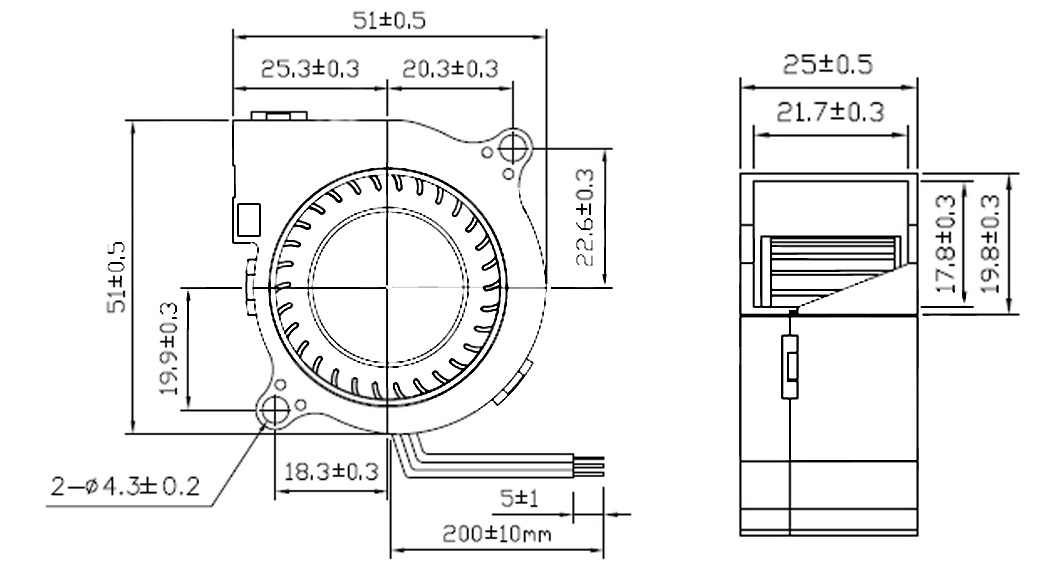

Dimension Drawing
P&Q Curve
