DC Blower
MFB7015
70 x 70 x 15 m
Airflow
4.2~7.2 CFM
Speed
2000~3500 RPM
Noise
30.2~44.4 dB(A)
Product Specifications
| Size | 70 x 70 x 15 m |
| Motor | Brushless DC |
| Voltage | 5V / 12V / 24V / 48V DC |
| Frame | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFB7015D1-HB | 12 | 7 ~ 13.8 | 0.16 | 1.92 | 3000 | 6.27 | 13.81 | 39.6 |
| MFB7015D1-HHB | 12 | 7 ~ 13.8 | 0.18 | 2.2 | 3500 | 7.21 | 20.66 | 44.4 |
| MFB7015D1-LB | 12 | 7 ~ 13.8 | 0.1 | 1.2 | 2000 | 4.2 | 5.29 | 30.2 |
| MFB7015D1-MB | 12 | 7 ~ 13.8 | 0.14 | 1.62 | 2500 | 5.18 | 9.3 | 35.7 |
| MFB7015D2-HB | 24 | 18 ~ 26.5 | 0.08 | 2 | 3000 | 6.27 | 13.81 | 39.6 |
| MFB7015D2-HHB | 24 | 18 ~ 26.5 | 0.1 | 2.4 | 3500 | 7.21 | 20.66 | 44.4 |
| MFB7015D2-LB | 24 | 18 ~ 26.5 | 0.05 | 1.2 | 2000 | 4.2 | 5.29 | 30.2 |
| MFB7015D2-MB | 24 | 18 ~ 26.5 | 0.07 | 1.62 | 2500 | 5.18 | 9.3 | 35.7 |

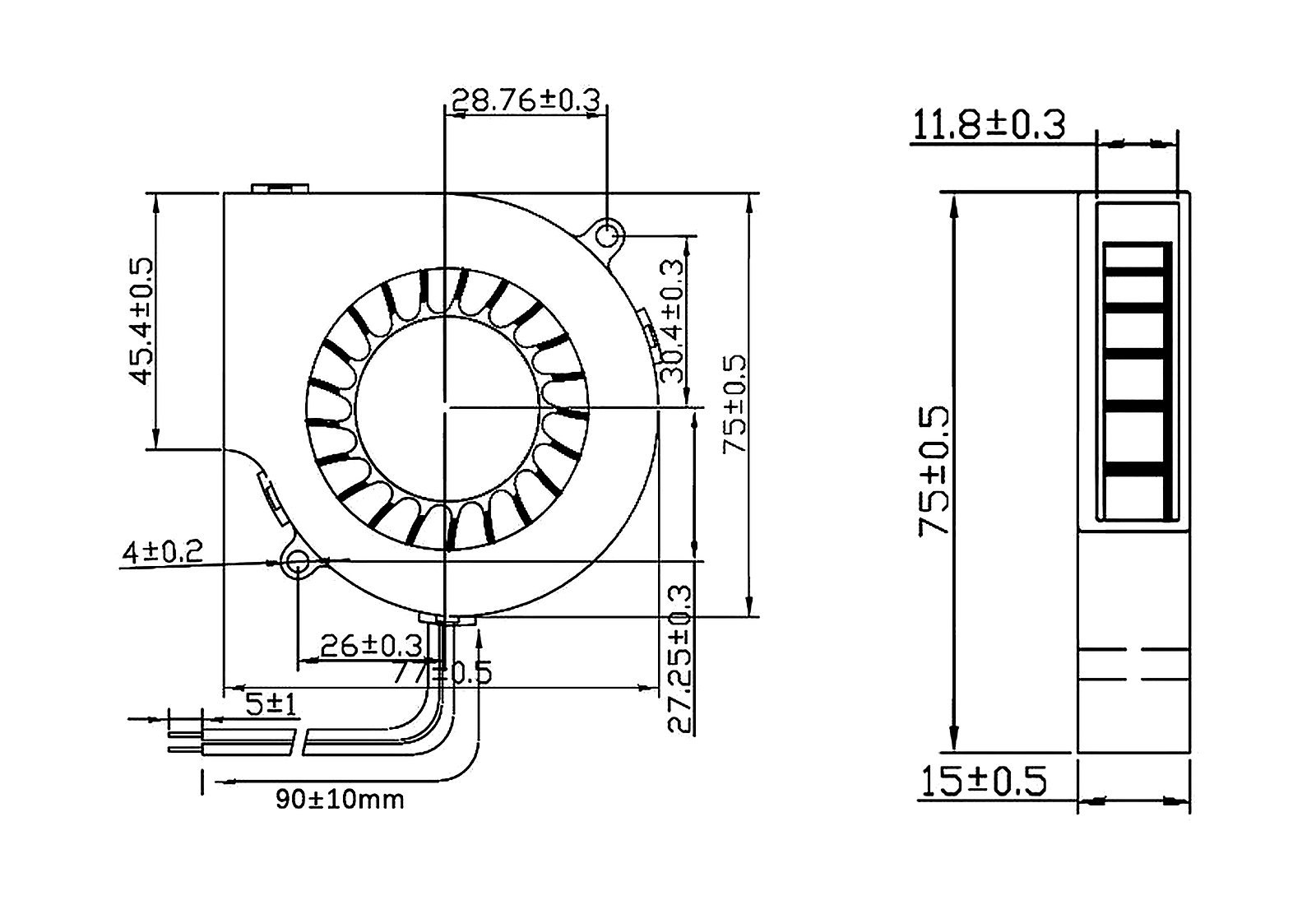

Dimension Drawing

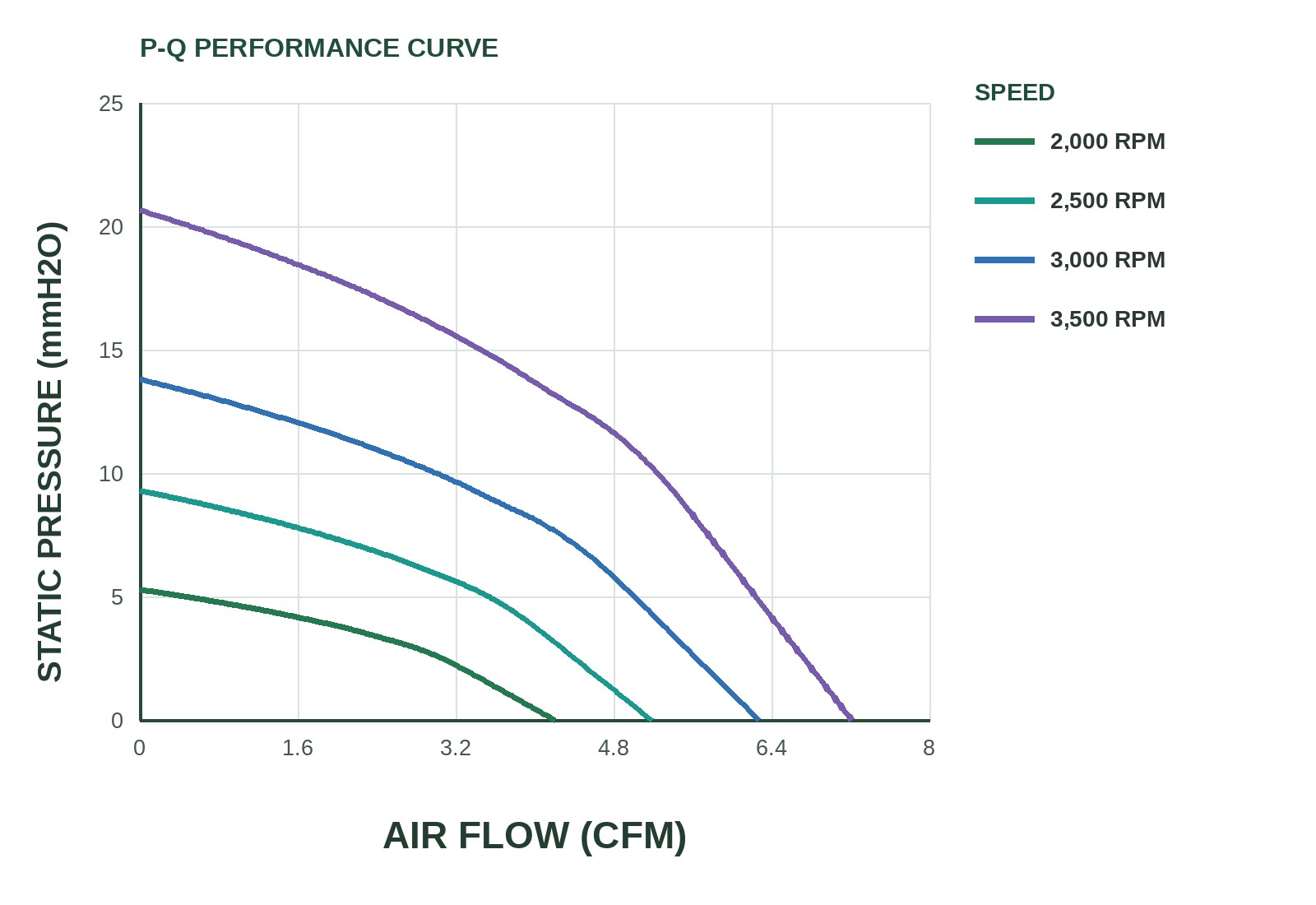

P&Q Curve
