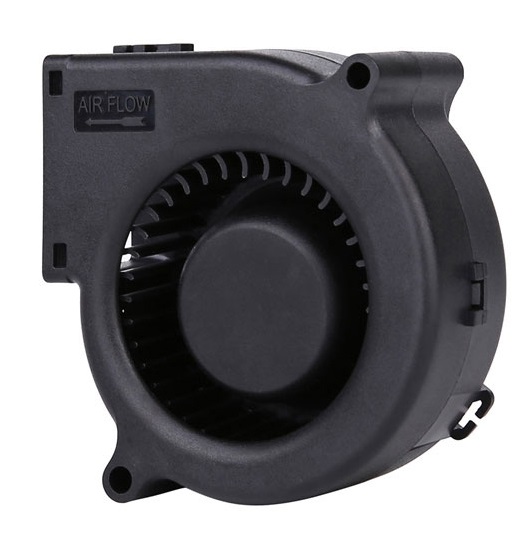

DC Blower
MFB7525
75 x 75 x 25 m
Airflow
5.8~13.9 CFM
Speed
2000~4500 RPM
Noise
31.7~51.7 dB(A)
Product Specifications
| Size | 75 x 75 x 25 m |
| Motor | Brushless DC |
| Voltage | 5V / 12V / 24V / 48V DC |
| Frame | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFB7525D1-L | 12 | 6.0 ~ 13.5 | 0.04 | 0.48 | 2000 | 5.77 | 3.65 | 31.70 |
| MFB7525D1-M | 12 | 6.0 ~ 13.5 | 0.10 | 1.20 | 2500 | 7.27 | 6.22 | 35.40 |
| MFB7525D1-H | 12 | 6.0 ~ 13.5 | 0.17 | 2.04 | 3000 | 9.11 | 10.75 | 40.50 |
| MFB7525D1-HH | 12 | 6.0 ~ 13.5 | 0.26 | 3.12 | 3500 | 10.60 | 15.75 | 44.30 |
| MFB7525D1-VH | 12 | 6.0 ~ 13.5 | 0.43 | 5.16 | 4000 | 12.20 | 22.71 | 47.70 |
| MFB7525D1-HV | 12 | 6.0 ~ 13.5 | 0.64 | 7.68 | 4500 | 13.90 | 30.97 | 51.70 |
| MFB7525D2-L | 24 | 18 ~ 26.5 | 0.02 | 0.48 | 2000 | 5.77 | 3.65 | 31.70 |
| MFB7525D2-M | 24 | 18 ~ 26.5 | 0.05 | 1.20 | 2500 | 7.27 | 6.22 | 35.40 |
| MFB7525D2-H | 24 | 18 ~ 26.5 | 0.09 | 2.16 | 3000 | 9.11 | 10.75 | 40.50 |
| MFB7525D2-HH | 24 | 18 ~ 26.5 | 0.13 | 3.12 | 3500 | 10.60 | 15.75 | 44.30 |
| MFB7525D2-VH | 24 | 18 ~ 26.5 | 0.22 | 5.28 | 4000 | 12.20 | 22.71 | 47.70 |
| MFB7525D2-HV | 24 | 18 ~ 26.5 | 0.32 | 7.68 | 4500 | 13.90 | 30.97 | 51.70 |

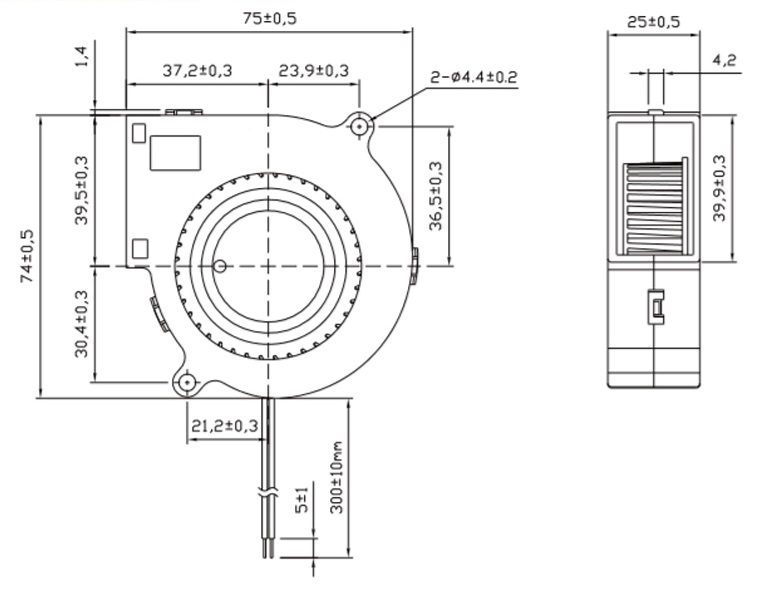

Dimension Drawing

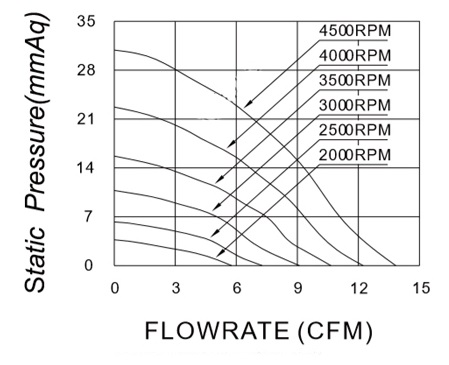

P&Q Curve
