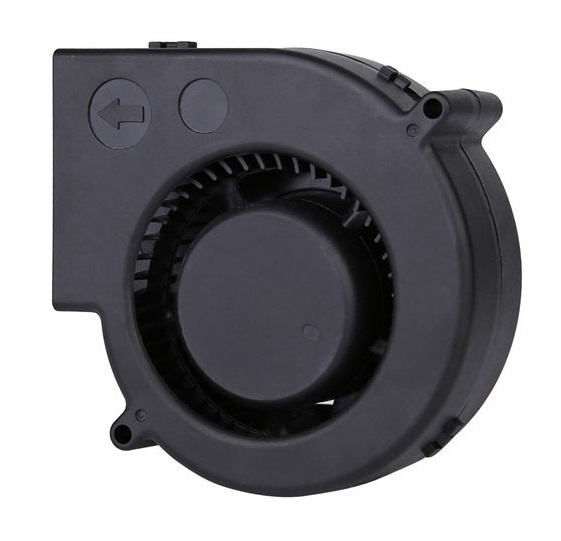

DC Blower
MFB9733
97 x 97 x 33 m
Airflow
12.8~56.8 CFM
Speed
3000~6850 RPM
Noise
44.8~66 dB(A)
Product Specifications
| Size | 97 x 97 x 33 mm |
| Voltage | 12V / 24V / 48V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Voltage (V) | Current (A) | Power (W) | Speed (RPM) | Airflow (CFM) | Pressure (mmH₂O) | Noise (dB-A) | Bearing |
|---|---|---|---|---|---|---|---|---|
| MFB9733D1-LB | 12 | 0.25 | 3 | 3000 | 12.8 | 8.99 | 44.8 | Ball |
| MFB9733D1-MB | 12 | 0.44 | 5.28 | 3500 | 15.4 | 12.4 | 47.2 | Ball |
| MFB9733D1-HB | 12 | 0.53 | 6.4 | 4000 | 20 | 16.17 | 50.9 | Ball |
| MFB9733D1-HHB | 12 | 0.63 | 7.56 | 4500 | 22.5 | 21.43 | 52.5 | Ball |
| MFB9733D1-VHB | 12 | 0.8 | 9.6 | 5000 | 25.2 | 26.25 | 55.3 | Ball |
| MFB9733D1-HVB | 12 | 1.1 | 13.2 | 5500 | 28.3 | 33.15 | 57.1 | Ball |
| MFB9733BD1-LB | 12 | 0.9 | 10.8 | 4500 | 36.7 | 41.79 | 56 | Ball |
| MFB9733BD1-MB | 12 | 1.1 | 13.2 | 4850 | 39.2 | 49.95 | 57 | Ball |
| MFB9733BD1-HB | 12 | 1.4 | 16.8 | 5250 | 43.1 | 62.18 | 59 | Ball |
| MFB9733BD1-HHB | 12 | 1.8 | 21.6 | 5750 | 47.3 | 77.47 | 61 | Ball |
| MFB9733BD1-VHB | 12 | 2.9 | 34.8 | 6850 | 56.8 | 130.49 | 66 | Ball |
| MFB9733D2-LB | 24 | 0.13 | 3 | 3000 | 12.8 | 8.99 | 44.8 | Ball |
| MFB9733D2-MB | 24 | 0.22 | 6 | 3500 | 15.4 | 12.4 | 47.2 | Ball |
| MFB9733D2-HB | 24 | 0.27 | 6.4 | 4000 | 20 | 16.17 | 50.9 | Ball |
| MFB9733D2-HHB | 24 | 0.32 | 7.56 | 4500 | 22.5 | 21.43 | 52.5 | Ball |
| MFB9733D2-VHB | 24 | 0.4 | 9.6 | 5000 | 25.2 | 26.25 | 55.3 | Ball |
| MFB9733D2-HVB | 24 | 0.55 | 13.2 | 5500 | 28.3 | 33.15 | 57.1 | Ball |
| MFB9733BD2-LB | 24 | 0.45 | 10.8 | 4500 | 36.7 | 41.79 | 56 | Ball |
| MFB9733BD2-MB | 24 | 0.55 | 13.2 | 4850 | 39.2 | 49.95 | 57 | Ball |
| MFB9733BD2-HB | 24 | 0.7 | 16.8 | 5250 | 43.1 | 62.18 | 59 | Ball |
| MFB9733BD2-HHB | 24 | 0.83 | 19.9 | 5750 | 47.3 | 77.47 | 61 | Ball |
| MFB9733BD2-VHB | 24 | 1.62 | 38.8 | 6850 | 56.8 | 130.49 | 66 | Ball |
| MFB9733D4-LB | 48 | 0.09 | 4.32 | 3000 | 12.8 | 8.99 | 44.8 | Ball |
| MFB9733D4-MB | 48 | 0.13 | 6 | 3500 | 15.4 | 12.4 | 47.2 | Ball |
| MFB9733D4-HB | 48 | 0.17 | 8.16 | 4000 | 20 | 16.17 | 50.9 | Ball |
| MFB9733D4-HHB | 48 | 0.21 | 10 | 4500 | 22.5 | 21.43 | 52.5 | Ball |
| MFB9733D4-VHB | 48 | 0.25 | 12 | 5000 | 25.2 | 26.25 | 55.3 | Ball |

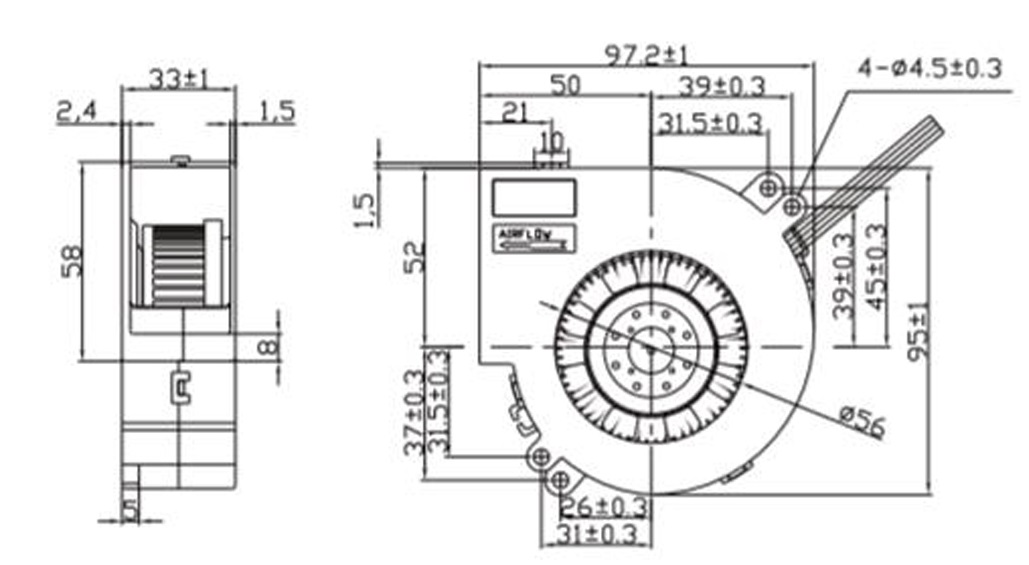

Dimension Drawing

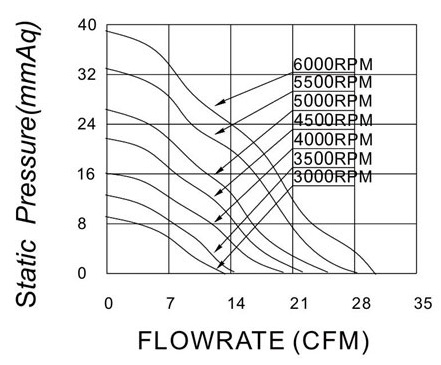

P&Q Curve
