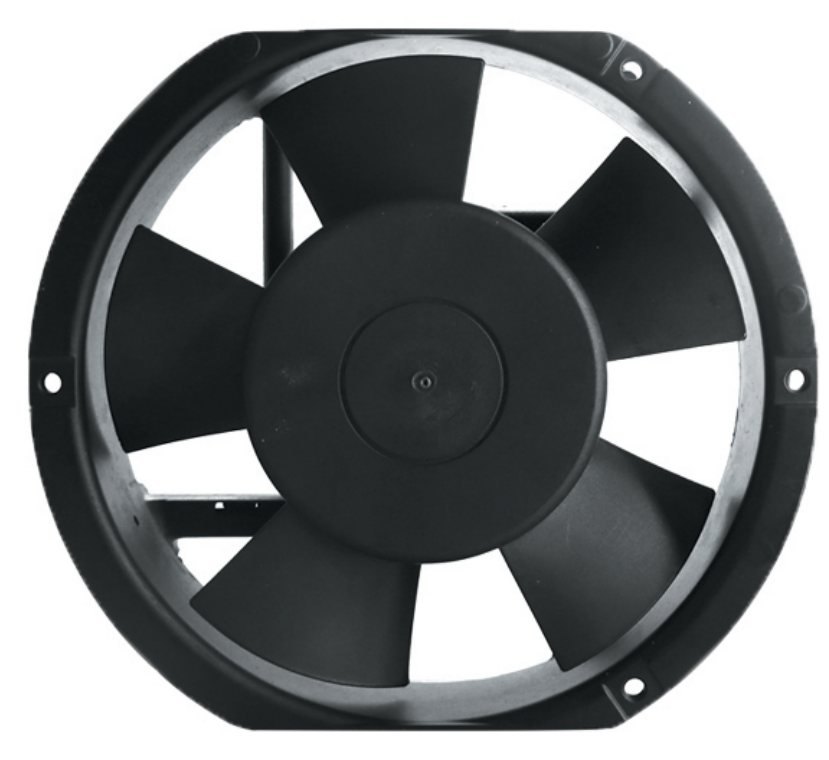

AC Axial Fan
MFC17251
172 x 172 x 51 mm
Airflow
200~235 CFM
Speed
2800~3350 RPM
Noise
55~61 dB(A)
Product Specifications
| Size | 172 x 172 x 51 mm |
| Voltage | 110 / 220 VAC, 50/60 Hz |
| Motor | Capacitor Motor |
| Frame | Aluminum Die-Cast |
| Impeller | Engineering Plastic (UL94V-0) |
| Bearing Type | Ball Bearing |
| Operating Temperature | -10 ~ 80°C |
| Life Expectancy | A1: 70,000 hours / A2: 50,000 hours |
| Weight | 800 / 850 g |
Part Number & Specifications
| Model | Rated Voltage (V) | Frequency (Hz) | Current (A) | Input Power (W) | Speed (RPM) | Airflow (CFM) | Static Pressure (inch-H₂O) | Noise (dB-A) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| MFC17251A1-HBAPL / MFC17251A1-HBAPT | 110/120 | 50/60 | 0.30/0.28 | 33/30 | 2800/3350 | 200/235 | 0.75/0.80 | 55/61 | 800 |
| MFC17251A2-HBAPL / MFC17251A2-HBAPT | 220/240 | 50/60 | 0.19/0.15 | 45/30 | 2800/3300 | 200/230 | 0.505/0.695 | 55/61 | 850 |
Specifications subject to change without notice. Specifications are governed by the official approval sheet.

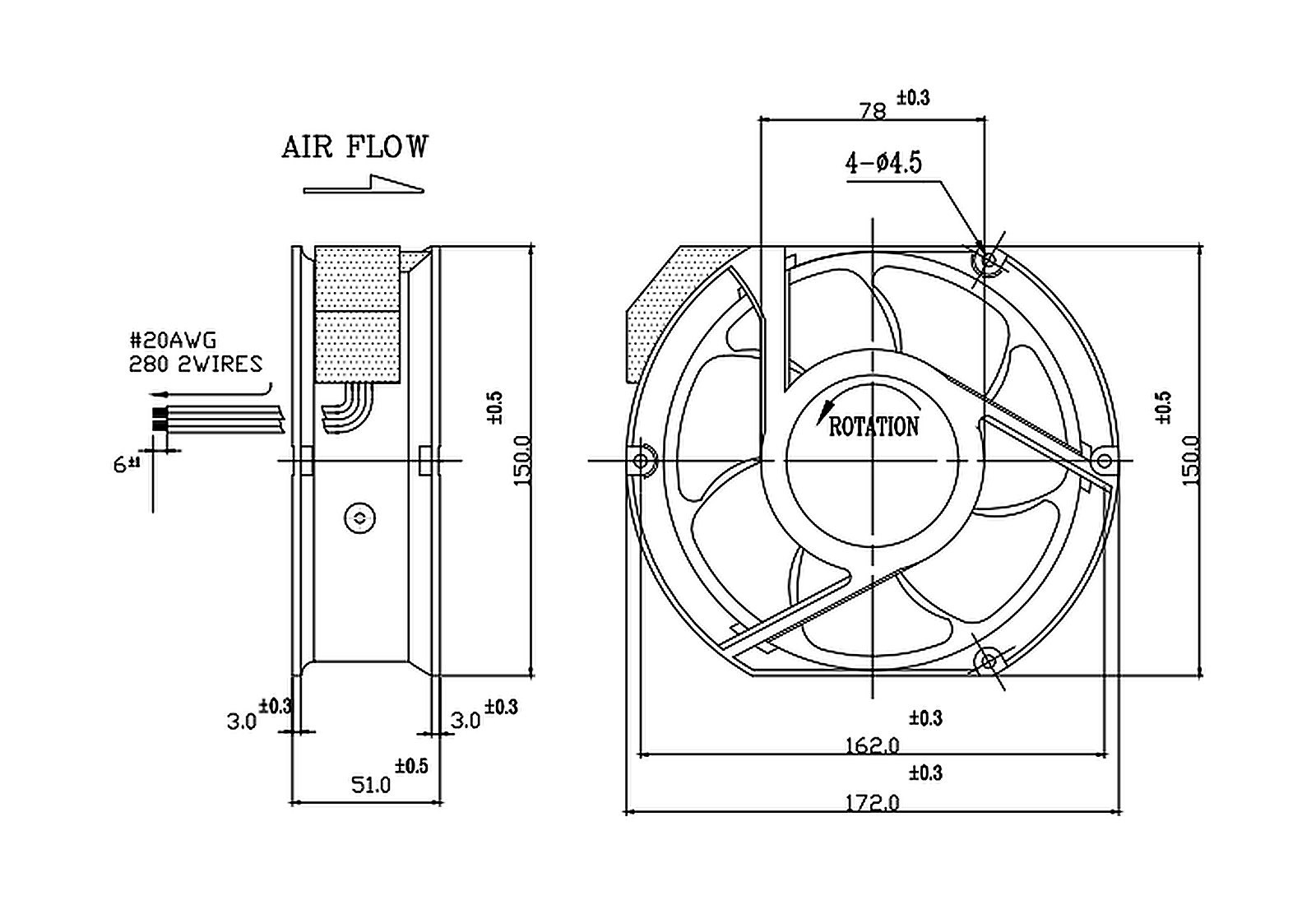

Dimension Drawing

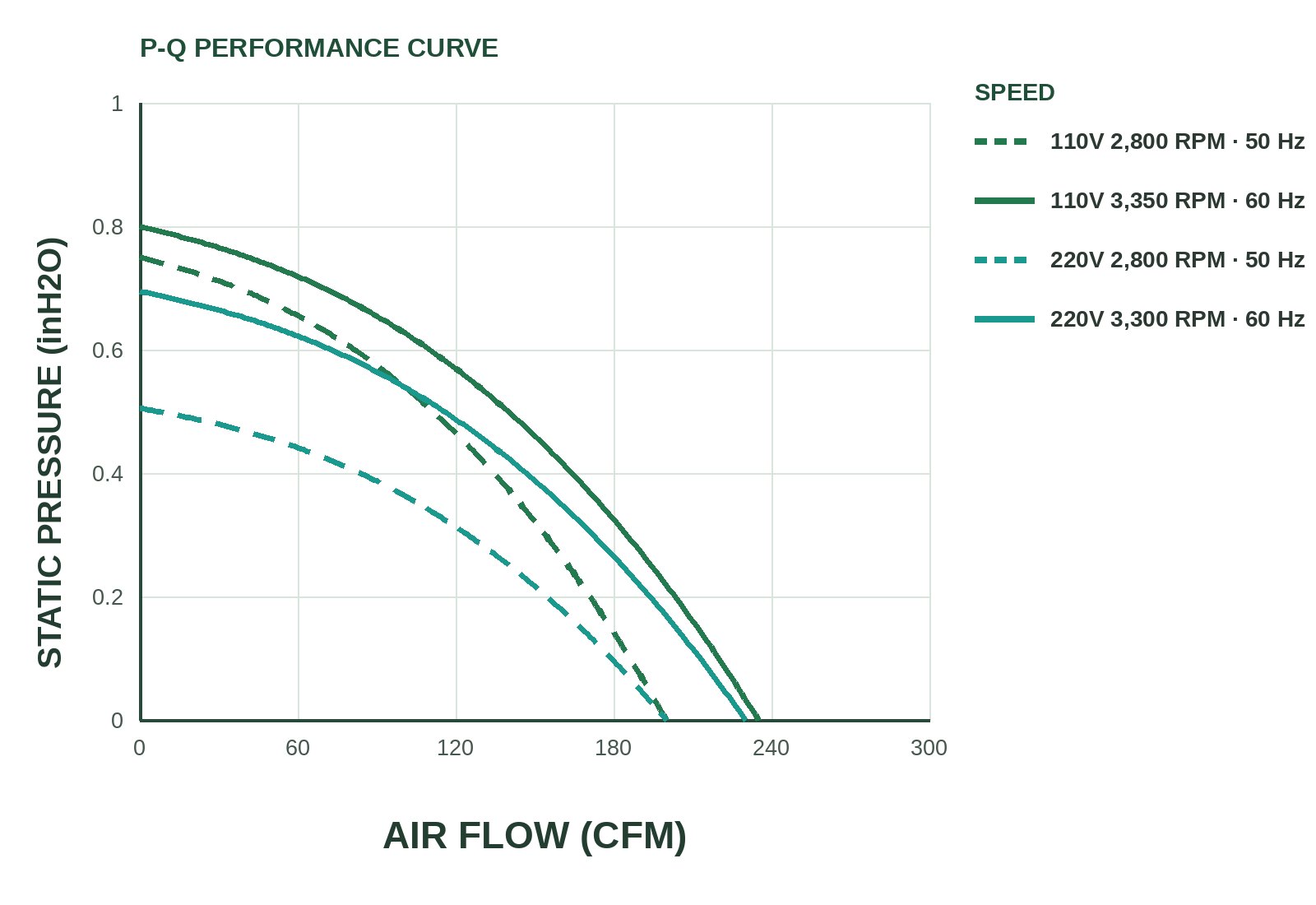

P&Q Curve
Part Number Code
MFSeries
120Frame
38Thickness
A1Voltage
HSpeed
BBearing
AFrame Material
PImpeller
TLead-out
IP55Protection
Example MF12038A1-HBAPT-IP55
From left to right: AC fan series, frame, thickness, single rated voltage, speed, bearing, frame material, impeller, lead-out and protection suffix. AC fans have no signal output option; available combinations follow the complete part-number approval sheet.
From left to right: AC fan series, frame, thickness, single rated voltage, speed, bearing, frame material, impeller, lead-out and protection suffix. AC fans have no signal output option; available combinations follow the complete part-number approval sheet.
MF
AC Axial Fan
120 / 38
120mm frame, 38mm thickness
Voltage
A1110 / 120 VAC
A2220 / 240 VAC
A3380 / 440 VAC
Speed
LLow speed
MMedium speed
HHigh speed
Bearing
BBall Bearing
SSleeve Bearing
A
Aluminum die-cast frame
P / A
PBT + 30% glass-fibre impeller / aluminum-magnesium alloy impeller
SQ
Identifies the square 172 × 172 frame, distinct from the 172 × 150 frame
T / L
Terminal connector / flying leads; the lead-out type follows the complete part number
-IP55
IP55 water-protected type (IPX7 also available)
Some models carry additional custom suffixes (lead length, connector type, ingress protection, etc.);
Please confirm the complete part number with our sales team before ordering.
