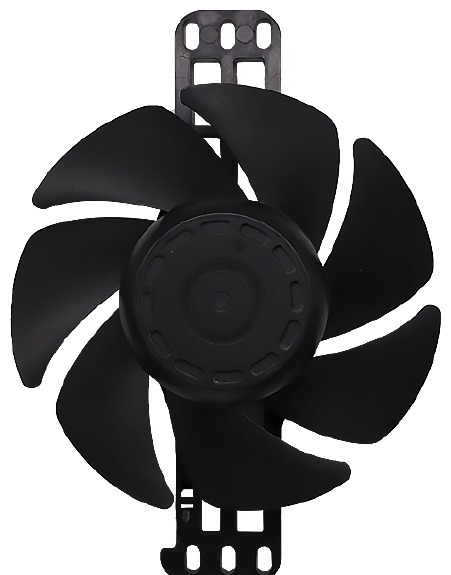

Frameless DC Fan
MFD12038Y
159.6 x 111 x 38 mm
Airflow
96.55~209.92 CFM
Speed
2500~5500 RPM
Noise
43.4~65.2 dB(A)
Product Specifications
| Size | 159.6 x 111 x 38 mm |
| Voltage | 12V / 24V / 48V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: -10 ~ 70°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 20,000 hours at 25°C |
| Available Functions | FG / PWM / RD / LD |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD12038YD1-LB | 12 | 8 ~ 13.5 | 0.3 | 3.6 | 2500 | 96.55 | 5.91 | 43.4 |
| MFD12038YD1-LS | 12 | 8 ~ 13.5 | 0.3 | 3.6 | 2500 | 96.55 | 5.91 | 43.4 |
| MFD12038YD1-MB | 12 | 8 ~ 13.5 | 0.6 | 7.2 | 3000 | 111.26 | 8.66 | 47.7 |
| MFD12038YD1-MS | 12 | 8 ~ 13.5 | 0.6 | 7.2 | 3000 | 111.26 | 8.66 | 47.7 |
| MFD12038YD1-VMB | 12 | 8 ~ 13.5 | 0.9 | 10.8 | 3500 | 132.14 | 11.94 | 52.8 |
| MFD12038YD1-VMS | 12 | 8 ~ 13.5 | 0.9 | 10.8 | 3500 | 132.14 | 11.94 | 52.8 |
| MFD12038YD1-HB | 12 | 8 ~ 13.5 | 1.2 | 14.4 | 4000 | 152.89 | 15.46 | 54.8 |
| MFD12038YD1-HS | 12 | 8 ~ 13.5 | 1.2 | 14.4 | 4000 | 152.89 | 15.46 | 54.8 |
| MFD12038YD1-HHB | 12 | 8 ~ 13.5 | 1.5 | 18 | 4500 | 169.37 | 19.73 | 58.1 |
| MFD12038YD1-HHS | 12 | 8 ~ 13.5 | 1.5 | 18 | 4500 | 169.37 | 19.73 | 58.1 |
| MFD12038YD1-VHB | 12 | 8 ~ 13.5 | 1.8 | 21.6 | 5000 | 189.97 | 24.4 | 62.1 |
| MFD12038YD1-VHS | 12 | 8 ~ 13.5 | 1.8 | 21.6 | 5000 | 189.97 | 24.4 | 62.1 |
| MFD12038YD1-HVB | 12 | 8 ~ 13.5 | 2 | 24 | 5500 | 209.92 | 29.8 | 65.2 |
| MFD12038YD1-HVS | 12 | 8 ~ 13.5 | 2 | 24 | 5500 | 209.92 | 29.8 | 65.2 |
| MFD12038YD2-LB | 24 | 18 ~ 26.5 | 0.15 | 3.6 | 2500 | 96.55 | 5.91 | 43.4 |
| MFD12038YD2-LS | 24 | 18 ~ 26.5 | 0.15 | 3.6 | 2500 | 96.55 | 5.91 | 43.4 |
| MFD12038YD2-MB | 24 | 18 ~ 26.5 | 0.3 | 7.2 | 3000 | 111.26 | 8.66 | 47.7 |
| MFD12038YD2-MS | 24 | 18 ~ 26.5 | 0.3 | 7.2 | 3000 | 111.26 | 8.66 | 47.7 |
| MFD12038YD2-VMB | 24 | 18 ~ 26.5 | 0.45 | 10.8 | 3500 | 132.14 | 11.94 | 52.8 |
| MFD12038YD2-VMS | 24 | 18 ~ 26.5 | 0.45 | 10.8 | 3500 | 132.14 | 11.94 | 52.8 |
| MFD12038YD2-HB | 24 | 18 ~ 26.5 | 0.6 | 14.4 | 4000 | 152.89 | 15.46 | 54.8 |
| MFD12038YD2-HS | 24 | 18 ~ 26.5 | 0.6 | 14.4 | 4000 | 152.89 | 15.46 | 54.8 |
| MFD12038YD2-HHB | 24 | 18 ~ 26.5 | 0.75 | 18 | 4500 | 169.37 | 19.73 | 58.1 |
| MFD12038YD2-HHS | 24 | 18 ~ 26.5 | 0.75 | 18 | 4500 | 169.37 | 19.73 | 58.1 |
| MFD12038YD2-VHB | 24 | 18 ~ 26.5 | 0.9 | 21.6 | 5000 | 189.97 | 24.4 | 62.1 |
| MFD12038YD2-VHS | 24 | 18 ~ 26.5 | 0.9 | 21.6 | 5000 | 189.97 | 24.4 | 62.1 |
| MFD12038YD4-LB | 48 | 36 ~ 54 | 0.075 | 3.6 | 2500 | 96.55 | 5.91 | 43.4 |
| MFD12038YD4-LS | 48 | 36 ~ 54 | 0.075 | 3.6 | 2500 | 96.55 | 5.91 | 43.4 |
| MFD12038YD4-MB | 48 | 36 ~ 54 | 0.15 | 7.2 | 3000 | 111.26 | 8.66 | 47.7 |
| MFD12038YD4-MS | 48 | 36 ~ 54 | 0.15 | 7.2 | 3000 | 111.26 | 8.66 | 47.7 |
| MFD12038YD4-VMB | 48 | 36 ~ 54 | 0.225 | 10.8 | 3500 | 132.14 | 11.94 | 52.8 |
| MFD12038YD4-VMS | 48 | 36 ~ 54 | 0.225 | 10.8 | 3500 | 132.14 | 11.94 | 52.8 |
| MFD12038YD4-HB | 48 | 36 ~ 54 | 0.3 | 14.4 | 4000 | 152.89 | 15.46 | 54.8 |
| MFD12038YD4-HS | 48 | 36 ~ 54 | 0.3 | 14.4 | 4000 | 152.89 | 15.46 | 54.8 |
| MFD12038YD4-HHB | 48 | 36 ~ 54 | 0.375 | 18 | 4500 | 169.37 | 19.73 | 58.1 |
| MFD12038YD4-HHS | 48 | 36 ~ 54 | 0.375 | 18 | 4500 | 169.37 | 19.73 | 58.1 |
| MFD12038YD4-VHB | 48 | 36 ~ 54 | 0.45 | 21.6 | 5000 | 189.97 | 24.4 | 62.1 |
| MFD12038YD4-VHS | 48 | 36 ~ 54 | 0.45 | 21.6 | 5000 | 189.97 | 24.4 | 62.1 |

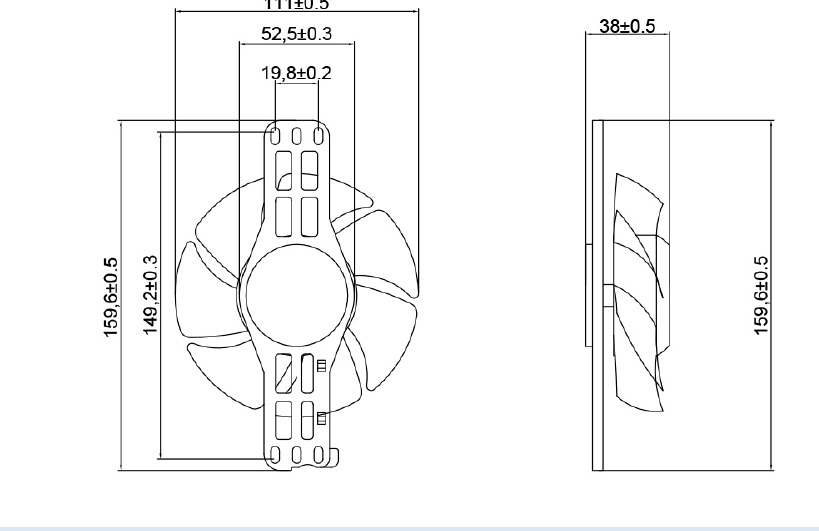

Dimension Drawing

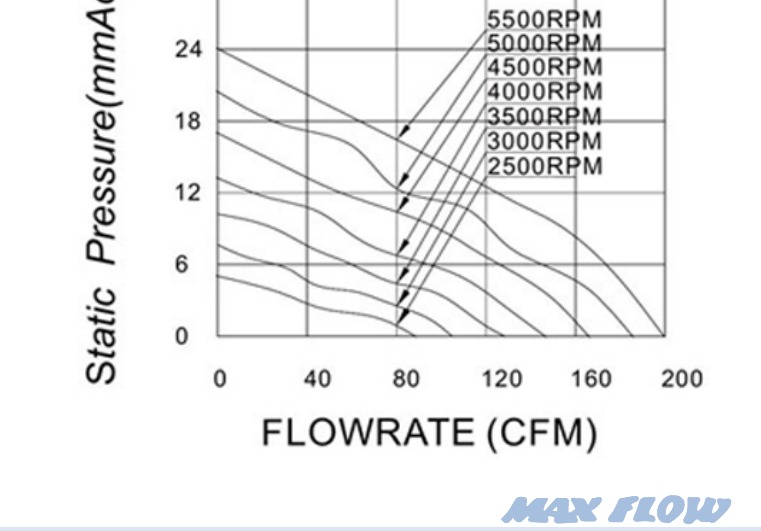

P&Q Curve
