Frameless DC Fan
MFD15050Y
159 x 142 x 41 mm
Airflow
172.21~361.69 CFM
Speed
2500~5000 RPM
Noise
56.1~71.4 dB(A)
Product Specifications
| Size | 159 x 142 x 41 mm |
| Voltage | 12V / 24V / 48V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C |
| Available Functions | FG / PWM / RD / LD |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD15050YD1-LB | 12 | 6.0 ~ 13.5 | 0.8 | 9.6 | 2500 | 172.21 | 10.92 | 56.1 |
| MFD15050YD1-MB | 12 | 6.0 ~ 13.5 | 2.4 | 28.8 | 3000 | 209.4 | 15.33 | 58.3 |
| MFD15050YD1-HB | 12 | 6.0 ~ 13.5 | 4.41 | 53 | 3500 | 248.09 | 21.33 | 62.5 |
| MFD15050YD1-HHB | 12 | 6.0 ~ 13.5 | 6 | 72 | 4000 | 283 | 27.36 | 65.5 |
| MFD15050YD1-VHB | 12 | 6.0 ~ 13.5 | 7.6 | 91.2 | 4500 | 325.57 | 37.57 | 68.2 |
| MFD15050YD1-HVB | 12 | 6.0 ~ 13.5 | 10 | 120 | 5000 | 361.69 | 45.36 | 71.4 |
| MFD15050YD2-LB | 24 | 18 ~ 26.5 | 0.4 | 9.6 | 2500 | 172.21 | 10.92 | 56.1 |
| MFD15050YD2-MB | 24 | 18 ~ 26.5 | 1.2 | 28.8 | 3000 | 209.4 | 15.33 | 58.3 |
| MFD15050YD2-HB | 24 | 18 ~ 26.5 | 2.2 | 53 | 3500 | 248.09 | 21.33 | 62.5 |
| MFD15050YD2-HHB | 24 | 18 ~ 26.5 | 3 | 72 | 4000 | 283 | 27.36 | 65.5 |
| MFD15050YD2-VHB | 24 | 18 ~ 26.5 | 3.8 | 91.2 | 4500 | 325.57 | 37.57 | 68.2 |
| MFD15050YD2-HVB | 24 | 18 ~ 26.5 | 5 | 120 | 5000 | 361.69 | 45.36 | 71.4 |
| MFD15050YD4-LB | 48 | 36 ~ 55 | 0.2 | 9.6 | 2500 | 172.21 | 10.92 | 56.1 |
| MFD15050YD4-MB | 48 | 36 ~ 55 | 0.6 | 28.8 | 3000 | 209.4 | 15.33 | 58.3 |
| MFD15050YD4-HB | 48 | 36 ~ 55 | 1.1 | 53 | 3500 | 248.09 | 21.33 | 62.5 |
| MFD15050YD4-HHB | 48 | 36 ~ 55 | 1.5 | 72 | 4000 | 283 | 27.36 | 65.5 |
| MFD15050YD4-VHB | 48 | 36 ~ 55 | 1.9 | 91.2 | 4500 | 325.57 | 37.57 | 68.2 |
| MFD15050YD4-HVB | 48 | 36 ~ 55 | 2.5 | 120 | 5000 | 361.69 | 45.36 | 71.4 |

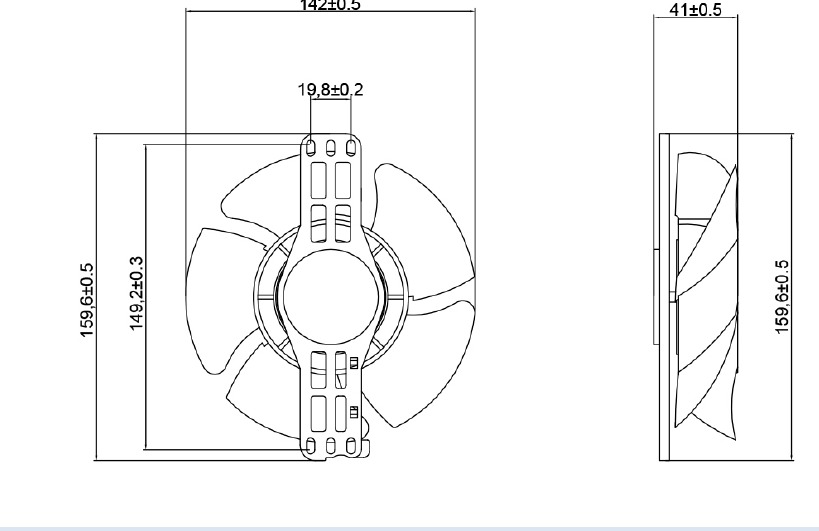

Dimension Drawing

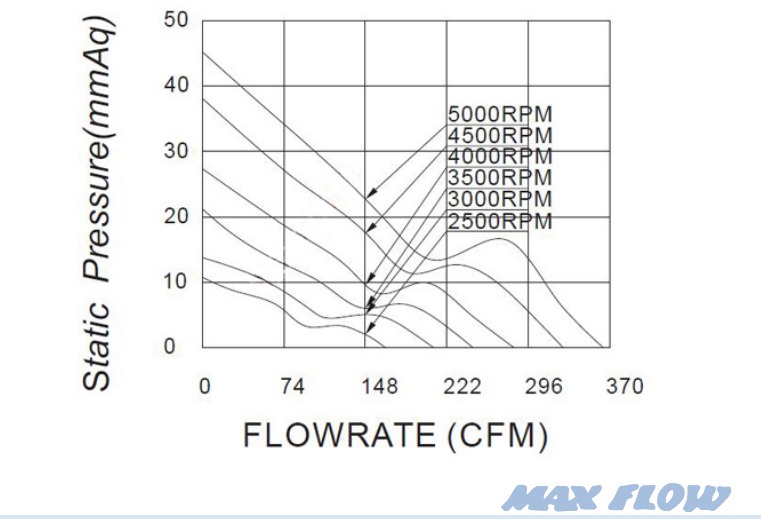

P&Q Curve
