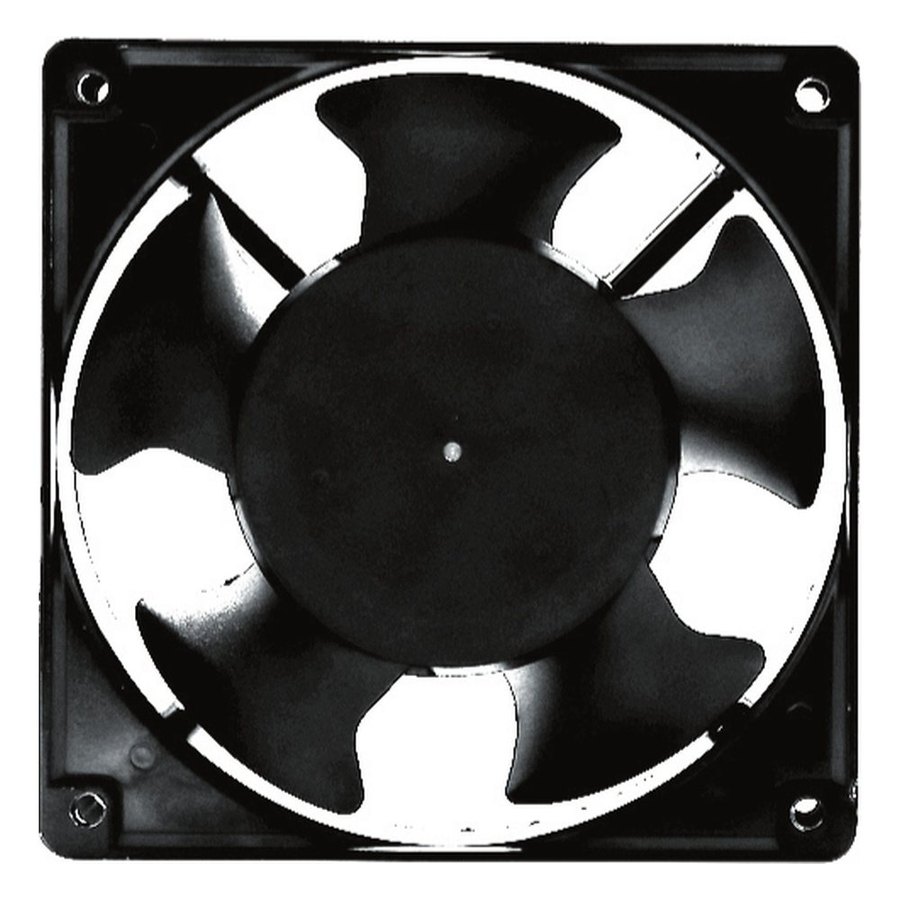

EC Fan
MFE12038E
120 x 120 x 38 mm
Airflow
96.55-111.26 CFM
Speed
2500-3000 RPM
Noise
43.4-47.7 dB(A)
Product Specifications
| Size | 120 x 120 x 38 mm |
| Voltage | AC 80-230 V (per complete part number) |
| Motor | EC electronically commutated motor |
| Frame | PBT Plastic, UL94V-0 |
| Impeller | PBT Plastic, UL94V-0 |
| Bearing Type | Ball Bearing |
| Control Method | VPWM DC voltage speed control (optional) |
| Operating Temperature | -10 ~ 70°C |
| Life Expectancy | 50,000 hours (25°C) |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Static Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|
| MFE12038E-L | 220 | 80-230 | 8.8 | 2500 | 96.55 | 5.91 | 43.4 |
| MFE12038E-M | 220 | 80-230 | 11 | 3000 | 111.26 | 8.66 | 47.7 |
Specifications subject to change without notice. Specifications are governed by the official approval sheet.

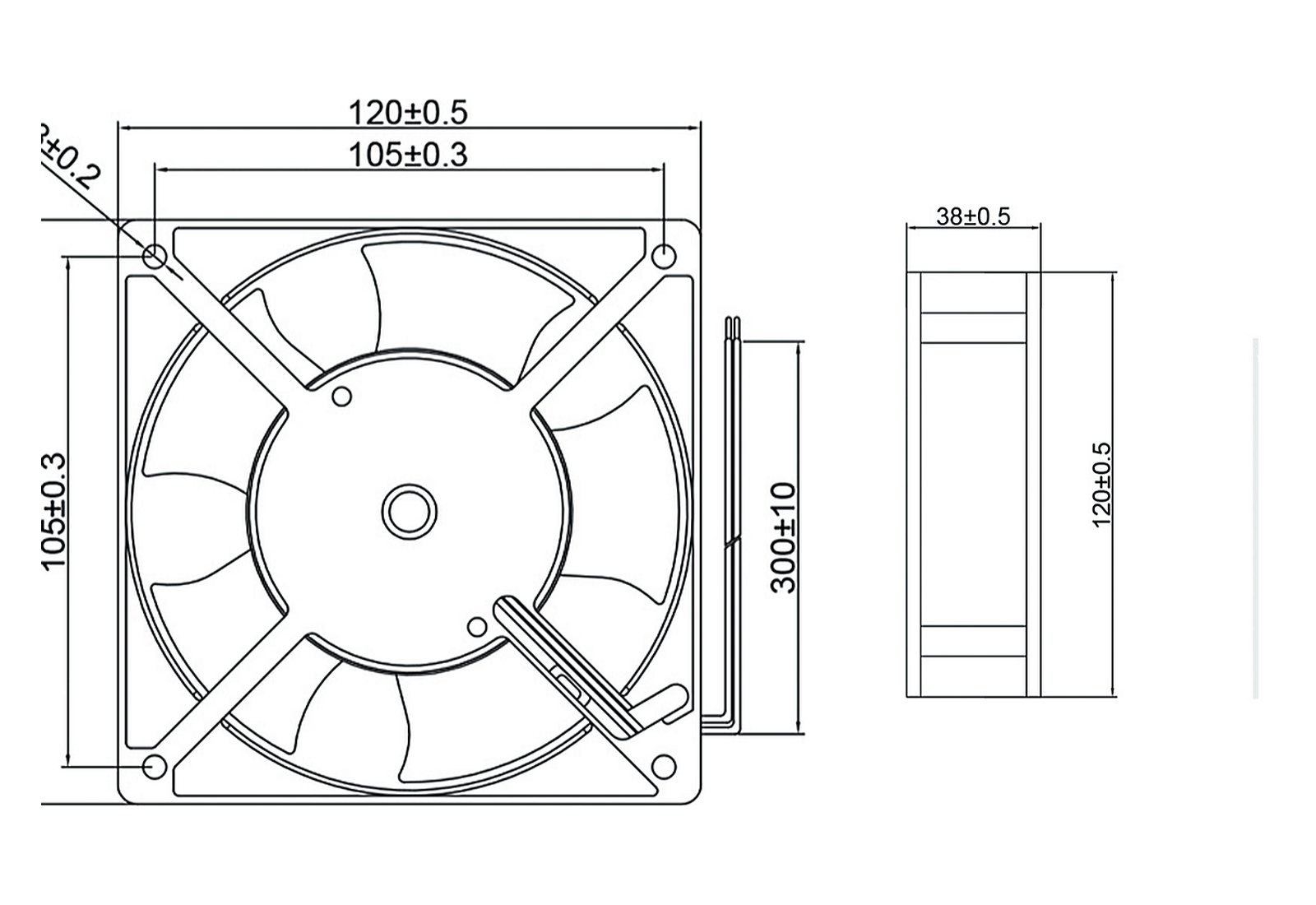

Dimension Drawing

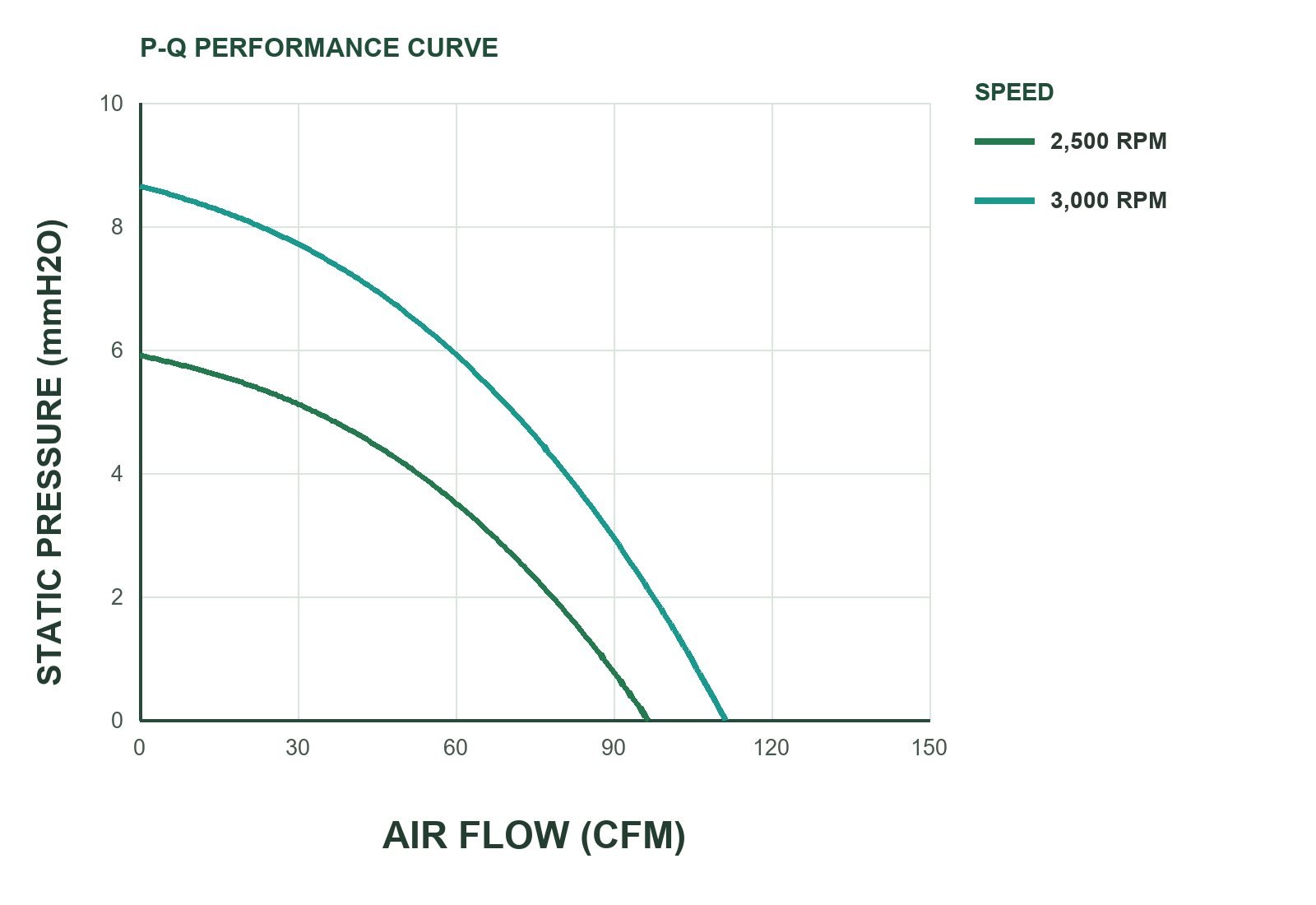

P&Q Curve
