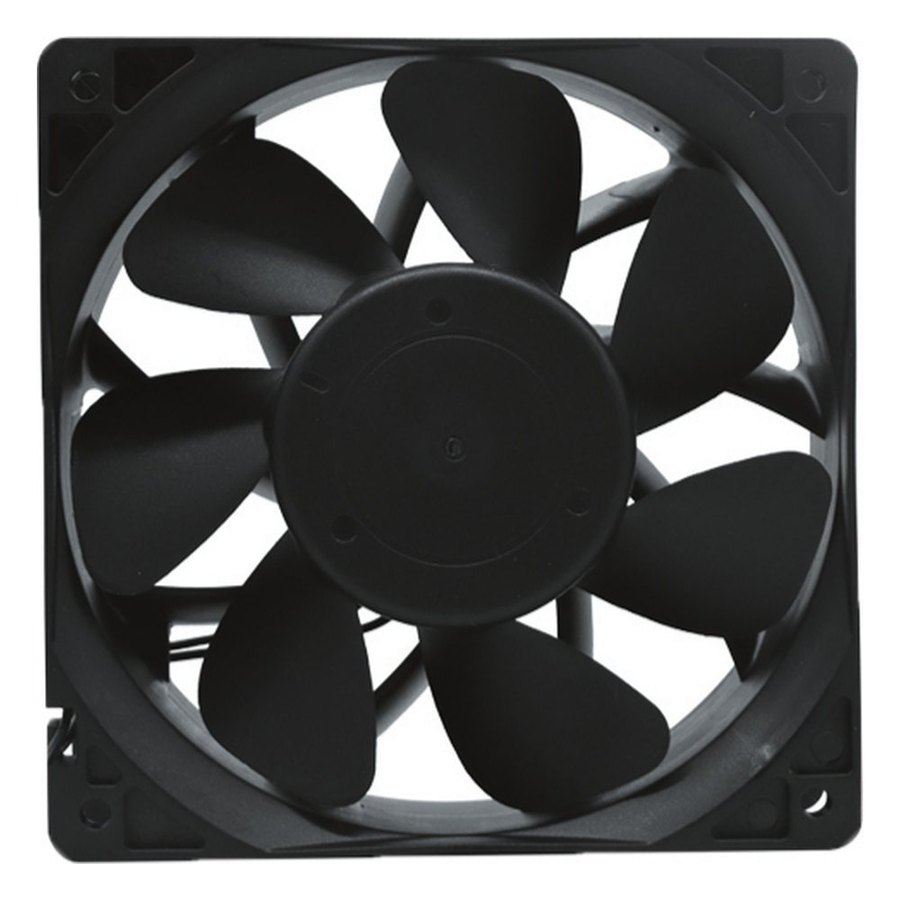

EC Fan
MFE12038Q
120 x 120 x 38 mm
Airflow
110.99-217.62 CFM
Speed
3000-6000 RPM
Noise
45.7-63.5 dB(A)
Product Specifications
| Size | 120 x 120 x 38 mm |
| Voltage | AC 80-230 V (per complete part number) |
| Motor | EC electronically commutated motor |
| Frame | PBT Plastic, UL94V-0 |
| Impeller | PBT Plastic, UL94V-0 |
| Bearing Type | Ball Bearing |
| Control Method | VPWM DC voltage speed control (optional) |
| Operating Temperature | -10 ~ 70°C |
| Life Expectancy | 50,000 hours (25°C) |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Static Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|
| MFE12038Q-L | 220 | 80-230 | 4.8 | 3000 | 110.99 | 8.58 | 45.7 |
| MFE12038Q-M | 220 | 80-230 | 8.88 | 4500 | 162.93 | 17.23 | 56.6 |
| MFE12038Q-H | 220 | 80-230 | 21.6 | 6000 | 217.62 | 29.65 | 63.5 |
Specifications subject to change without notice. Specifications are governed by the official approval sheet.

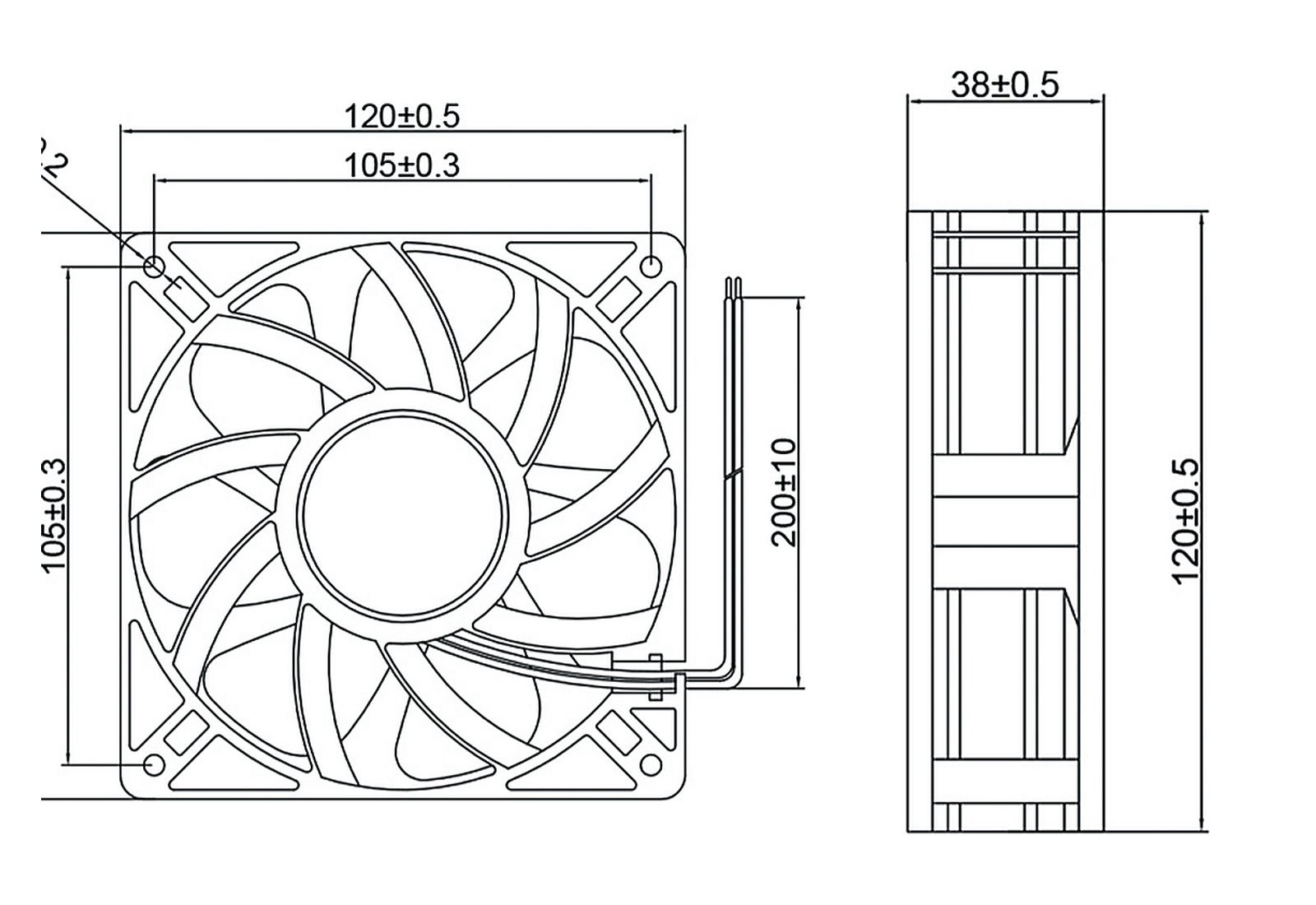

Dimension Drawing

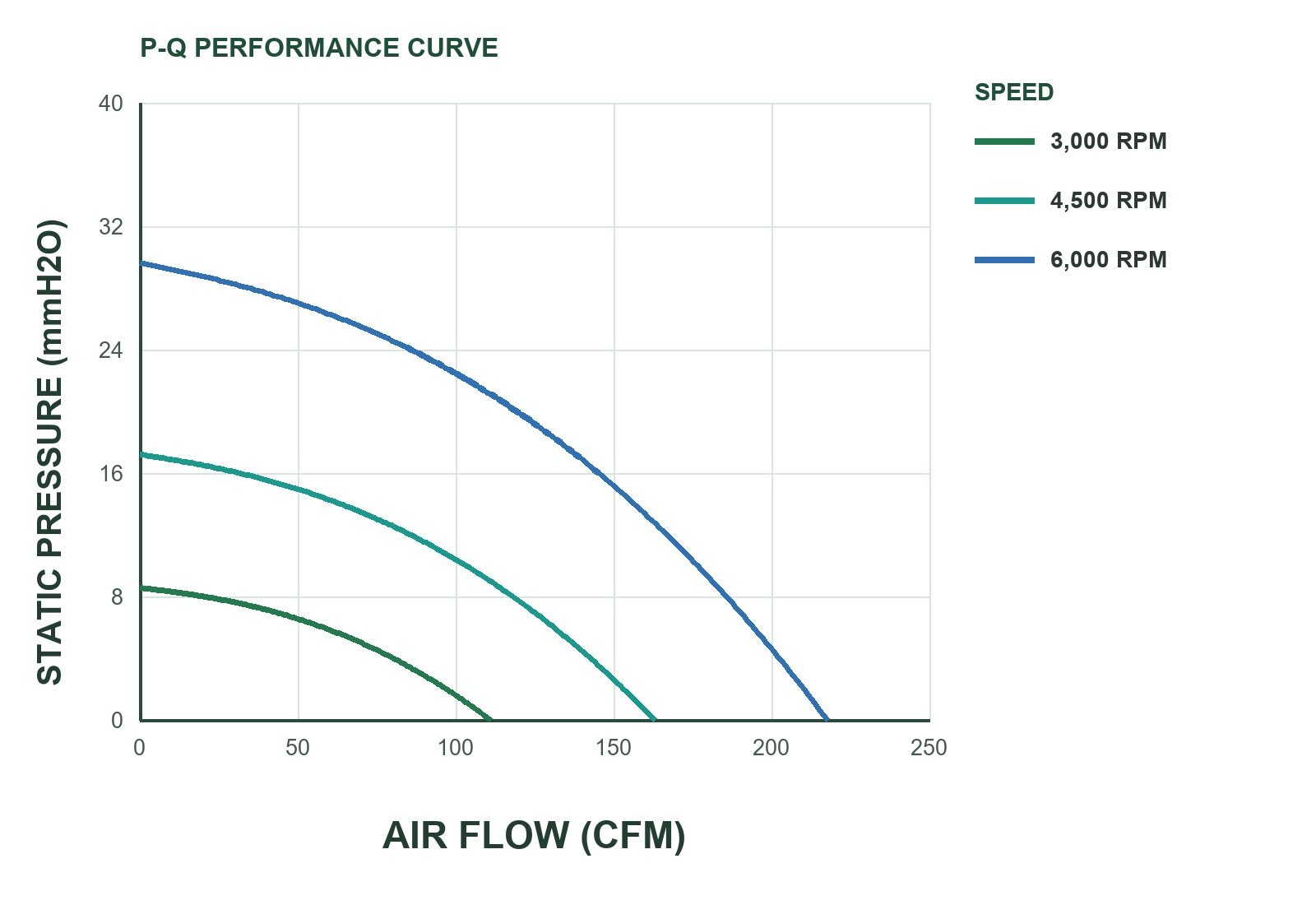

P&Q Curve
