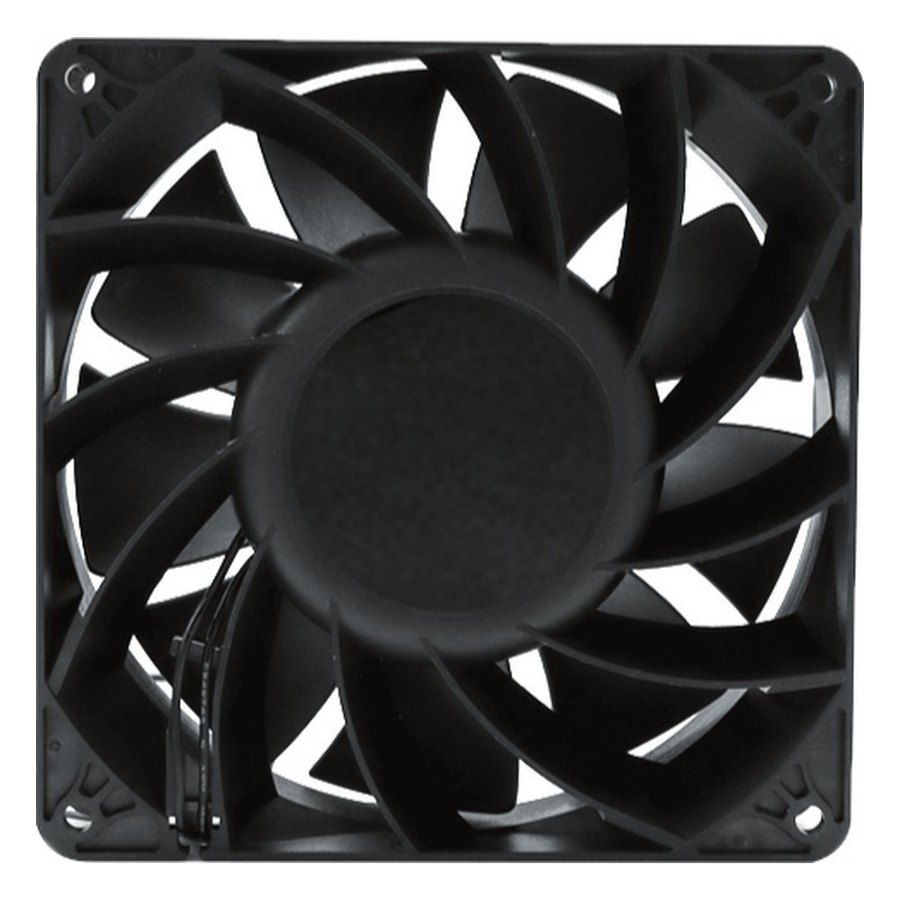

EC Fan
MFE14050
140 x 140 x 50 mm
Airflow
265.1 CFM
Speed
3200 RPM
Noise
62.5 dB(A)
Product Specifications
| Size | 140 x 140 x 50 mm |
| Voltage | AC 80-230 V (per complete part number) |
| Motor | EC electronically commutated motor |
| Frame | PBT Plastic, UL94V-0 |
| Impeller | PBT Plastic, UL94V-0 |
| Bearing Type | Ball Bearing |
| Control Method | VPWM DC voltage speed control (optional) |
| Operating Temperature | -10 ~ 70°C |
| Life Expectancy | 50,000 hours (25°C) |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Static Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|
| MFE14050-H | 220 | 80-230 | 28 | 3200 | 265.1 | 17.028 | 62.5 |
Specifications subject to change without notice. Specifications are governed by the official approval sheet.

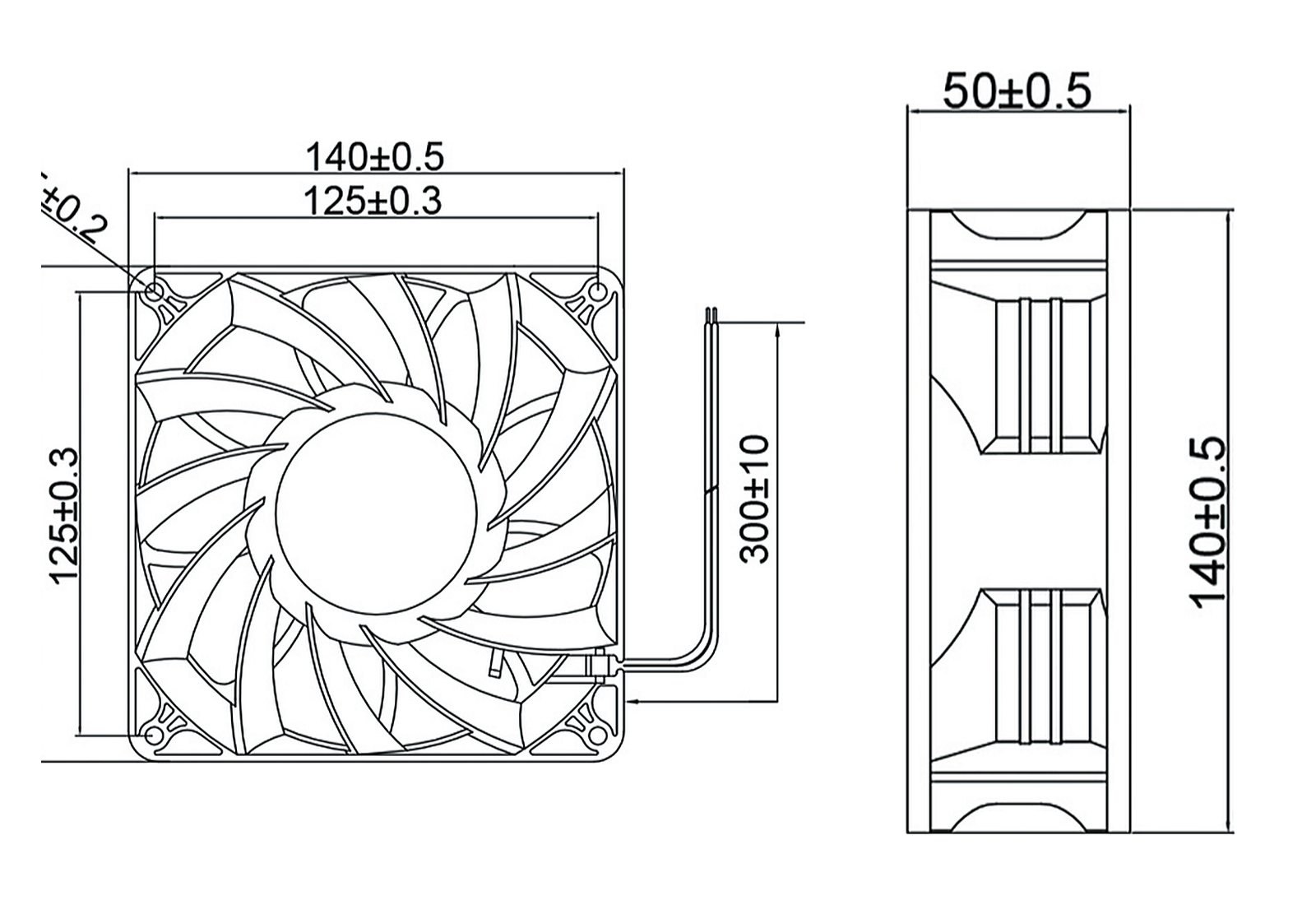

Dimension Drawing

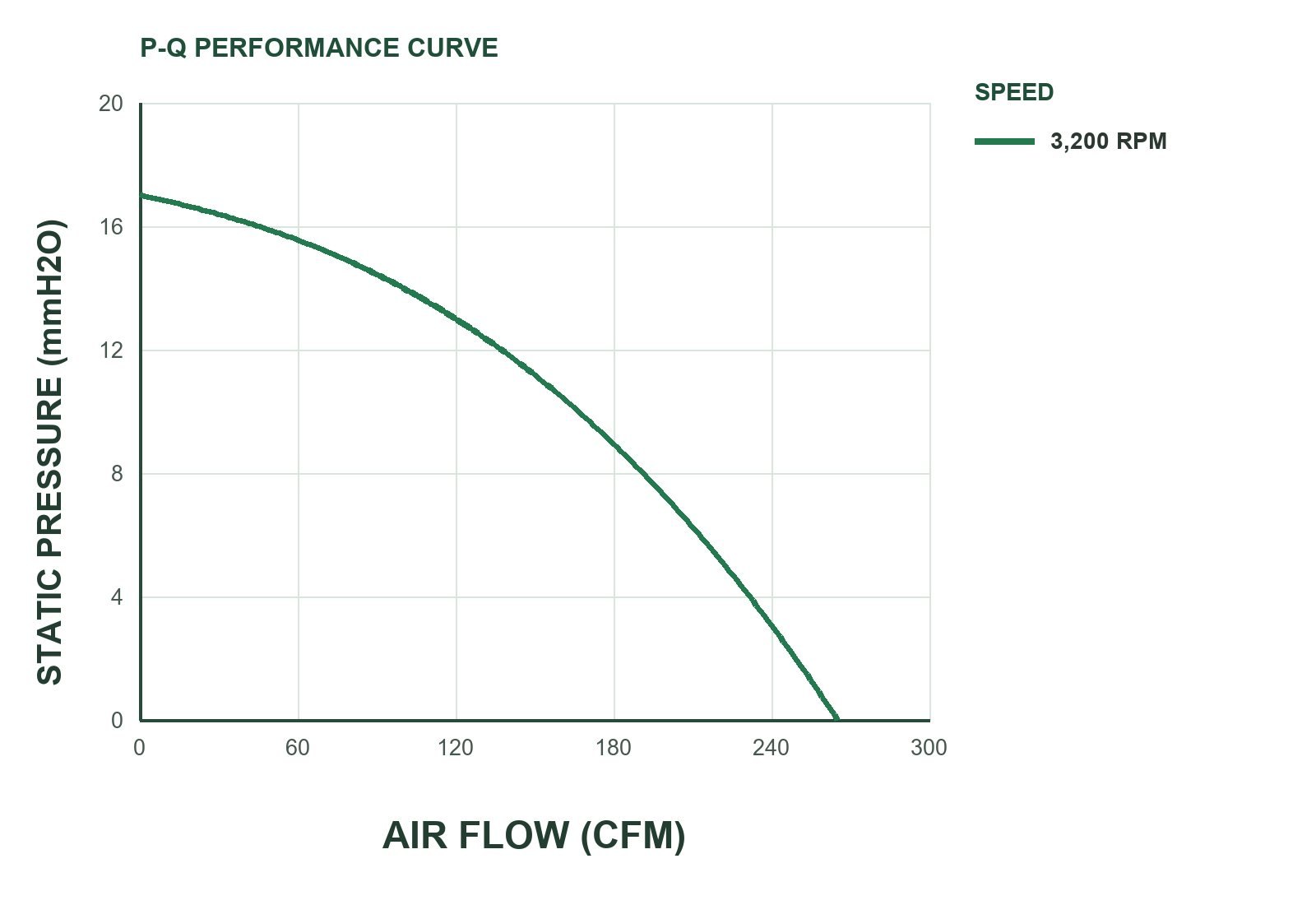

P&Q Curve
