EC Fan
MFE22060
220x220x60mm
Next-generation electronically commutated fan combining the efficiency of DC motors with AC power convenience. Features PWM speed control and dual AC/DC input compatibility.
Airflow
N/A
Speed
N/A
Noise
N/A
Full Specifications
| Model | MFE22060 |
| Dimensions | 220x220x60mm |
| Airflow | N/A |
| Speed | N/A |
| Noise Level | N/A |
| Voltage | AC 100~277V |
| Bearing | Ball Bearing |
| Protection Rating | — |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |

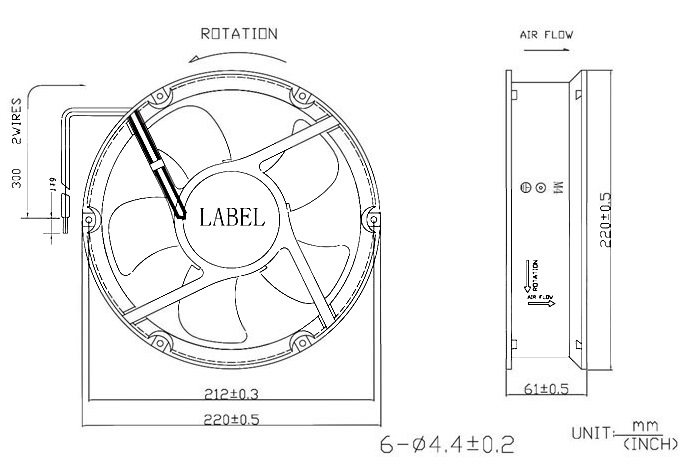

Dimension Drawing

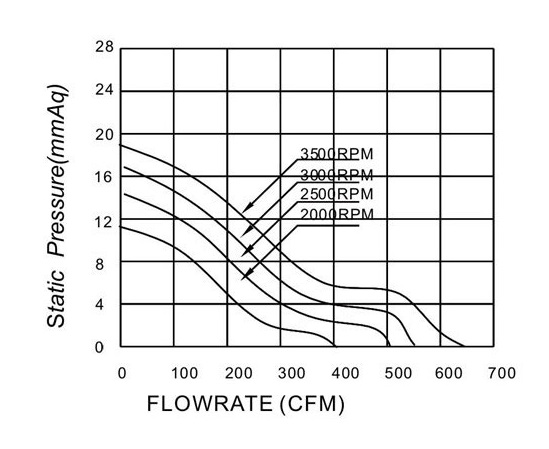

P&Q Curve
