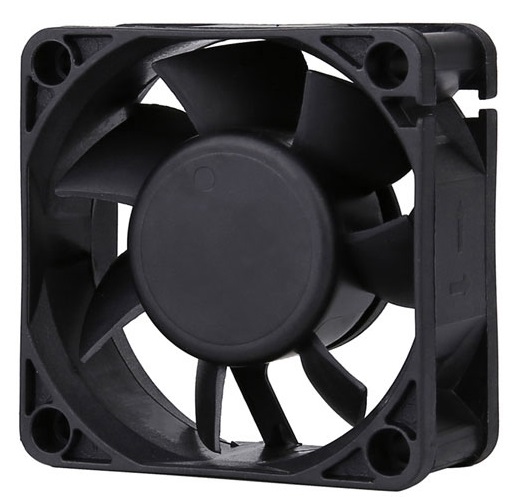

EC Fan
MFE6025
: 60x 60 x 25mm
Airflow
15.7~24.3 CFM
Speed
3000~4500 RPM
Noise
27.2~37.7 dB(A)
Product Specifications
| Size | : 60x 60 x 25mm |
| Voltage | AC 100~277V |
| Motor | EC (Electronically Commutated) |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|
| MFE6025-HB | 220 | 200 ~ 240 | 3 | 4500 | 24.3 | 4.63 | 37.7 |
| MFE6025-HS | 220 | 200 ~ 240 | 3 | 4500 | 24.3 | 4.63 | 37.7 |
| MFE6025-LB | 220 | 200 ~ 240 | 1.2 | 3000 | 15.7 | 2.12 | 27.2 |
| MFE6025-LMB | 220 | 200 ~ 240 | 2 | 3500 | 18.9 | 2.76 | 30.7 |
| MFE6025-LMS | 220 | 200 ~ 240 | 2 | 3500 | 18.9 | 2.76 | 30.7 |
| MFE6025-LS | 220 | 200 ~ 240 | 1.2 | 3000 | 15.7 | 2.12 | 27.2 |
| MFE6025-MB | 220 | 200 ~ 240 | 2.4 | 4000 | 21.5 | 3.64 | 34.3 |
| MFE6025-MS | 220 | 200 ~ 240 | 2.4 | 4000 | 21.5 | 3.64 | 34.3 |

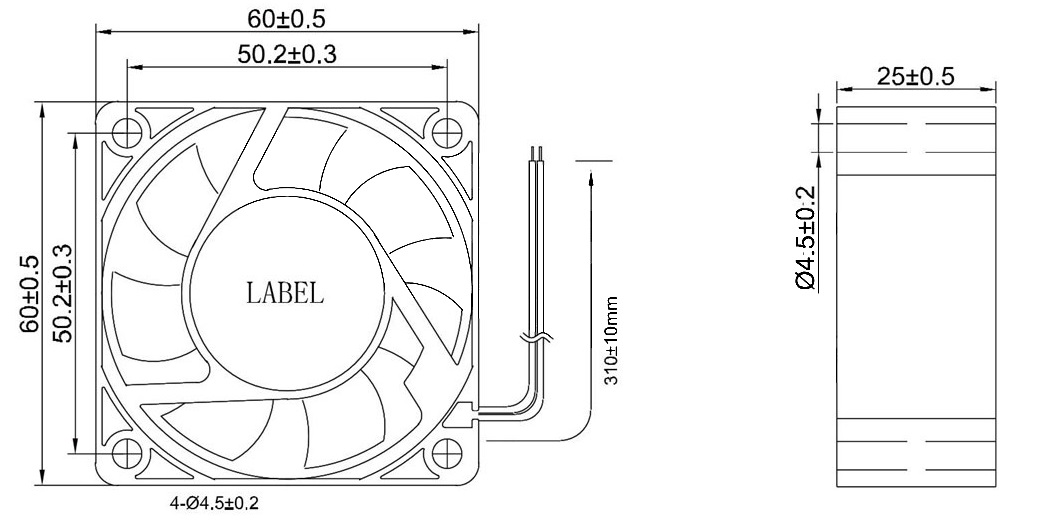

Dimension Drawing

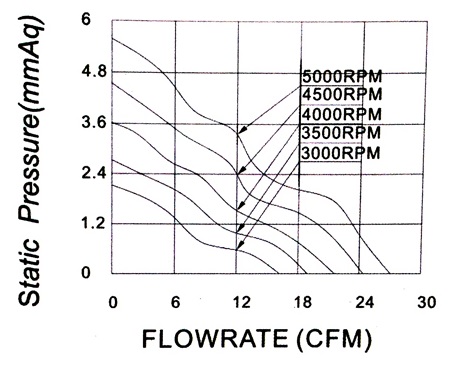

P&Q Curve
