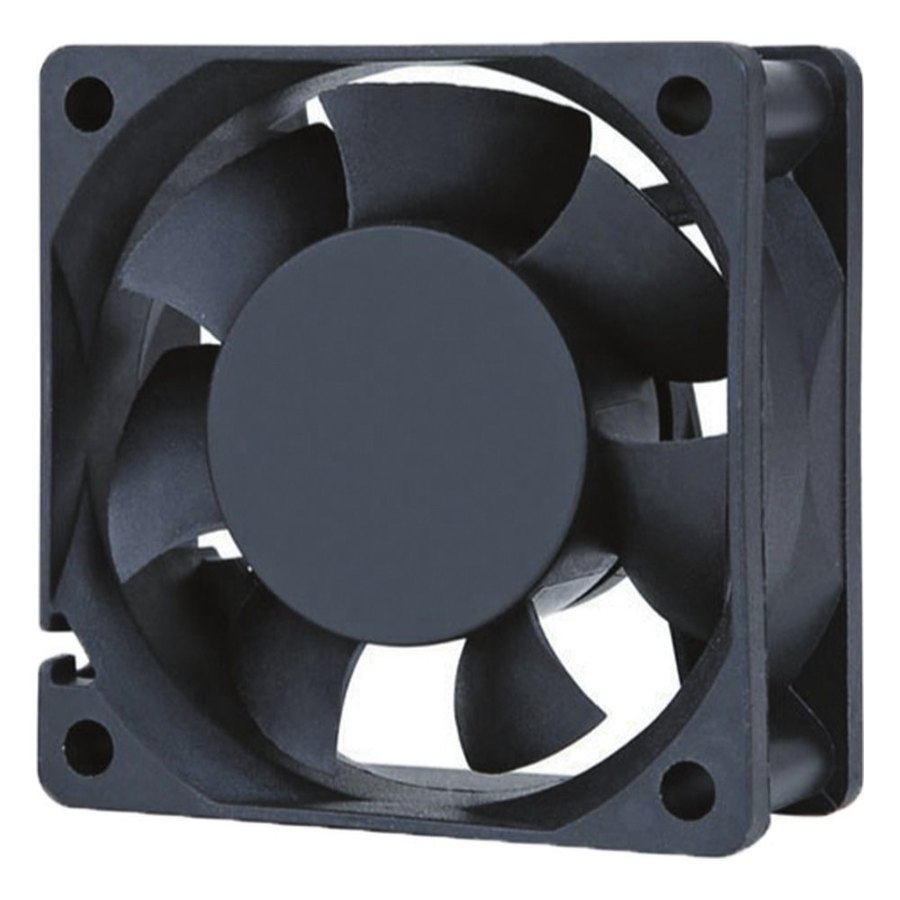

EC Fan
MFE6025C
60 x 60 x 25 mm
Airflow
12.3-18.6 CFM
Speed
3000-4500 RPM
Noise
24.2-34.3 dB(A)
Product Specifications
| Size | 60 x 60 x 25 mm |
| Voltage | AC 80-230 V (per complete part number) |
| Motor | EC electronically commutated motor |
| Frame | PBT Plastic, UL94V-0 |
| Impeller | PBT Plastic, UL94V-0 |
| Bearing Type | Ball Bearing |
| Control Method | VPWM DC voltage speed control (optional) |
| Operating Temperature | -10 ~ 70°C |
| Life Expectancy | 50,000 hours (25°C) |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Static Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|
| MFE6025C-L | 220 | 80-230 | 1.0 | 3000 | 12.3 | 2.12 | 24.2 |
| MFE6025C-M | 220 | 80-230 | 1.2 | 3500 | 14.1 | 2.84 | 27.4 |
| MFE6025C-H | 220 | 80-230 | 1.9 | 4500 | 18.6 | 4.61 | 34.3 |
Specifications subject to change without notice. Specifications are governed by the official approval sheet.

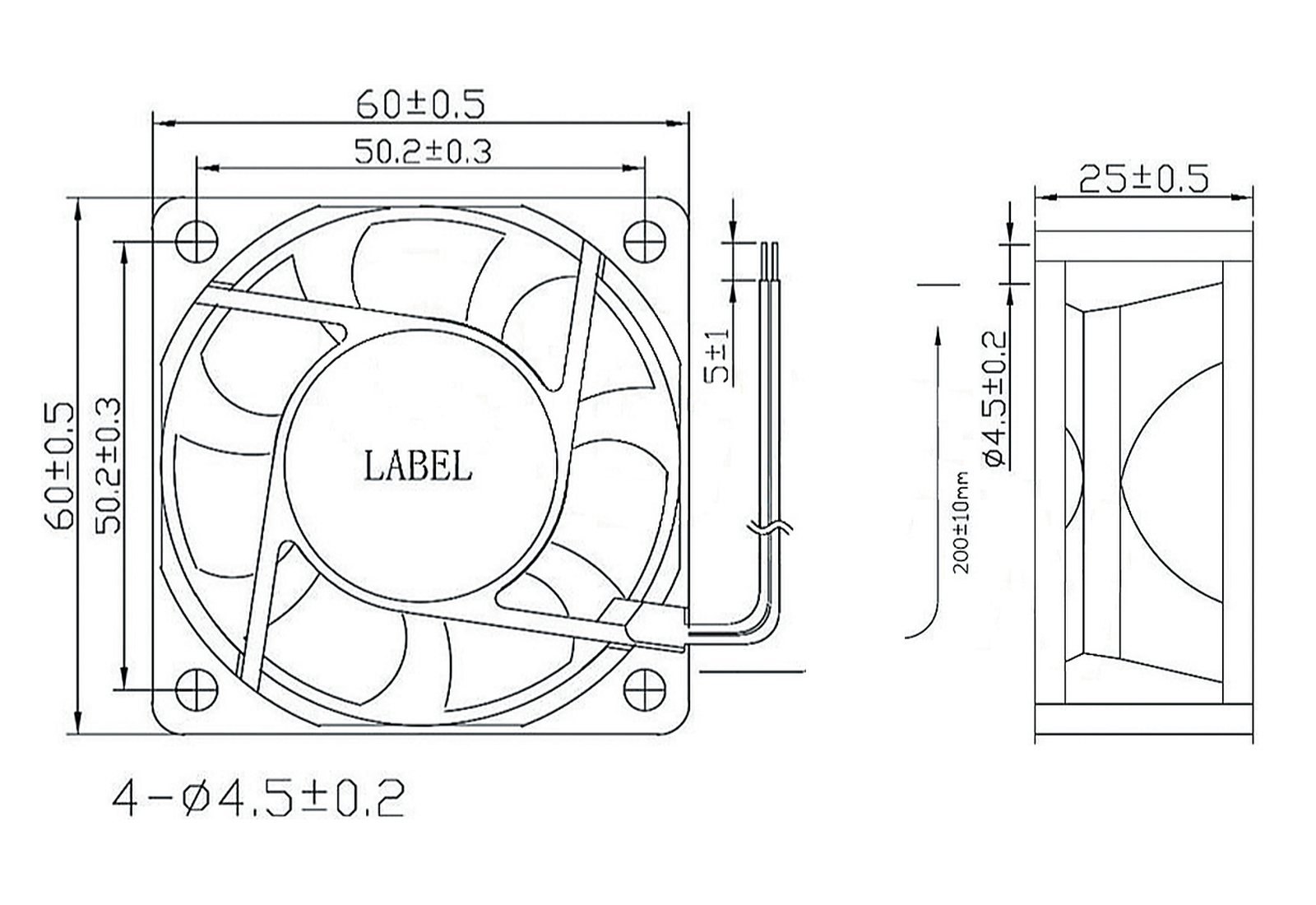

Dimension Drawing

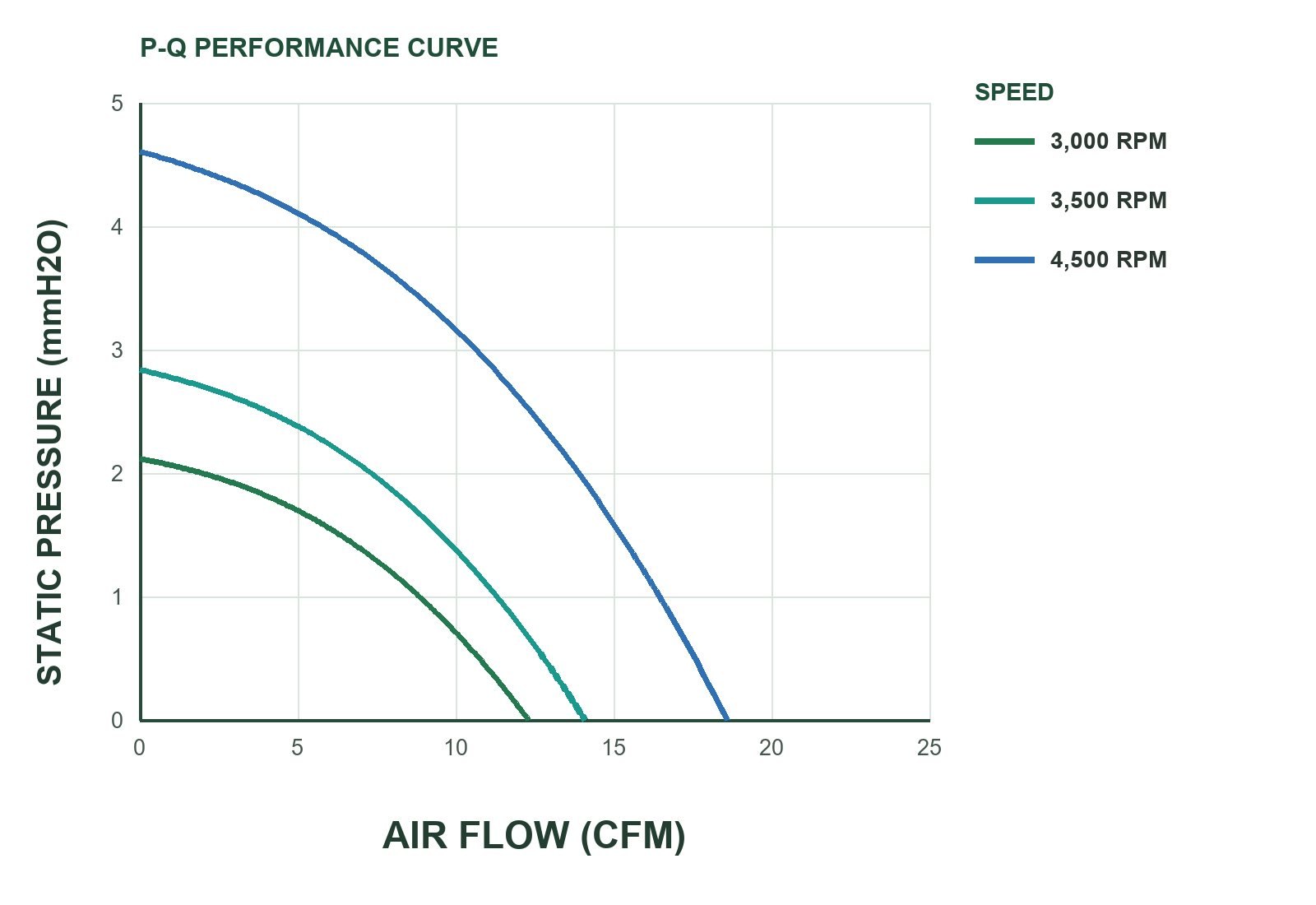

P&Q Curve
