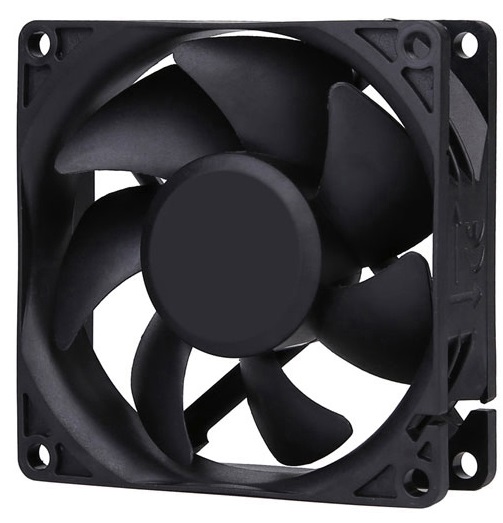

EC Fan
MFE8025
: 80x 80 x 25mm
Airflow
24.4~44.3 CFM
Speed
2000~3500 RPM
Noise
25.8~36.9 dB(A)
Product Specifications
| Size | 80 x 80 x 25 mm |
| Voltage | 80V |
| Motor | Brushless DC (EC Motor) |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Voltage (V) | Current (A) | Power (W) | Speed (RPM) | Airflow (CFM) | Pressure (mmH₂O) | Noise (dB-A) | Bearing |
|---|---|---|---|---|---|---|---|---|
| MFE8025-HB | 80-230 | nan | 8.8 | 3000 | 37.9 | 4 | 34.2 | BALL |
| MFE8025-HHB | 80-230 | nan | 8.8 | 3500 | 44.3 | 5.3 | 36.9 | BALL |
| MFE8025-LB | 80-230 | nan | 6.6 | 2000 | 24.4 | 2 | 25.8 | BALL |
| MFE8025-MB | 80-230 | nan | 6.6 | 2500 | 31.4 | 2.8 | 29.1 | BALL |
| MFE8025-HS | 80-230 | nan | 8.8 | 3000 | 37.9 | 4 | 34.2 | SLEEVE |
| MFE8025-HHS | 80-230 | nan | 8.8 | 3500 | 44.3 | 5.3 | 36.9 | SLEEVE |
| MFE8025-LS | 80-230 | nan | 6.6 | 2000 | 24.4 | 2 | 25.8 | SLEEVE |
| MFE8025-MS | 80-230 | nan | 6.6 | 2500 | 31.4 | 2.8 | 29.1 | SLEEVE |

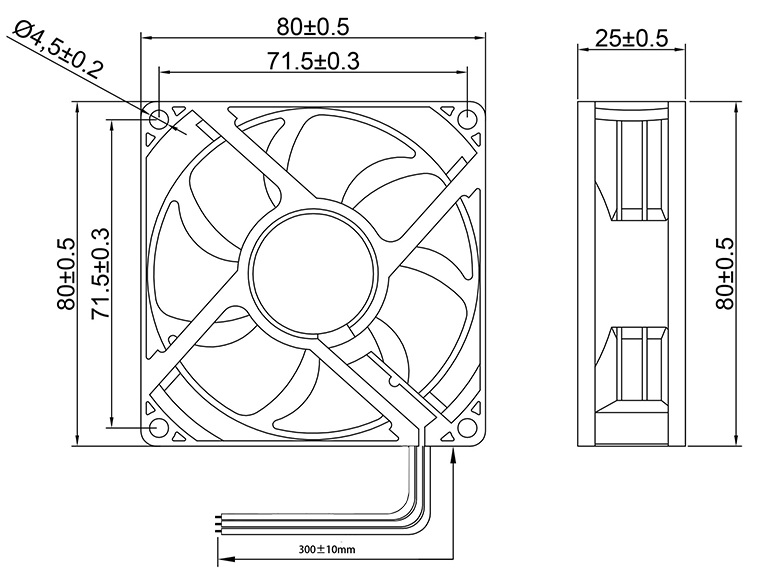

Dimension Drawing

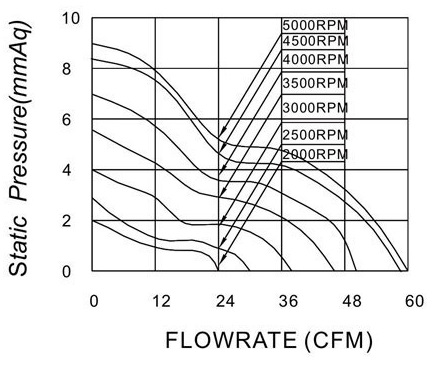

P&Q Curve
