DC Centrifugal Fan
MFL10025
Ø 100 x 25 m
Airflow
24.1~43.5 CFM
Speed
2500~4500 RPM
Noise
31~55.9 dB(A)
Product Specifications
| Size | Ø 100 x 25 m |
| Motor | Brushless DC |
| Voltage | 12V / 24V / 48V DC |
| Frame | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFL10025D1-L | 12 | 7 ~13.5 | 0.12 | 1.44 | 2500 | 24.1 | 13.16 | 31 |
| MFL10025D1-M | 12 | 7 ~13.5 | 0.24 | 2.88 | 3000 | 29 | 15.79 | 37.2 |
| MFL10025D1-H | 12 | 7 ~13.5 | 0.3 | 3.6 | 3500 | 33.8 | 18.42 | 43.5 |
| MFL10025D1-HH | 12 | 7 ~13.5 | 0.4 | 4.8 | 4000 | 38.6 | 21.06 | 49.7 |
| MFL10025D1-VH | 12 | 7 ~13.5 | 0.53 | 6.36 | 4500 | 43.5 | 23.69 | 55.9 |
| MFL10025D2-L | 24 | 18 ~ 26.5 | 0.06 | 1.44 | 2500 | 24.1 | 13.16 | 31 |
| MFL10025D2-M | 24 | 18 ~ 26.5 | 0.12 | 2.88 | 3000 | 29 | 15.79 | 37.2 |
| MFL10025D2-H | 24 | 18 ~ 26.5 | 0.15 | 3.6 | 3500 | 33.8 | 18.42 | 43.5 |
| MFL10025D2-HH | 24 | 18 ~ 26.5 | 0.2 | 4.8 | 4000 | 38.6 | 21.06 | 49.7 |
| MFL10025D2-VH | 24 | 18 ~ 26.5 | 0.27 | 6.36 | 4500 | 43.5 | 23.69 | 55.9 |

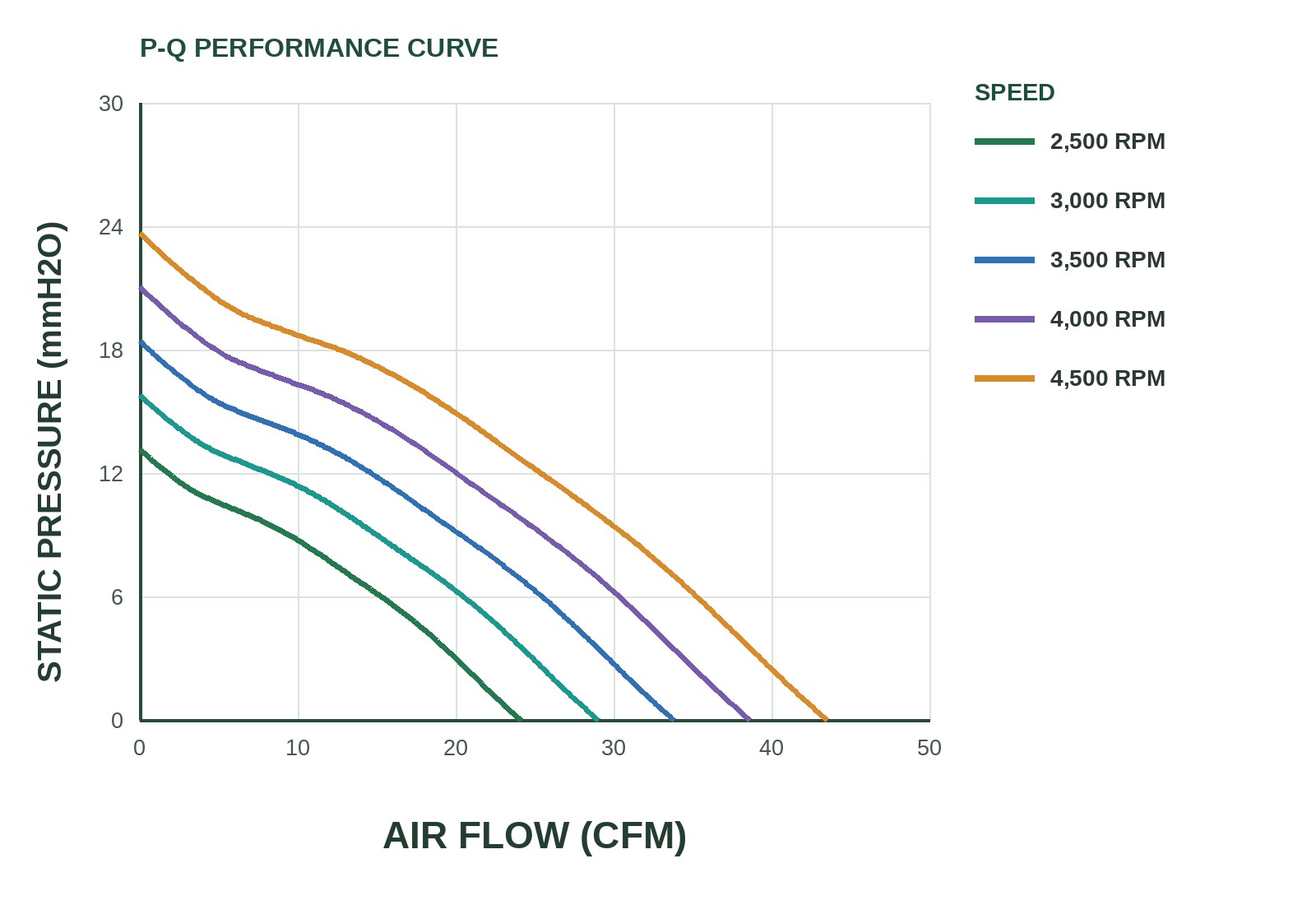

P&Q Curve
