DC Centrifugal Fan
MFL12025
Ø 120 x 25 m
Airflow
57.3~69.7 CFM
Speed
2500~3500 RPM
Noise
45~53.5 dB(A)
Product Specifications
| Size | Ø 120 x 25 m |
| Motor | Brushless DC |
| Voltage | 12V / 24V / 48V DC |
| Frame | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFL12025D1-M | 12 | 7~13.5 | 0.4 | 4.8 | 2500 | 57.29 | 13.95 | 45 |
| MFL12025D1-H | 12 | 7~13.5 | 0.5 | 6 | 3000 | 68.14 | 17.74 | 49.6 |
| MFL12025D1-HH | 12 | 7~13.5 | 0.7 | 8.4 | 3500 | 69.69 | 21.18 | 53.5 |
| MFL12025D2-M | 24 | 18 ~ 26.5 | 0.25 | 6 | 2500 | 57.29 | 13.95 | 45 |
| MFL12025D2-H | 24 | 18 ~ 26.5 | 0.35 | 8.4 | 3000 | 68.14 | 17.74 | 49.6 |
| MFL12025D2-HH | 24 | 18 ~ 26.5 | 0.53 | 12.72 | 3500 | 69.69 | 21.18 | 53.5 |
| MFL12025D4-M | 48 | 36 ~ 54 | 0.15 | 7.2 | 2500 | 57.29 | 13.95 | 45 |
| MFL12025D4-H | 48 | 36 ~ 54 | 0.2 | 9.6 | 3000 | 68.14 | 17.74 | 49.6 |
| MFL12025D4-HH | 48 | 36 ~ 54 | 0.32 | 14.4 | 3500 | 69.69 | 21.18 | 53.5 |
Dimension Drawing

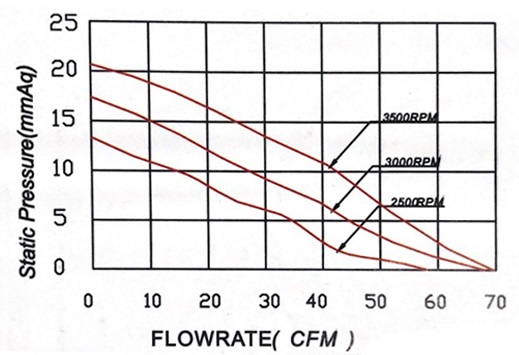

P&Q Curve
