DC Centrifugal Fan
MFL12030
Ø 120 x 30 m
Airflow
45.3 CFM
Speed
3700 RPM
Noise
45 dB(A)
Product Specifications
| Size | Ø 120 x 30 m |
| Motor | Brushless DC |
| Voltage | 12V / 24V / 48V DC |
| Frame | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFL12030D1-H | 12 | 7 ~ 13.5 | 0.74 | 8.88 | 3700 | 45.3 | 7.58 | 45 |
| MFL12030D2-H | 24 | 13 ~ 26.8 | 0.38 | 8.88 | 3700 | 45.3 | 7.58 | 45 |
| MFL12030D1-H | 12 | 7 ~ 13.5 | 1.4 | 16.8 | 3600 | 107.46 | 30.56 | 63.4 |
| MFL12030D2-H | 24 | 13 ~ 26.8 | 0.7 | 16.8 | 3600 | 107.46 | 30.56 | 63.4 |
| MFL12030D1-H | 48 | 36-54 | 0.35 | 16.8 | 3600 | 107.46 | 30.56 | 63.4 |
Dimension Drawing

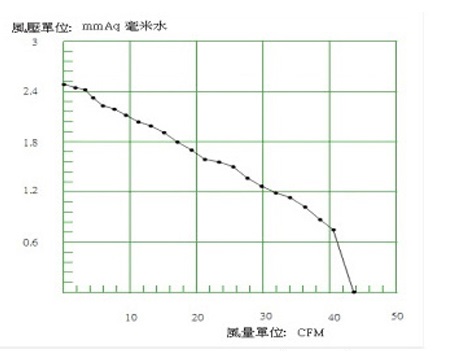

P&Q Curve
