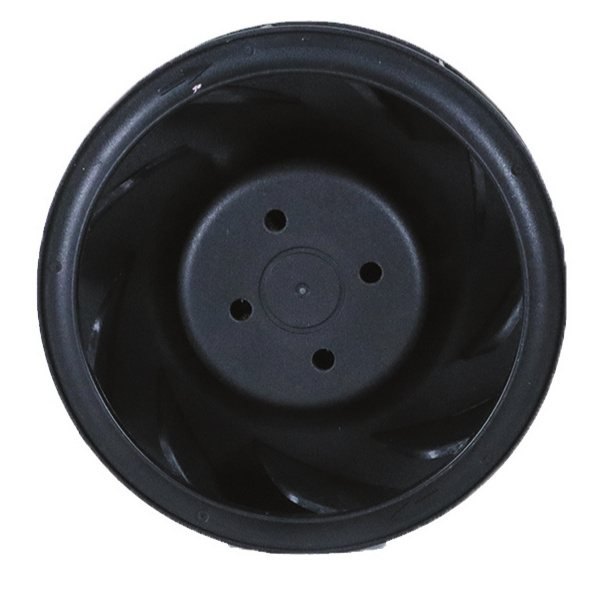

DC Centrifugal Fan
MFL12054
Ø120 x 54 mm
Airflow
122.36~222 CFM
Speed
4000~6100 RPM
Noise
62.3~69.2 dB(A)
Product Specifications
| Size | Ø120 x 54 mm |
| Motor | DC Brushless |
| Voltage | 24 / 48 VDC |
| Frame | PBT Plastic, UL94V-0 |
| Bearing Type | Ball Bearing |
| Operating Temperature | -10 ~ 70°C |
| Life Expectancy | 50,000 hours (25°C) |
| Weight | 170 g |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Static Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFL12054D2-L | 24 | 12 ~ 26 | 0.85 | 20.4 | 4000 | 122.36 | 26.05 | 62.3 |
| MFL12054D2-M | 24 | 12 ~ 26 | 2.13 | 51 | 5200 | 188 | 44.52 | 66.5 |
| MFL12054D4-H | 48 | 36 ~ 50 | 1.6 | 76.8 | 6100 | 222 | 73.96 | 69.2 |
Specifications subject to change without notice. Specifications are governed by the official approval sheet.

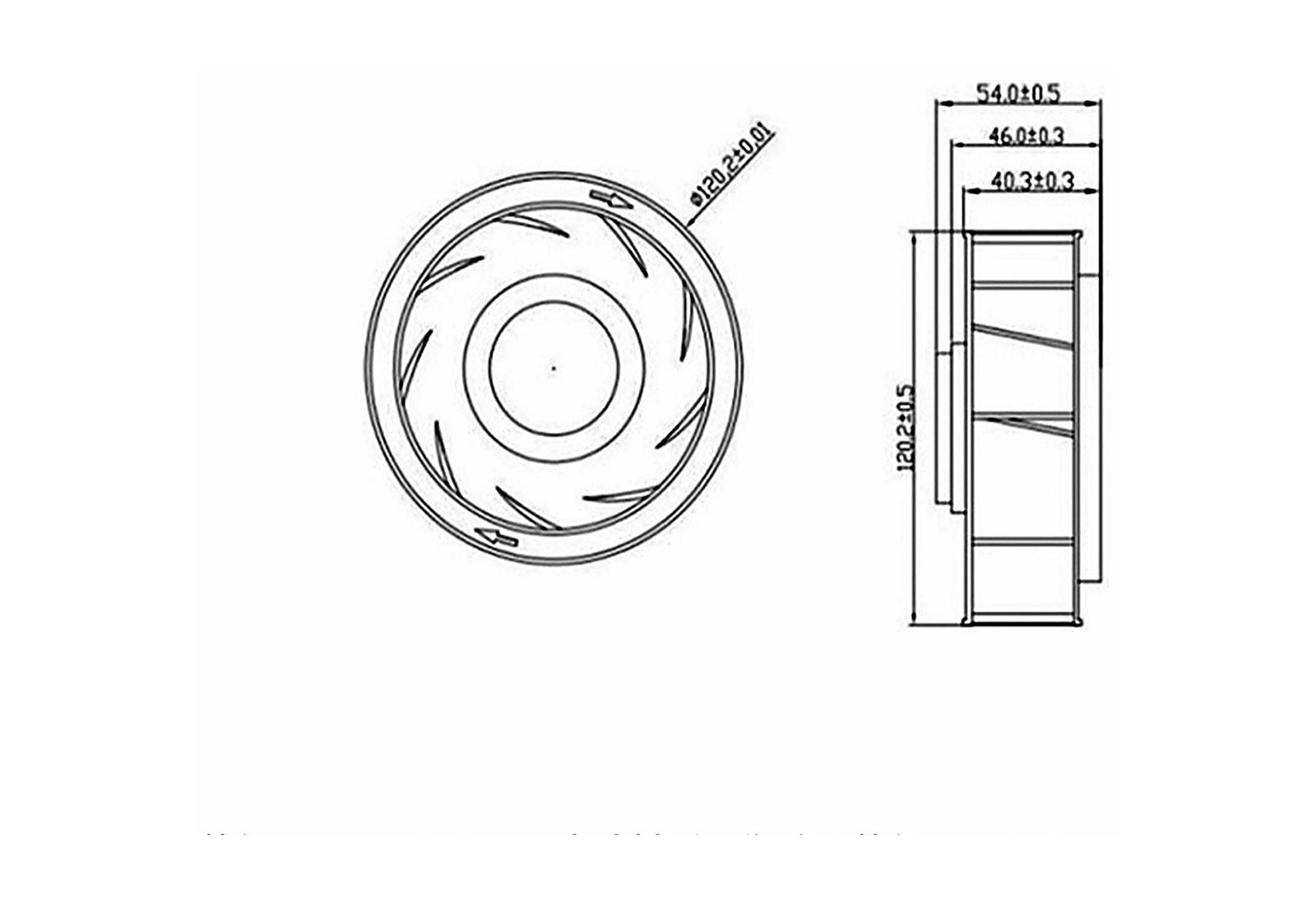

Dimension Drawing

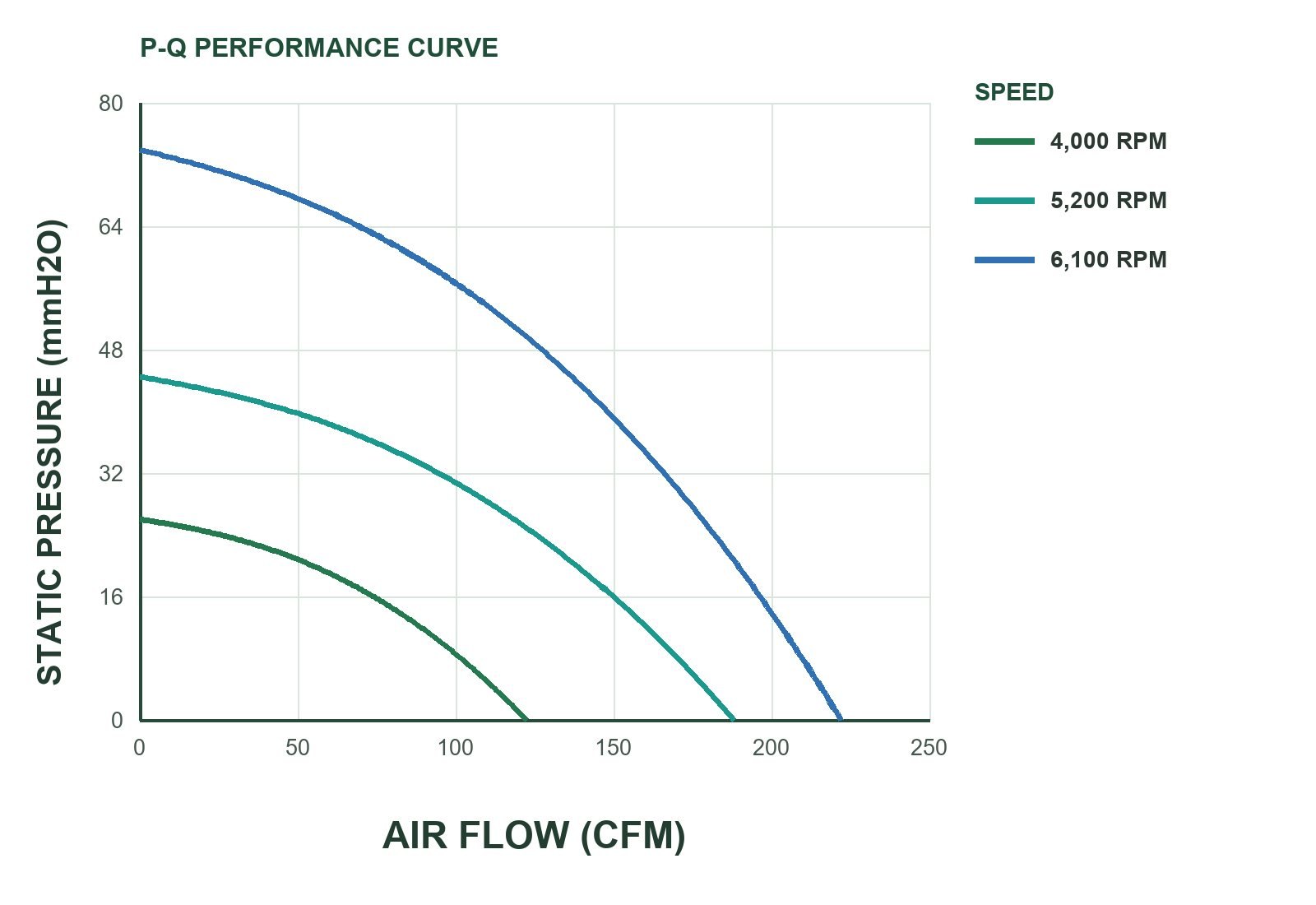

P&Q Curve
