DC Centrifugal Fan
MFL15035
Ø150x35mm
DC centrifugal fan engineered for applications requiring higher static pressure and directed airflow. Features efficient backward-curved impeller design with low noise operation.
Airflow
N/A
Speed
N/A
Noise
N/A
Full Specifications
| Model | MFL15035 |
| Dimensions | Ø150x35mm |
| Airflow | N/A |
| Speed | N/A |
| Noise Level | N/A |
| Voltage | 12V / 24V / 48V DC |
| Bearing | Ball Bearing |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |

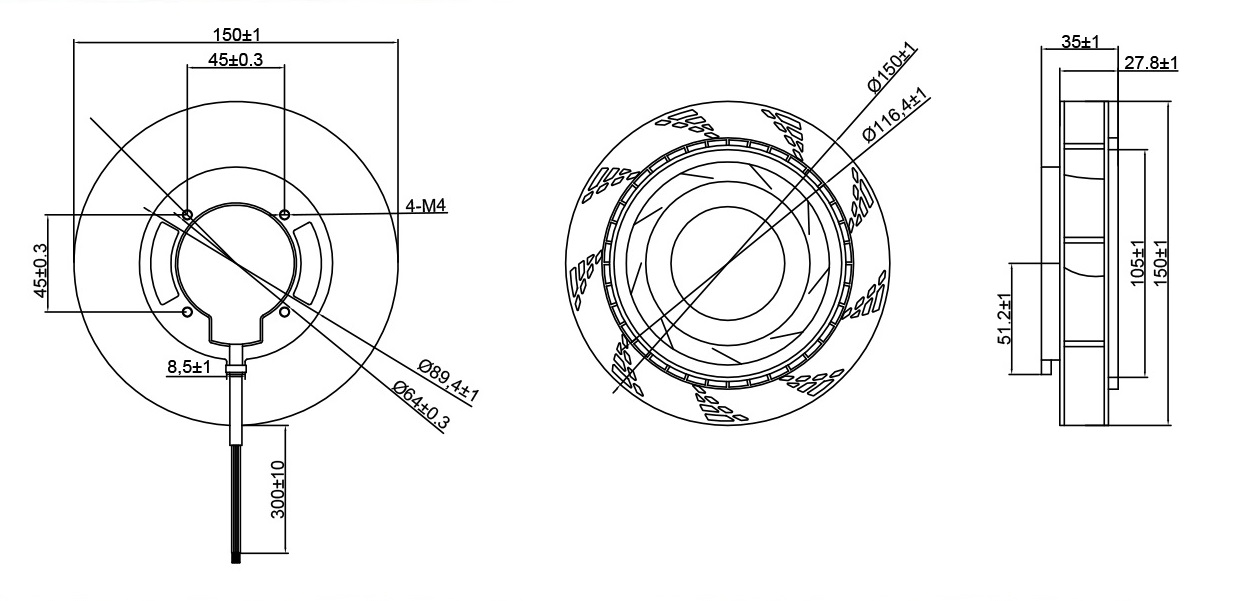

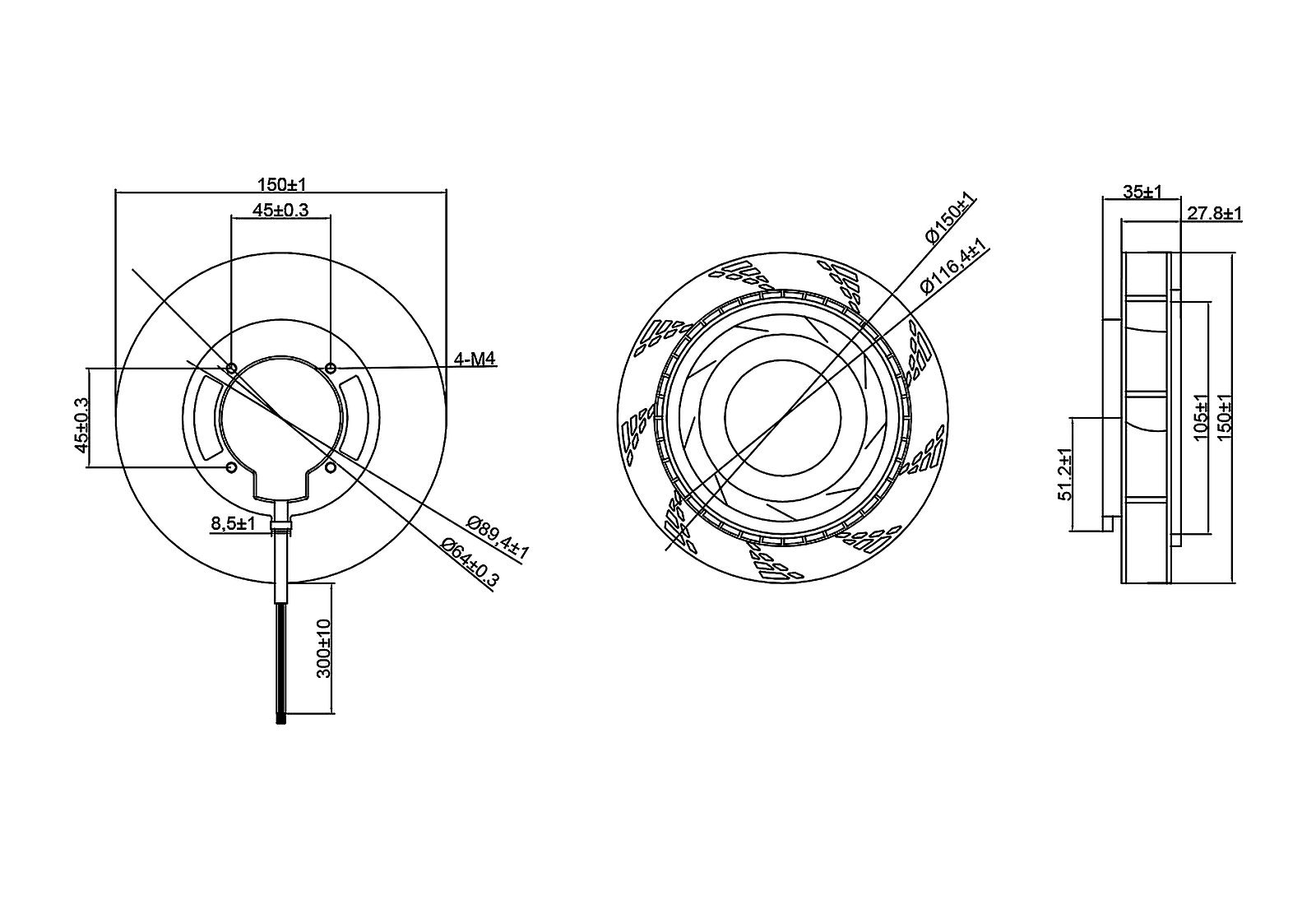

Dimension Drawing

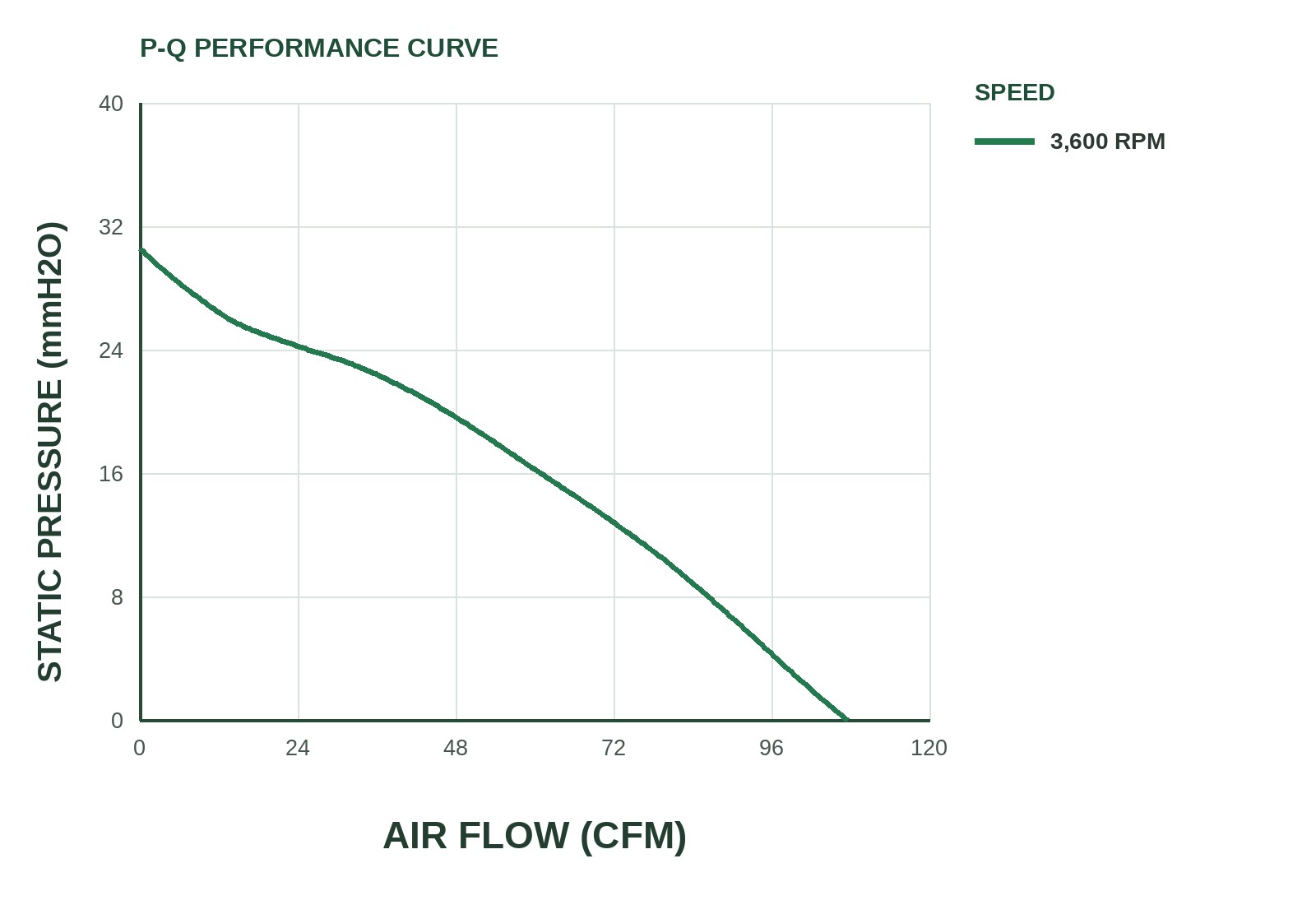

P&Q Curve
