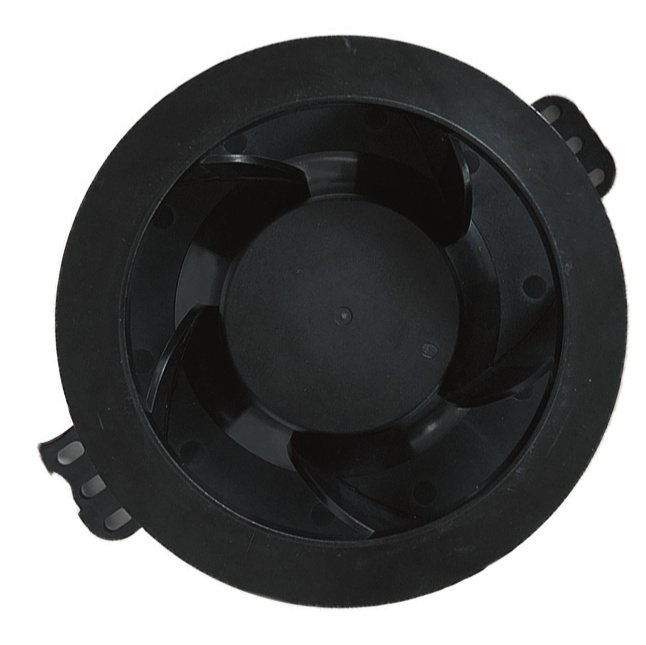

DC Centrifugal Fan
MFL15050
Ø150 x 50 mm
Airflow
124.77 CFM
Speed
1450 RPM
Noise
41.8 dB(A)
Product Specifications
| Size | Ø150 x 50 mm |
| Motor | DC Brushless |
| Voltage | 24 VDC |
| Frame | PBT Plastic, UL94V-0 |
| Bearing Type | Ball Bearing |
| Operating Temperature | -10 ~ 70°C |
| Life Expectancy | 50,000 hours (25°C) |
| Weight | 270 g |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Static Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFL15050D2-L | 24 | 18 ~ 26.5 | 0.23 | 5.52 | 1450 | 124.77 | 5.95 | 41.8 |
Specifications subject to change without notice. Specifications are governed by the official approval sheet.

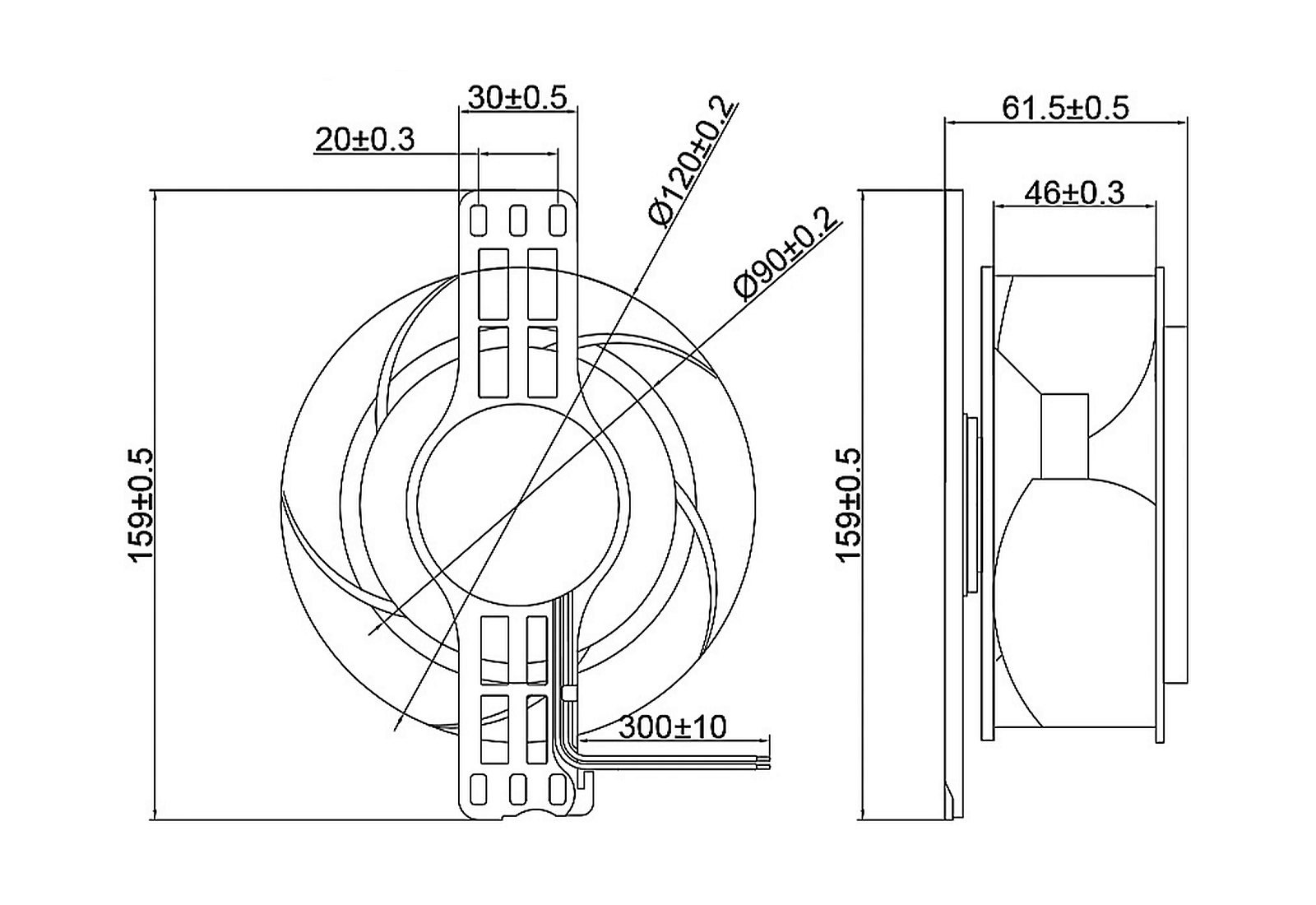

Dimension Drawing

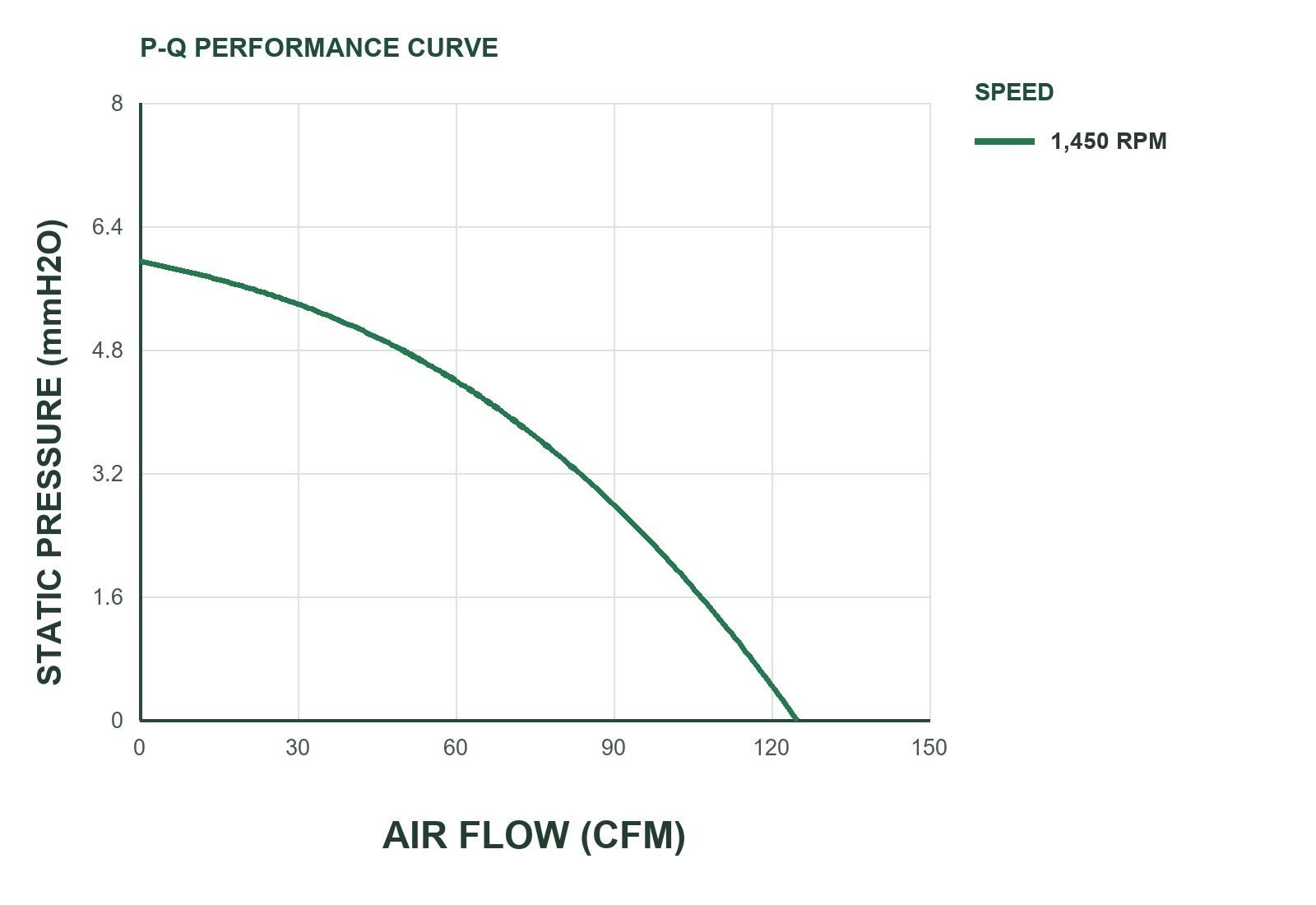

P&Q Curve
