DC Centrifugal Fan
MFL22599
Ø 225 x 99 m
Airflow
376.7~703.2 CFM
Speed
1500~2800 RPM
Noise
37.9~70.7 dB(A)
Product Specifications
| Size | Ø 225 x 99 m |
| Motor | Brushless DC |
| Voltage | 12V / 24V / 48V DC |
| Frame | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFL22599D1-L | 24 | 18 ~ 26.5 | 4.2 | 100.8 | 1500 | 376.7 | 45.4 | 37.9 |
| MFL22599D1-M | 24 | 18 ~ 26.5 | 5.5 | 132 | 2000 | 502.3 | 60.5 | 50.5 |
| MFL22599D1-H | 24 | 18 ~ 26.5 | 7 | 168 | 2800 | 703.2 | 84.7 | 70.7 |
| MFL22599D2-L | 48 | 36 ~ 54 | 2 | 96 | 1500 | 376.7 | 45.4 | 37.9 |
| MFL22599D2-M | 48 | 36 ~ 54 | 2.8 | 134.4 | 2000 | 502.3 | 60.5 | 50.5 |
| MFL22599D2-H | 48 | 36 ~ 54 | 3.8 | 182.4 | 2700 | 678.7 | 81.7 | 68.2 |

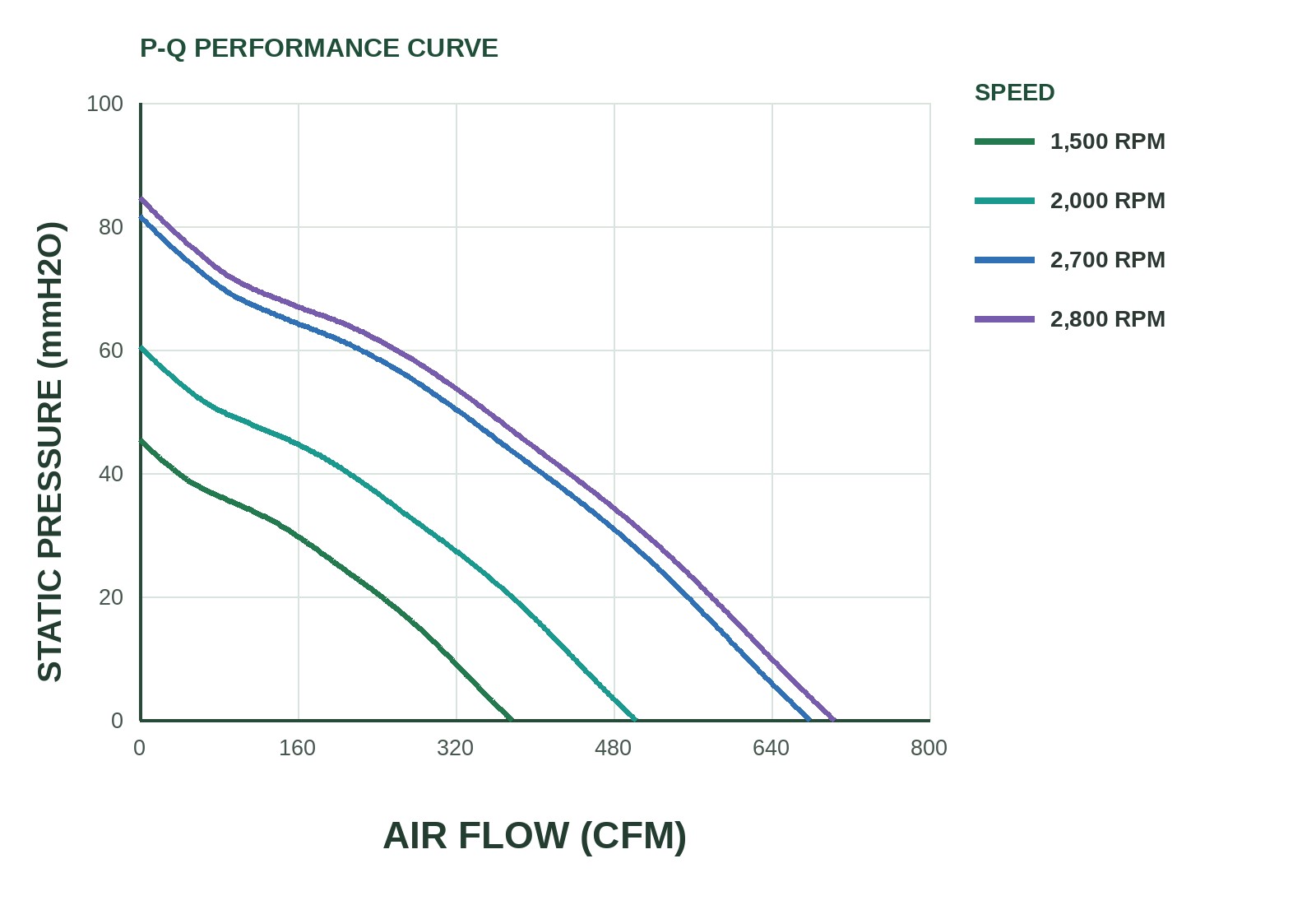

P&Q Curve
