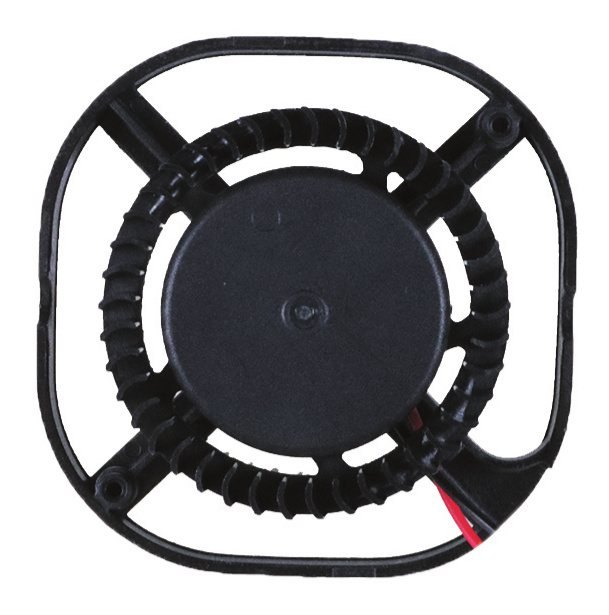

DC Centrifugal Fan
MFL6025
60 x 60 x 25 mm
Airflow
6.71~7.88 CFM
Speed
3200~3700 RPM
Noise
34~39 dB(A)
Product Specifications
| Size | 60 x 60 x 25 mm |
| Motor | DC Brushless |
| Voltage | 5 / 24 VDC |
| Frame | PBT Plastic, UL94V-0 |
| Bearing Type | Ball Bearing |
| Operating Temperature | -10 ~ 70°C |
| Life Expectancy | 50,000 hours (25°C) |
| Weight | 161 g |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Static Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFL6025D05-M | 5 | 3.6 ~ 6.8 | 0.24 | 1.2 | 3200 | 6.71 | 10.88 | 34 |
| MFL6025D2-H | 24 | 18 ~ 26.5 | 0.06 | 1.5 | 3700 | 7.88 | 15.49 | 39 |
Specifications subject to change without notice. Specifications are governed by the official approval sheet.

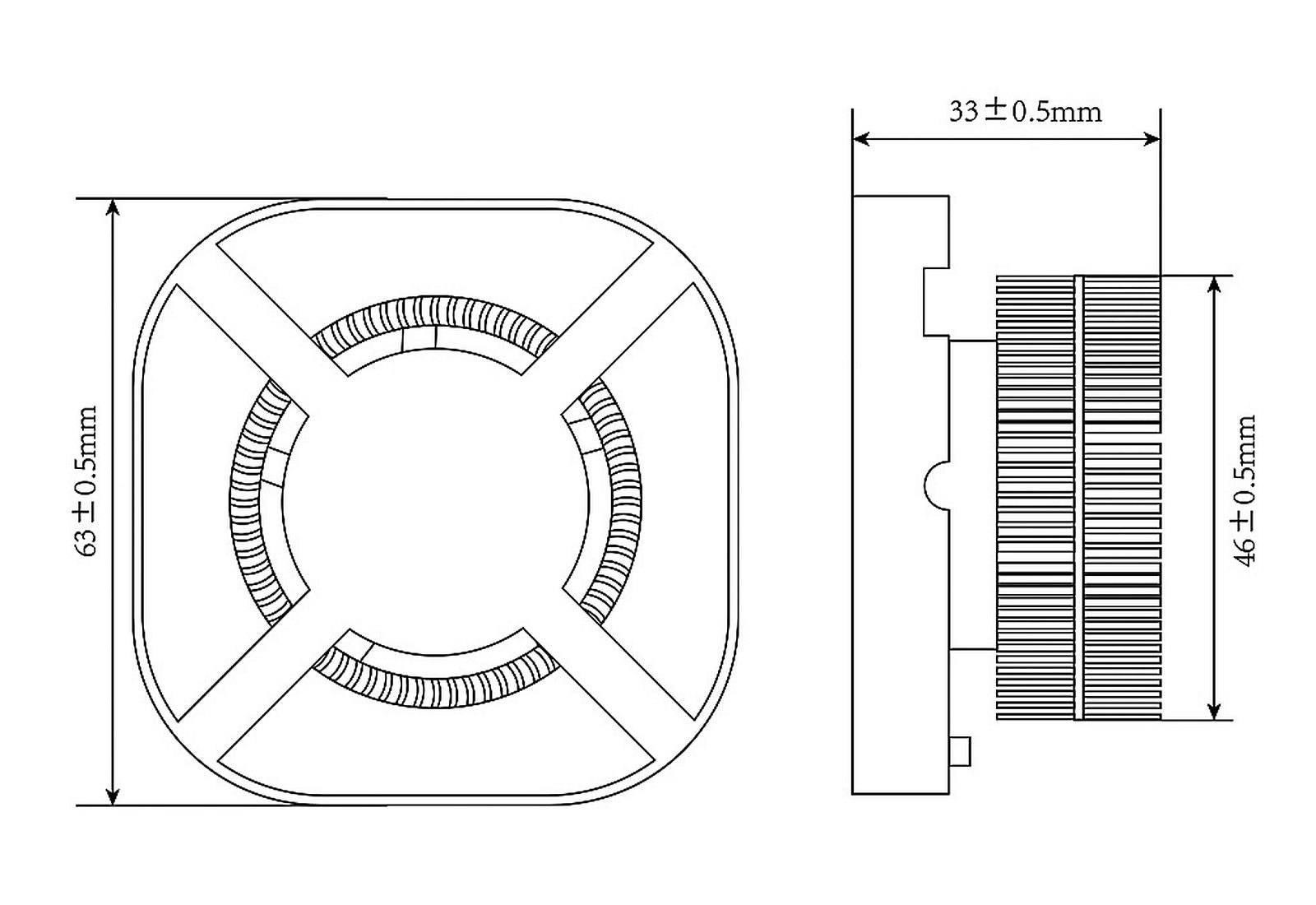

Dimension Drawing

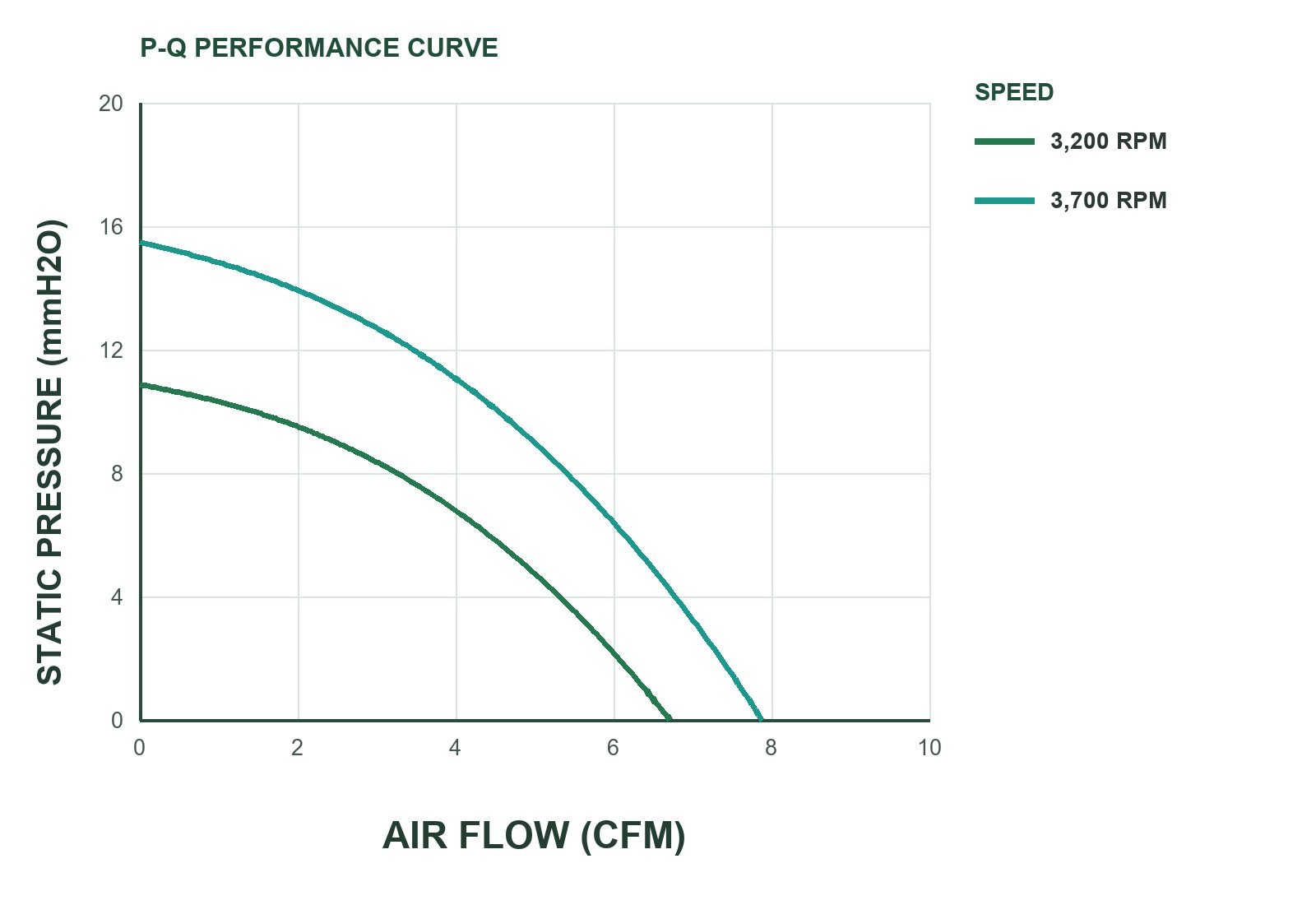

P&Q Curve
