DC Centrifugal Fan
MFL7020
Ø 70 x 20 m
Airflow
39.9 CFM
Speed
9200 RPM
Noise
61 dB(A)
Product Specifications
| Size | Ø 70 x 20 m |
| Motor | Brushless DC |
| Voltage | 12V / 24V / 48V DC |
| Frame | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFL7020D1-H | 12 | 7 ~ 13.5 | 0.2 | 2.4 | 3600 | 53.7 | 5.43 | 39.2 |
| MFL7020D2-H | 24 | 18 ~ 27 | 0.1 | 2.4 | 3600 | 53.7 | 5.43 | 39.2 |
| MFL7020D4-H | 48 | 38 ~ 53 | 0.05 | 2.4 | 3600 | 53.7 | 5.43 | 39.2 |
| MFL7020D1-H | 12 | 7 ~ 13.5 | 0.9 | 10.8 | 9200 | 39.9 | 56.89 | 61 |
| MFL7020D2-H | 24 | 13 ~ 26.8 | 0.45 | 10.8 | 9200 | 39.9 | 56.89 | 61 |

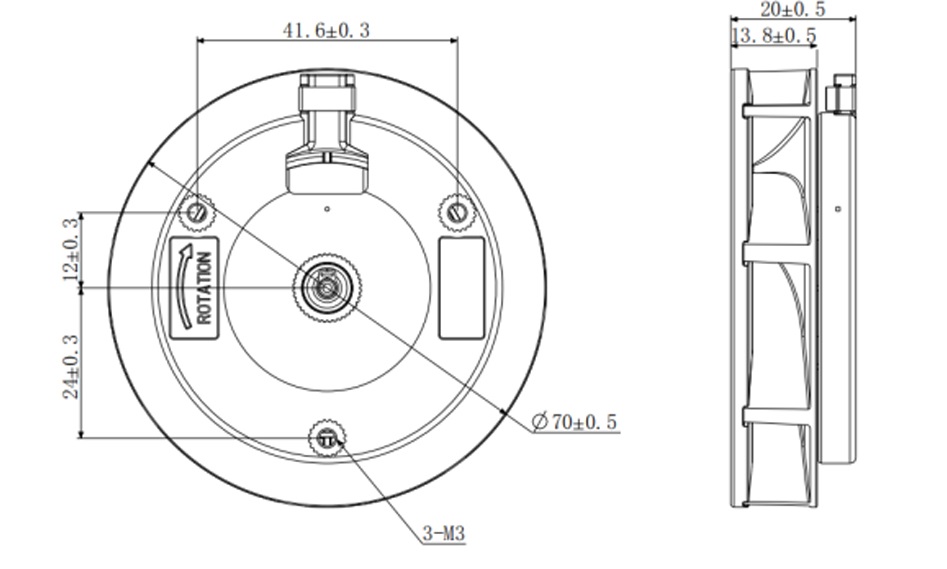

Dimension Drawing
P&Q Curve
