DC Centrifugal Fan
MFL9025
Ø90 x 25 mm
Airflow
32.6 CFM
Speed
4200 RPM
Noise
48 dB(A)
Product Specifications
| Size | Ø90 x 25 mm |
| Motor | DC Brushless |
| Voltage | 12 VDC |
| Frame | PBT Plastic, UL94V-0 |
| Bearing Type | Ball Bearing |
| Operating Temperature | -10 ~ 70°C |
| Life Expectancy | 50,000 hours (25°C) |
| Weight | 121 g |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Static Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFL9025D1-H | 12 | 7 ~ 13.5 | 0.35 | 4.2 | 4200 | 32.6 | 12.58 | 48 |
Specifications subject to change without notice. Specifications are governed by the official approval sheet.

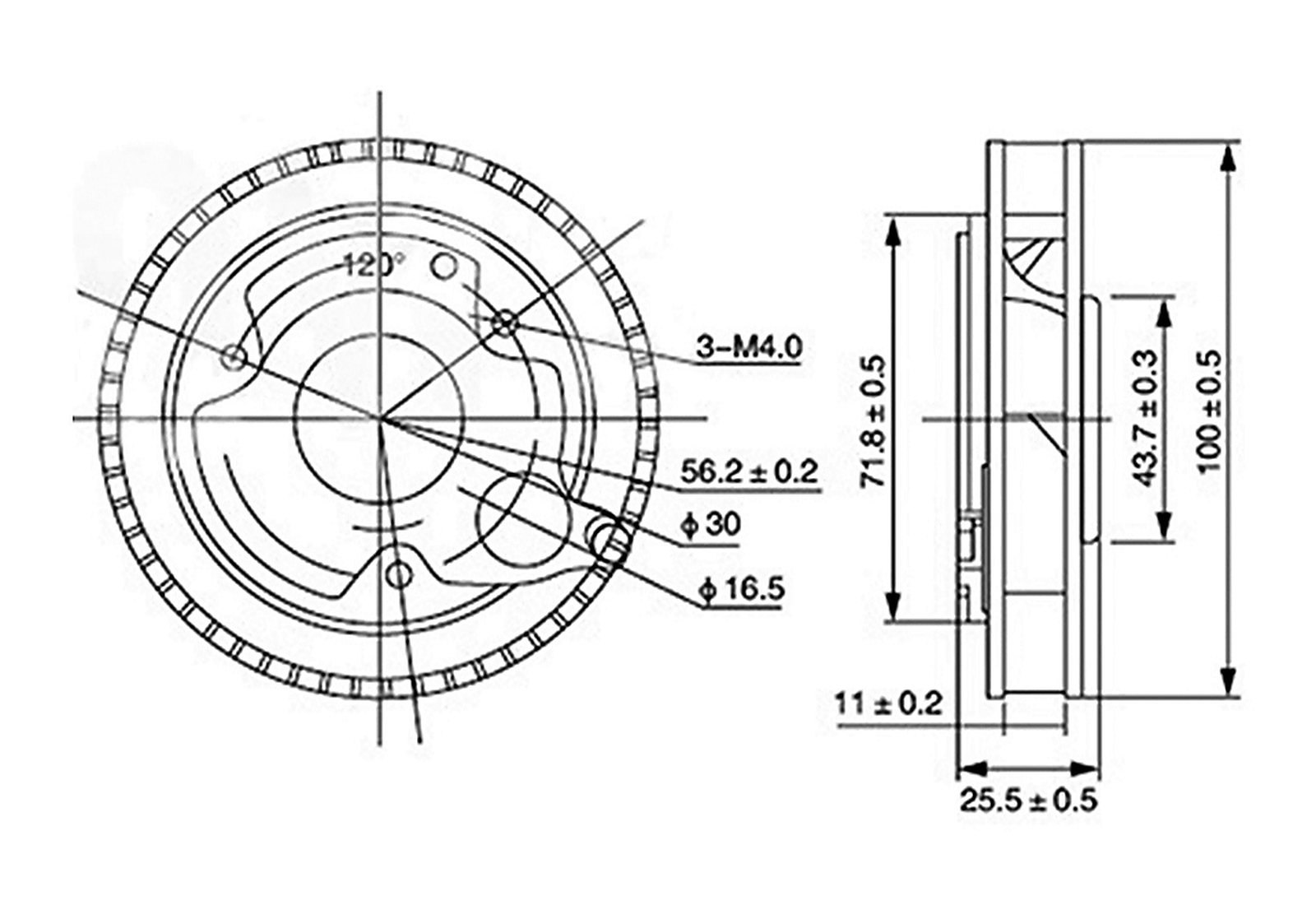

Dimension Drawing

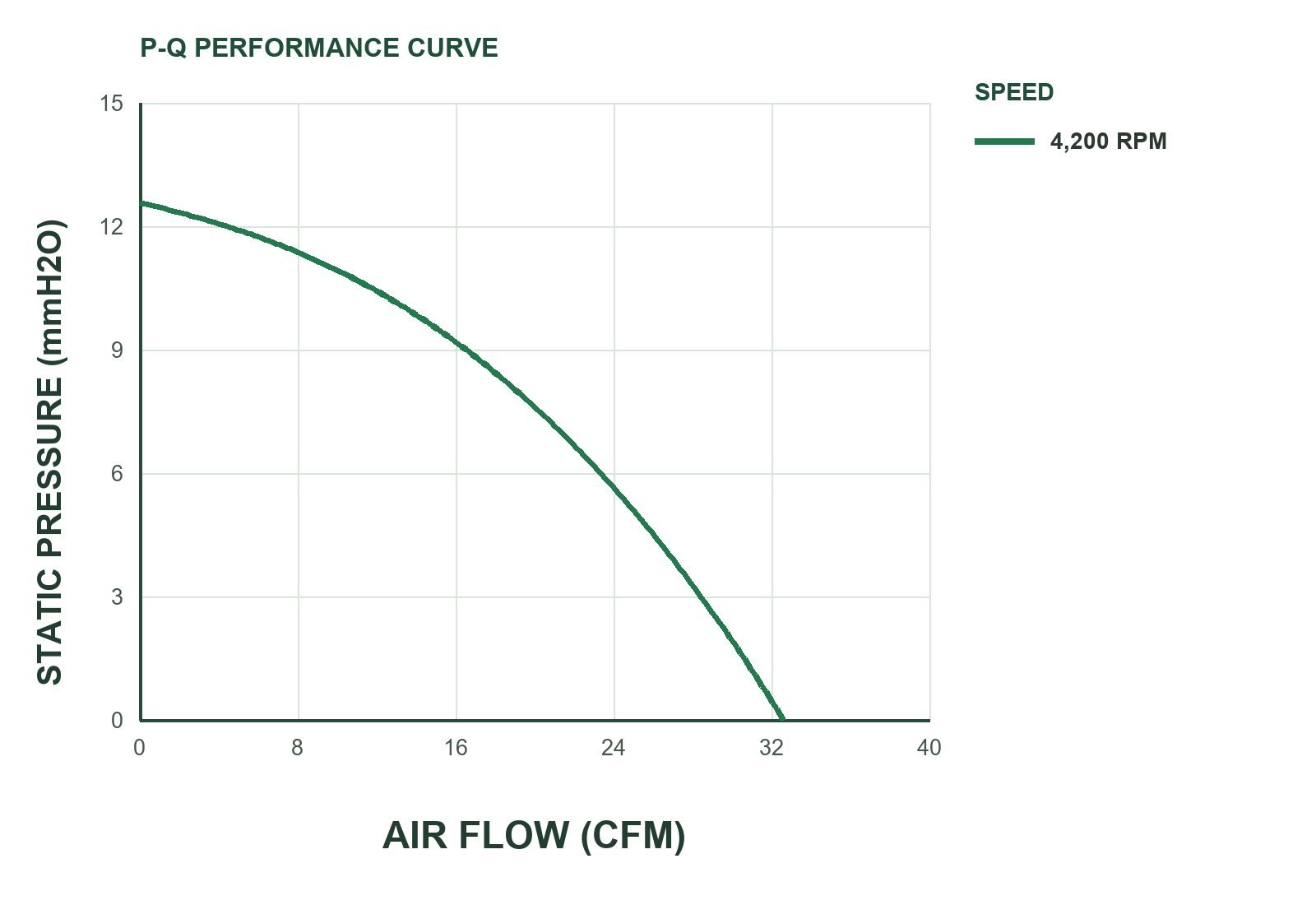

P&Q Curve
