DC 風扇
MFD9225F
92 x 92 x 25 mm
風量
46.8~96.9 CFM
轉速
2500~5000 RPM
噪音
35.5~55 dB(A)
產品規格
| 尺寸 | 92 x 92 x 25 mm |
| 電壓 | 5V / 12V / 24V / 48V DC |
| 框架 | 塑膠 PBT UL94V-0 |
| 扇葉 | 塑膠 PBT UL94V-0 |
| 軸承類型 | 滾珠軸承 / 含油軸承 |
| 工作溫度 | 滾珠軸承: -10 ~ 70°C / 含油軸承: 0 ~ 60°C |
| 預期壽命 | 滾珠軸承: 50,000 小時 (25°C) / 含油軸承: 30,000 小時 (25°C) |
型號與規格
| 型號 | 電壓 (V) | 電流 (A) | 功率 (W) | 轉速 (RPM) | 風量 (CFM) | 靜壓 (mmH₂O) | 噪音 (dB-A) | 軸承 |
|---|---|---|---|---|---|---|---|---|
| MFD9225FD1-LB | 12 | 0.3 | 3.6 | 2500 | 46.8 | 3.98 | 35.5 | 滾珠 |
| MFD9225FD1-LS | 12 | 0.3 | 3.6 | 2500 | 46.8 | 3.98 | 35.5 | 含油 |
| MFD9225FD1-MB | 12 | 0.45 | 5.4 | 3000 | 56.6 | 5.71 | 41.1 | 滾珠 |
| MFD9225FD1-MS | 12 | 0.45 | 5.4 | 3000 | 56.6 | 5.71 | 41.1 | 含油 |
| MFD9225FD1-HB | 12 | 0.51 | 6.12 | 3500 | 69.1 | 7.81 | 45.5 | 滾珠 |
| MFD9225FD1-HS | 12 | 0.51 | 6.12 | 3500 | 69.1 | 7.81 | 45.5 | 含油 |
| MFD9225FD1-HHB | 12 | 0.64 | 7.68 | 4000 | 77.3 | 10.08 | 48.3 | 滾珠 |
| MFD9225FD1-HHS | 12 | 0.64 | 7.68 | 4000 | 77.3 | 10.08 | 48.3 | 含油 |
| MFD9225FD1-HVB | 12 | 0.81 | 9.72 | 4500 | 87.6 | 12.87 | 53.7 | 滾珠 |
| MFD9225FD1-HVS | 12 | 0.81 | 9.72 | 4500 | 87.6 | 12.87 | 53.7 | 含油 |
| MFD9225FD1-VHB | 12 | 1.1 | 13.2 | 5000 | 96.9 | 15.57 | 55 | 滾珠 |
| MFD9225FD2-LB | 24 | 0.15 | 3.6 | 2500 | 46.8 | 3.98 | 35.5 | 滾珠 |
| MFD9225FD2-LS | 24 | 0.15 | 3.6 | 2500 | 46.8 | 3.98 | 35.5 | 含油 |
| MFD9225FD2-MB | 24 | 0.23 | 5.4 | 3000 | 56.6 | 5.71 | 41.1 | 滾珠 |
| MFD9225FD2-MS | 24 | 0.23 | 5.4 | 3000 | 56.6 | 5.71 | 41.1 | 含油 |
| MFD9225FD2-HB | 24 | 0.26 | 6.12 | 3500 | 69.1 | 7.81 | 45.5 | 滾珠 |
| MFD9225FD2-HS | 24 | 0.26 | 6.12 | 3500 | 69.1 | 7.81 | 45.5 | 含油 |
| MFD9225FD2-HHB | 24 | 0.32 | 7.68 | 4000 | 77.3 | 10.08 | 48.3 | 滾珠 |
| MFD9225FD2-HHS | 24 | 0.32 | 7.68 | 4000 | 77.3 | 10.08 | 48.3 | 含油 |
| MFD9225FD2-HVB | 24 | 0.4 | 9.72 | 4500 | 87.6 | 12.87 | 53.7 | 滾珠 |
| MFD9225FD2-HVS | 24 | 0.4 | 9.72 | 4500 | 87.6 | 12.87 | 53.7 | 含油 |
| MFD9225FD2-VHB | 24 | 0.55 | 13.2 | 5000 | 96.9 | 15.57 | 55 | 滾珠 |
| MFD9225FD4-LB | 48 | 0.07 | 3.6 | 2500 | 46.8 | 3.98 | 35.5 | 滾珠 |
| MFD9225FD4-LS | 48 | 0.07 | 3.6 | 2500 | 46.8 | 3.98 | 35.5 | 含油 |
| MFD9225FD4-MB | 48 | 0.11 | 5.4 | 3000 | 56.6 | 5.71 | 41.1 | 滾珠 |
| MFD9225FD4-MS | 48 | 0.11 | 5.4 | 3000 | 56.6 | 5.71 | 41.1 | 含油 |
| MFD9225FD4-HB | 48 | 0.13 | 6.12 | 3500 | 69.1 | 7.81 | 45.5 | 滾珠 |
| MFD9225FD4-HS | 48 | 0.13 | 6.12 | 3500 | 69.1 | 7.81 | 45.5 | 含油 |
| MFD9225FD4-HHB | 48 | 0.16 | 7.68 | 4000 | 77.3 | 10.08 | 48.3 | 滾珠 |
| MFD9225FD4-HHS | 48 | 0.16 | 7.68 | 4000 | 77.3 | 10.08 | 48.3 | 含油 |
| MFD9225FD4-HVB | 48 | 0.2 | 9.72 | 4500 | 87.6 | 12.87 | 53.7 | 滾珠 |
| MFD9225FD4-HVS | 48 | 0.2 | 9.72 | 4500 | 87.6 | 12.87 | 53.7 | 含油 |
| MFD9225FD4-VHB | 48 | 0.28 | 13.2 | 5000 | 96.9 | 15.57 | 55 | 滾珠 |

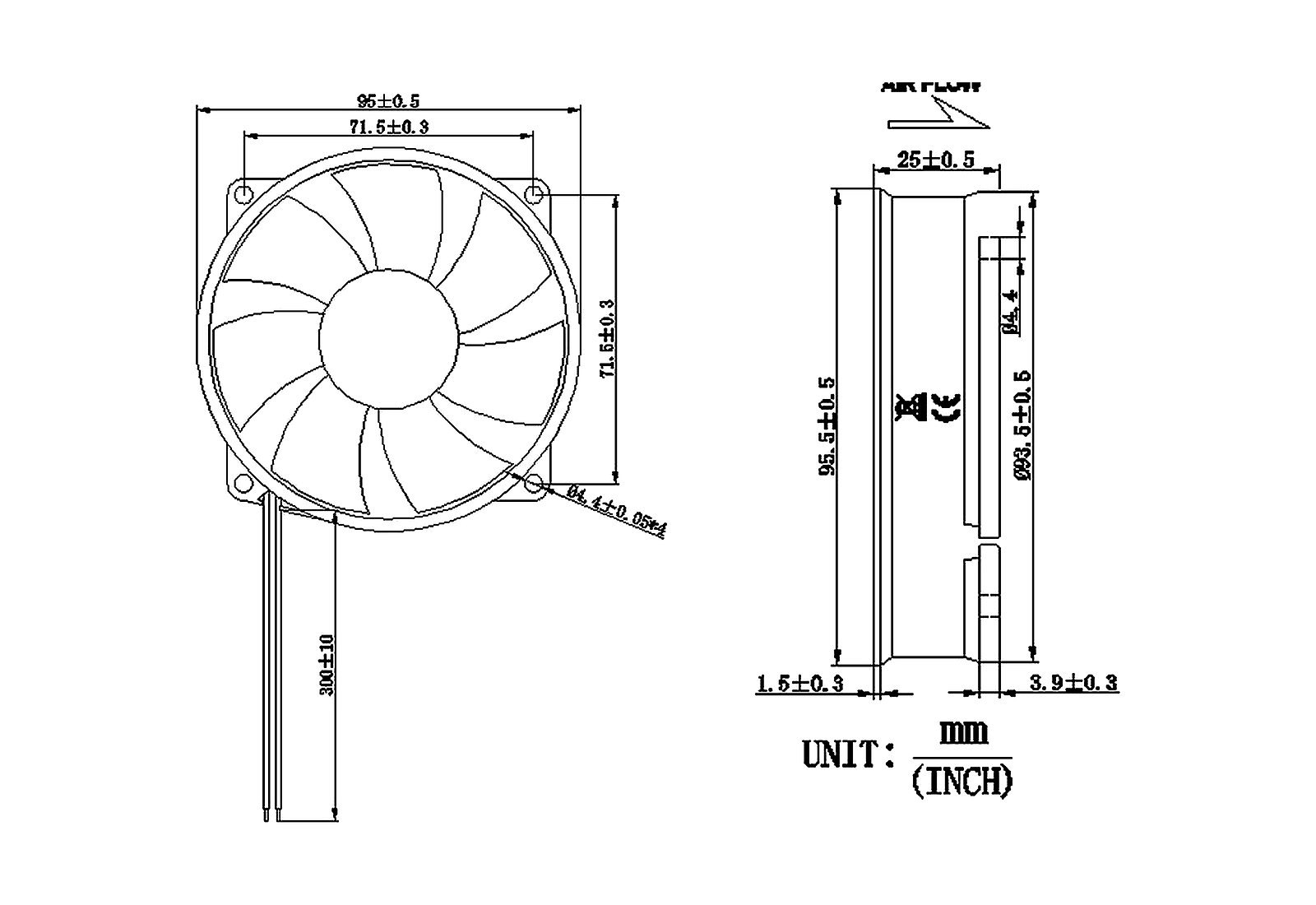

尺寸圖

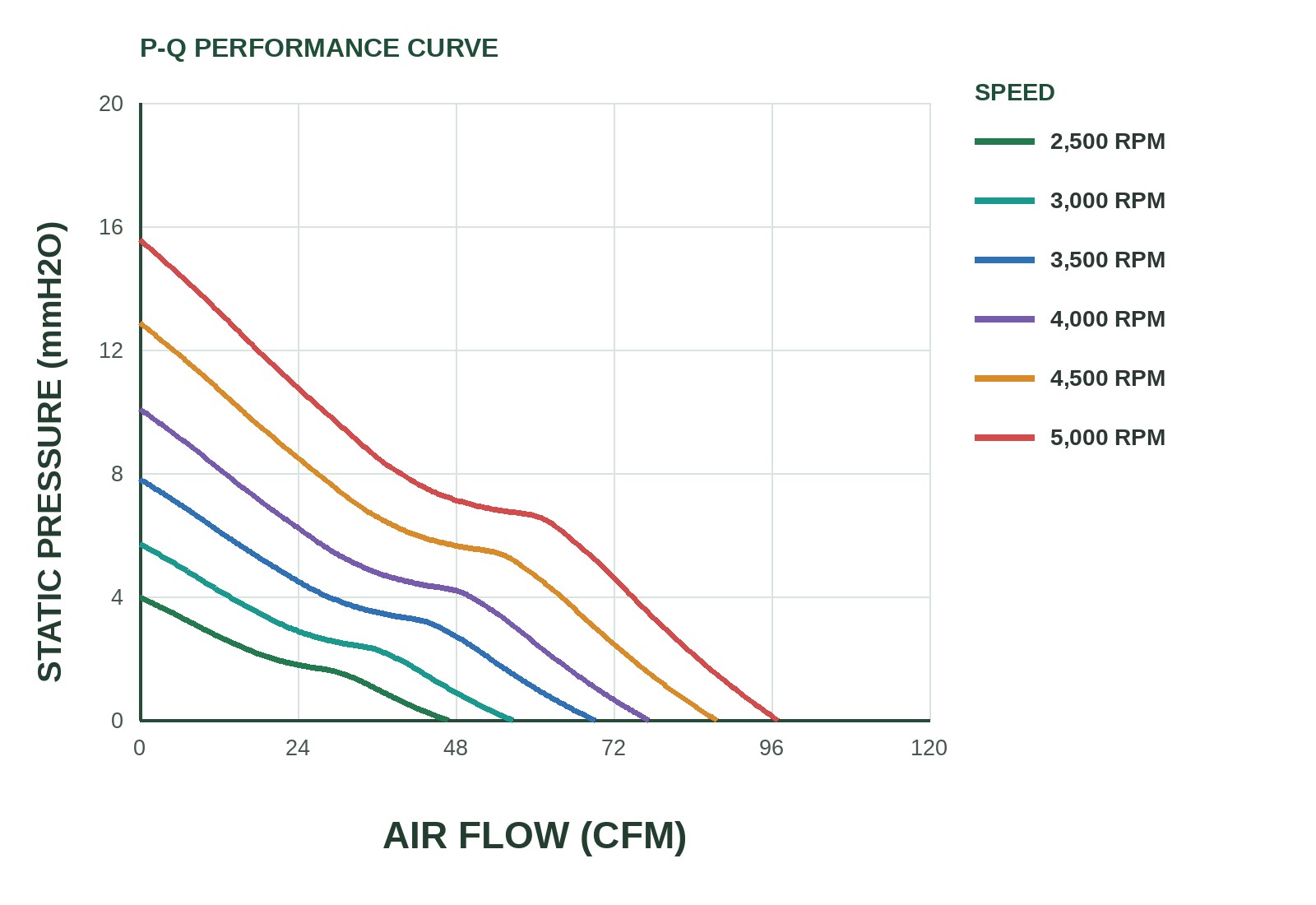

P&Q 曲線圖
