60X60X15mm

model:MFD6015

add to inquiry
category： DC FAN 、DC FAN ( 60/70mm )





MFD6015

　

Bearing system: BALL ,Sleeve

Frame: Thermoplastic PBT UL94V-0

Impeller:Thermoplastic PBT UL94V-0

Weight: 38 g

　

　

　

　

　

　

　

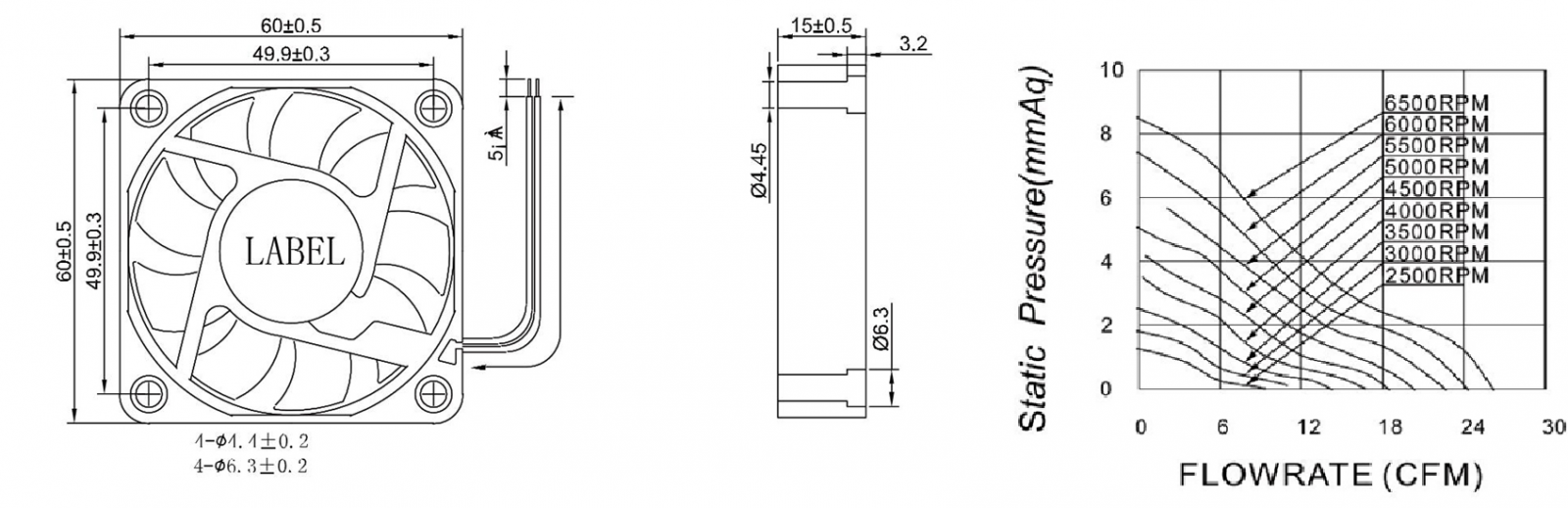

60 X 60 X 15 mm
　



MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maximun Air Flow Maximun Air Pressure Noise
PART NO. VDC VDC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A
MFD6015D05-L 5 1.8~6 0.14 0.72 2000 0.268 9.41 1.34 0.053 21.1
MFD6015D05-M 0.19 0.96 3000 0.328 11.50 1.86 0.073 24.8
MFD6015D05-ML 0.24 1.2 3500 0.406 14.20 2.61 0.103 29.8
MFD6015D05-H 0.29 1.44 4000 0.468 16.40 3.50 0.138 31.2
MFD6015D1-L 12 8.5~13.5 0.06 0.72 2000 0.268 9.41 1.34 0.053 21.1
MFD6015D1-M 0.08 0.96 3000 0.328 11.50 1.86 0.073 24.8
MFD6015D1-ML 0.1 1.2 3500 0.406 14.20 2.61 0.103 29.8
MFD6015D1-H 0.12 1.44 4000 0.468 16.40 3.50 0.138 31.2
MFD6015D1-HL 0.14 1.68 4500 0.524 18.30 4.35 0.171 34.8
MFD6015D1-HH 0.16 1.92 5000 0.584 20.50 5.34 0.210 36.6
MFD6015D1-HV 0.18 2.16 5500 0.603 21.10 6.35 0.250 39.0
MFD6015D1-VH 0.2 2.4 6000 0.640 22.40 7.33 0.289 41.0
MFD6015D2-L 24 18~26.5 0.03 0.72 2000 0.268 9.41 1.34 0.053 21.1
MFD6015D2-M 0.04 0.96 3000 0.328 11.50 1.86 0.073 24.8
MFD6015D2-ML 0.05 1.2 3500 0.406 14.20 2.61 0.103 29.8
MFD6015D2-H 0.06 1.44 4000 0.468 16.40 3.50 0.138 31.2
MFD6015D2-HL 0.07 1.68 4500 0.524 18.30 4.35 0.171 34.8
MFD6015D2-HH 0.08 1.92 5000 0.584 20.50 5.34 0.210 36.6
MFD6015D2-HV 0.09 2.16 5500 0.603 21.10 6.35 0.250 39.0
MFD6015D2-VH 0.1 2.4 6000 0.640 22.40 7.33 0.289 41.0

　

　
