92X92X25mm B

model:MFD9225B

add to inquiry
category： DC FAN 、DC FAN ( 80/90mm )





MFD9225B

　

Bearing system: BALL ,Sleeve

Frame: Thermoplastic PBT UL94V-0

Impeller:Thermoplastic PBT UL94V-0

Weight: 158g

　

　

　

　

　

　

　

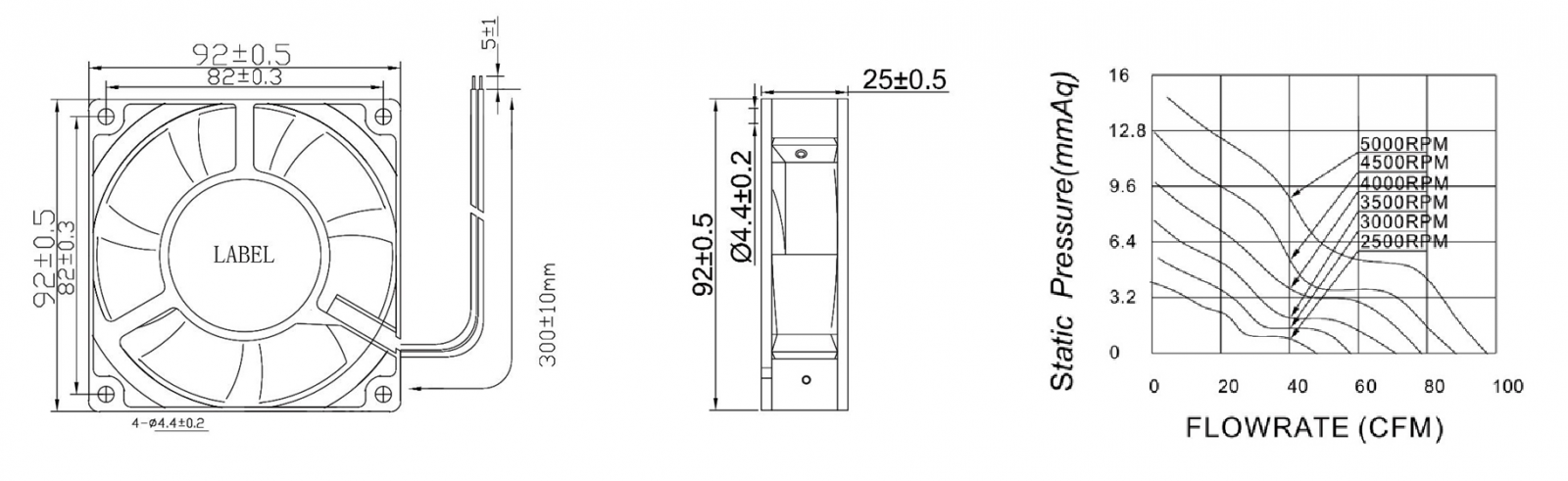

92 X 92 X 25 mm
　



MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maximun Air Flow Maximun Air Pressure Noise
PART NO. VDC VDC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A
MFD9225BD1-L 12 7 ~13.5 0.3 3.6 2500 1.326 46.80 3.98 0.157 35.5
MFD9225BD1-M 0.45 5.4 3000 1.605 56.60 5.71 0.225 41.1
MFD9225BD1-H 0.51 6.12 3500 1.959 69.10 7.81 0.307 45.5
MFD9225BD1-HH 0.64 7.68 4000 2.189 77.30 10.08 0.397 48.3
MFD9225BD1-HV 0.81 9.72 4500 2.482 87.60 12.87 0.507 53.7
MFD9225BD1-VH 1.1 13.2 5000 2.745 96.90 15.57 0.613 55.0
MFD9225BD2-L 24 18 ~ 26.5 0.15 3.6 2500 1.326 46.80 3.98 0.157 35.5
MFD9225BD2-M 0.225 5.4 3000 1.605 56.60 5.71 0.225 41.1
MFD9225BD2-H 0.255 6.12 3500 1.959 69.10 7.81 0.307 45.5
MFD9225BD2-HH 0.32 7.68 4000 2.189 77.30 10.08 0.397 48.3
MFD9225BD2-HV 0.4 9.72 4500 2.482 87.60 12.87 0.507 53.7
MFD9225BD2-VH 0.55 13.2 5000 2.745 96.90 15.57 0.613 55.0
MFD9225BD4-L 48 36 ~ 54 0.075 3.6 2500 1.326 46.80 3.98 0.157 35.5
MFD9225BD4-M 0.11 5.4 3000 1.605 56.60 5.71 0.225 41.1
MFD9225BD4-H 0.127 6.12 3500 1.959 69.10 7.81 0.307 45.5
MFD9225BD4-HH 0.16 7.68 4000 2.189 77.30 10.08 0.397 48.3
MFD9225BD4-HV 0.2 9.72 4500 2.482 87.60 12.87 0.507 53.7
MFD9225BD4-VH 0.275 13.2 5000 2.745 96.90 15.57 0.613 55.0

　

　
