80X80X15mm

model:MFD8015

add to inquiry
category： DC FAN 、DC FAN ( 80/90mm )





MFD8015

　

Bearing system: BALL ,Sleeve

Frame: Thermoplastic PBT UL94V-0

Impeller:Thermoplastic PBT UL94V-0

Weight: 50 g

　

　

　

　

　

　

　

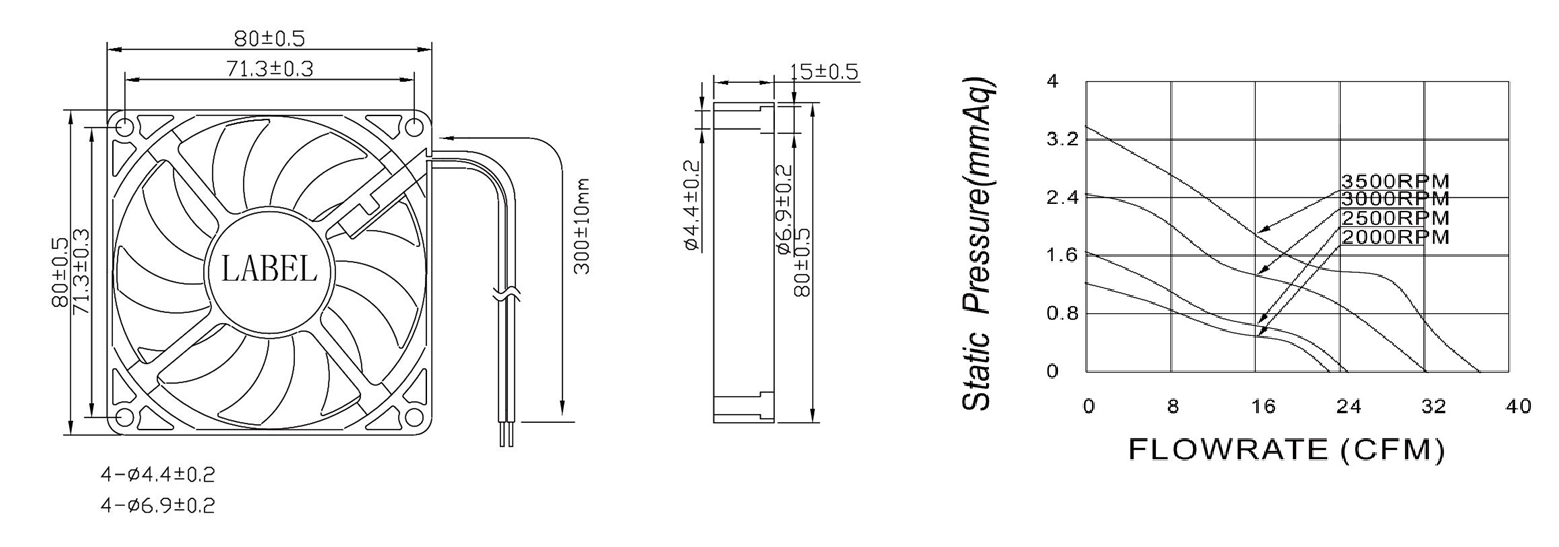

80 X 80 X 15 mm
　



MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maximun Air Flow Maximun Air Pressure Noise
PART NO. VDC VDC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A
MFD8015D05-L 5 3.6 to 6.8 0.24 1.2 2000 0.028 22.8 1.2 0.048 15.5
MFD8015D1-L 12 6.0 to 13.5 0.1 1.2 2000 0.029 22.8 1.2 0.073 30.4
MFD8015D1-M 0.13 1.56 2500 0.041 25 1.65 0.128 33.5
MFD8015D1-H 0.21 2.52 3000 0.049 31.9 2.44 0.153 36.2
MFD8015D1-HH 0.3 3.6 3500 0.067 36.6 3.38 0.27 40.3
MFD8015D2-L 24 18 to 26.5 0.06 1.44 2000 0.029 22.8 1.2 0.073 30.4
MFD8015D2-M 0.08 1.92 2500 0.041 25 1.65 0.128 33.5
MFD8015D2-H 0.1 2.4 3000 0.049 31.9 2.44 0.153 36.2
MFD8015D2-HH 0.18 4.32 3500 0.067 36.6 3.38 0.27 40.3

　

　
