AC Axial Fan
MF8025
：80 x 80 x 25mm (3.15 x 3.15 x 1.0inch)
Airflow
16~25 CFM
Speed
2000~2400 RPM
Noise
29~33 dB(A)
Product Specifications
| Size | ：80 x 80 x 25mm (3.15 x 3.15 x 1.0inch) |
| Voltage | 110V / 220V AC, 50/60Hz |
| Motor | Shaded Pole |
| Frame | Aluminum Die-Cost |
| Impeller | PBT + 30% Fiber Glass. UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: Within -20 ~ 80°C / Sleeve Bearing: Within -10 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 60°C / Sleeve Bearing: 30,000 hours at 40°C |
Part Number & Specifications
| Part No. | Bearing | Rated Voltage (V) | Frequency (Hz) | Current (A) | Input Power (W) | Speed (RPM) | Airflow (CFM) | Static Pressure (inch-H₂O) | Noise (dB-A) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| MF8025A1-HBAPL | Ball | 110/120 | 50/60 | 0.07/0.08 | 6/8 | 2000/2400 | 16/25 | 0.08/0.13 | 29/33 | 195 |
| MF8025A1-HSAPL | Sleeve | 110/120 | 50/60 | 0.07/0.08 | 6/8 | 2000/2400 | 16/25 | 0.08/0.13 | 29/33 | 195 |
| MF8025A2-HBAPL | Ball | 220/240 | 50/60 | 0.04/0.05 | 6/8 | 2000/2400 | 16/25 | 0.08/0.13 | 29/33 | 195 |
| MF8025A2-HSAPL | Sleeve | 220/240 | 50/60 | 0.04/0.05 | 6/8 | 2000/2400 | 16/25 | 0.08/0.13 | 29/33 | 195 |

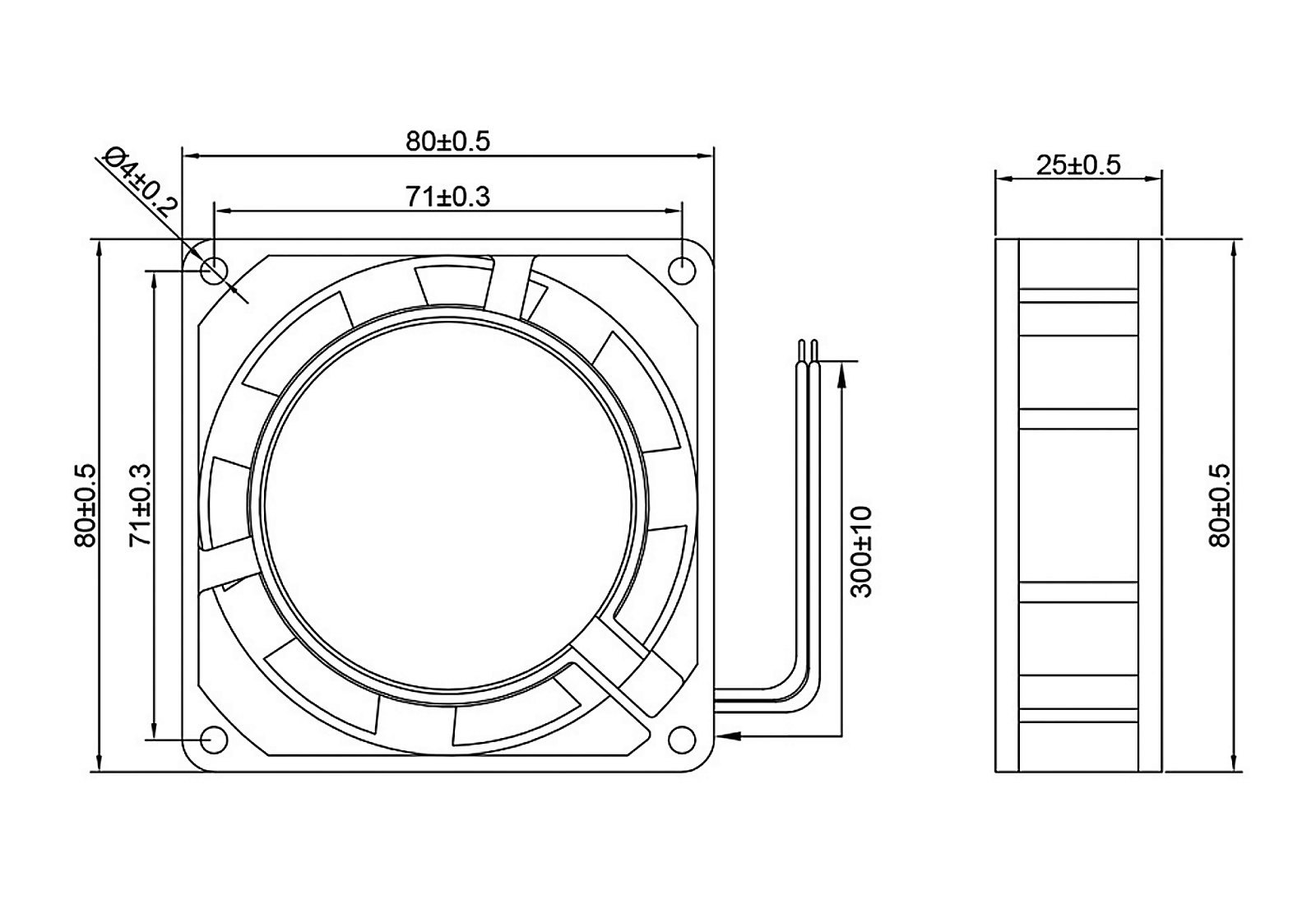

Dimension Drawing

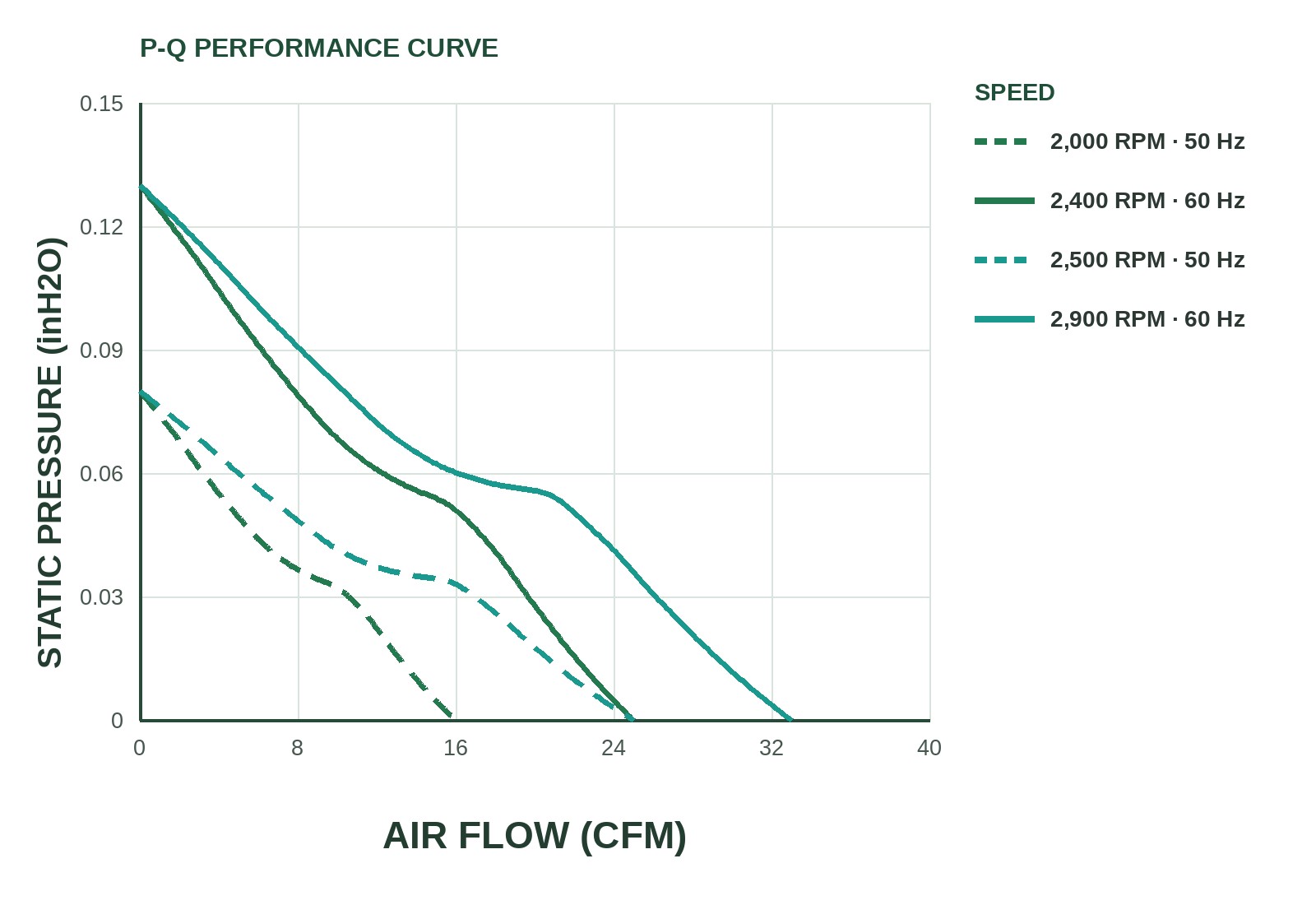

P&Q Curve
