AC Axial Fan
MF9225
92 x 92 x 25mm (3.62 x 3.62 x 1.0inch)
Airflow
22~34 CFM
Speed
1800~3100 RPM
Noise
28~41 dB(A)
Product Specifications
| Size | 92 x 92 x 25mm (3.62 x 3.62 x 1.0inch) |
| Voltage | 110V / 220V AC, 50/60Hz |
| Motor | Shaded Pole |
| Frame | Aluminum Die-Cast |
| Impeller | PBT + 30% Fiber Glass. UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: Within -20 ~ 80°C / Sleeve Bearing: Within -10 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 60°C / Sleeve Bearing: 30,000 hours at 40°C |
Part Number & Specifications
| Part No. | Bearing | Rated Voltage (V) | Frequency (Hz) | Current (A) | Input Power (W) | Speed (RPM) | Airflow (CFM) | Static Pressure (inch-H₂O) | Noise (dB-A) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| MF9225A1-LBAPL | Ball | 110/120 | 50/60 | 0.14/0.13 | 14/13 | 1800/2300 | 22/26 | 0.08/0.11 | 28/35 | 280 |
| MF9225A1-LBAPT | Ball | 110/120 | 50/60 | 0.14/0.13 | 14/13 | 1800/2300 | 22/26 | 0.08/0.11 | 28/35 | 280 |
| MF9225A1-LSAPL | Sleeve | 110/120 | 50/60 | 0.14/0.13 | 14/13 | 1800/2300 | 22/26 | 0.08/0.11 | 28/35 | 280 |
| MF9225A1-LSAPT | Sleeve | 110/120 | 50/60 | 0.14/0.13 | 14/13 | 1800/2300 | 22/26 | 0.08/0.11 | 28/35 | 280 |
| MF9225A1-HBAPL | Ball | 110/120 | 50/60 | 0.16/0.14 | 16/14 | 2400/2900 | 28/34 | 0.12/0.17 | 35/41 | 280 |
| MF9225A1-HBAPT | Ball | 110/120 | 50/60 | 0.16/0.14 | 16/14 | 2400/2900 | 28/34 | 0.12/0.17 | 35/41 | 280 |
| MF9225A1-HSAPL | Sleeve | 110/120 | 50/60 | 0.16/0.14 | 16/14 | 2400/2900 | 28/34 | 0.12/0.17 | 35/41 | 280 |
| MF9225A1-HSAPT | Sleeve | 110/120 | 50/60 | 0.16/0.14 | 16/14 | 2400/2900 | 28/34 | 0.12/0.17 | 35/41 | 280 |
| MF9225A2-LBAPL | Ball | 220/240 | 50/60 | 0.07/0.06 | 14/13 | 1800/2300 | 22/26 | 0.08/0.11 | 28/35 | 280 |
| MF9225A2-LBAPT | Ball | 220/240 | 50/60 | 0.07/0.06 | 14/13 | 1800/2300 | 22/26 | 0.08/0.11 | 28/35 | 280 |
| MF9225A2-LSAPL | Sleeve | 220/240 | 50/60 | 0.07/0.06 | 14/13 | 1800/2300 | 22/26 | 0.08/0.11 | 28/35 | 280 |
| MF9225A2-LSAPT | Sleeve | 220/240 | 50/60 | 0.07/0.06 | 14/13 | 1800/2300 | 22/26 | 0.08/0.11 | 28/35 | 280 |
| MF9225A2-HBAPL | Ball | 220/240 | 50/60 | 0.08/0.07 | 16/14 | 2800/3100 | 28/34 | 0.12/0.17 | 35/41 | 280 |
| MF9225A2-HBAPT | Ball | 220/240 | 50/60 | 0.08/0.07 | 16/14 | 2800/3100 | 28/34 | 0.12/0.17 | 35/41 | 280 |
| MF9225A2-HSAPL | Sleeve | 220/240 | 50/60 | 0.08/0.07 | 16/14 | 2800/3100 | 28/34 | 0.12/0.17 | 35/41 | 280 |
| MF9225A2-HSAPT | Sleeve | 220/240 | 50/60 | 0.08/0.07 | 16/14 | 2800/3100 | 28/34 | 0.12/0.17 | 35/41 | 280 |

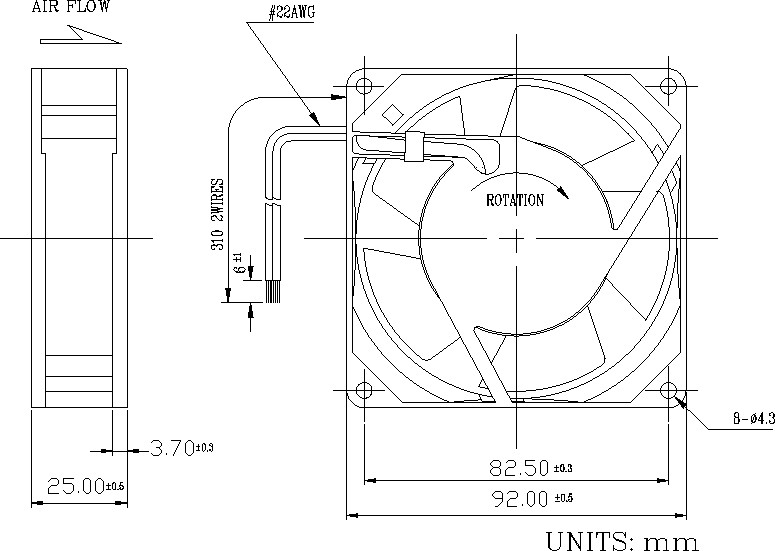

Dimension Drawing
P&Q Curve
Part Number Code
MFSeries
120Frame
38Thickness
A1Voltage
HSpeed
BBearing
AFrame Material
PImpeller
TLead-out
IP55Protection
Example MF12038A1-HBAPT-IP55
From left to right: AC fan series, frame, thickness, single rated voltage, speed, bearing, frame material, impeller, lead-out and protection suffix. AC fans have no signal output option; available combinations follow the complete part-number approval sheet.
From left to right: AC fan series, frame, thickness, single rated voltage, speed, bearing, frame material, impeller, lead-out and protection suffix. AC fans have no signal output option; available combinations follow the complete part-number approval sheet.
MF
AC Axial Fan
120 / 38
120mm frame, 38mm thickness
Voltage
A1110 / 120 VAC
A2220 / 240 VAC
A3380 / 440 VAC
Speed
LLow speed
MMedium speed
HHigh speed
Bearing
BBall Bearing
SSleeve Bearing
A
Aluminum die-cast frame
P / A
PBT + 30% glass-fibre impeller / aluminum-magnesium alloy impeller
SQ
Identifies the square 172 × 172 frame, distinct from the 172 × 150 frame
T / L
Terminal connector / flying leads; the lead-out type follows the complete part number
-IP55
IP55 water-protected type (IPX7 also available)
Some models carry additional custom suffixes (lead length, connector type, ingress protection, etc.);
Please confirm the complete part number with our sales team before ordering.
