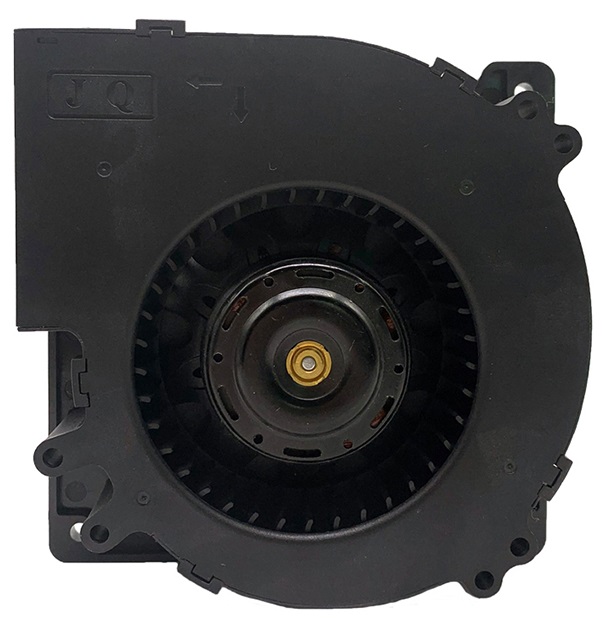

DC Blower
MFB12032B
120 x 120 x 32 m
Airflow
32.4~66.0 CFM
Speed
2500~5000 RPM
Noise
50.4~64.7 dB(A)
Product Specifications
| Size | 120 x 120 x 32 mm |
| Motor | Brushless DC |
| Voltage | 5V / 12V / 24V / 48V DC |
| Frame | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFB12032BD1-LB | 12 | 7 ~ 13.8 | 0.8 | 6 | 2500 | 32.35 | 18.98 | 50.4 |
| MFB12032BD1-MB | 12 | 7 ~ 13.8 | 1.4 | 7.8 | 3000 | 40.35 | 29.28 | 52.3 |
| MFB12032BD1-HB | 12 | 7 ~ 13.8 | 1.8 | 20.1 | 3500 | 46.38 | 40.17 | 58.3 |
| MFB12032BD1-HHB | 12 | 7 ~ 13.8 | 2.4 | 26.4 | 4000 | 52.44 | 54.63 | 59 |
| MFB12032BD1-VHB | 12 | 7 ~ 13.8 | 3 | 36 | 4500 | 59.32 | 73.11 | 62.2 |
| MFB12032BD1-HVB | 12 | 7 ~ 13.8 | 3.6 | 43.2 | 5000 | 65.96 | 83.6 | 64.7 |
| MFB12032BD2-LB | 24 | 18 ~ 26.5 | 0.4 | 9.6 | 2500 | 32.35 | 18.98 | 50.4 |
| MFB12032BD2-MB | 24 | 18 ~ 26.5 | 0.7 | 16.8 | 3000 | 40.35 | 29.28 | 52.3 |
| MFB12032BD2-HB | 24 | 18 ~ 26.5 | 0.9 | 21.6 | 3500 | 46.38 | 40.17 | 58.3 |
| MFB12032BD2-HHB | 24 | 18 ~ 26.5 | 1.2 | 28.8 | 4000 | 52.44 | 54.63 | 59 |
| MFB12032BD2-VHB | 24 | 18 ~ 26.5 | 1.5 | 36 | 4500 | 59.32 | 73.11 | 62.2 |
| MFB12032BD2-HVB | 24 | 18 ~ 26.5 | 1.8 | 43.2 | 5000 | 65.96 | 83.6 | 64.7 |
| MFB12032BD4-LB | 48 | 36 ~ 54 | 0.2 | 9.6 | 2500 | 32.35 | 18.98 | 50.4 |
| MFB12032BD4-MB | 48 | 36 ~ 54 | 0.35 | 16.8 | 3000 | 40.35 | 29.28 | 52.3 |
| MFB12032BD4-HB | 48 | 36 ~ 54 | 0.45 | 21.6 | 3500 | 46.38 | 40.17 | 58.3 |
| MFB12032BD4-HHB | 48 | 36 ~ 54 | 0.6 | 28.8 | 4000 | 52.44 | 54.63 | 59 |
| MFB12032BD4-VHB | 48 | 36 ~ 54 | 0.75 | 36 | 4500 | 59.32 | 73.11 | 62.2 |
| MFB12032BD4-HVB | 48 | 36 ~ 54 | 0.9 | 43.2 | 5000 | 65.96 | 83.6 | 64.7 |

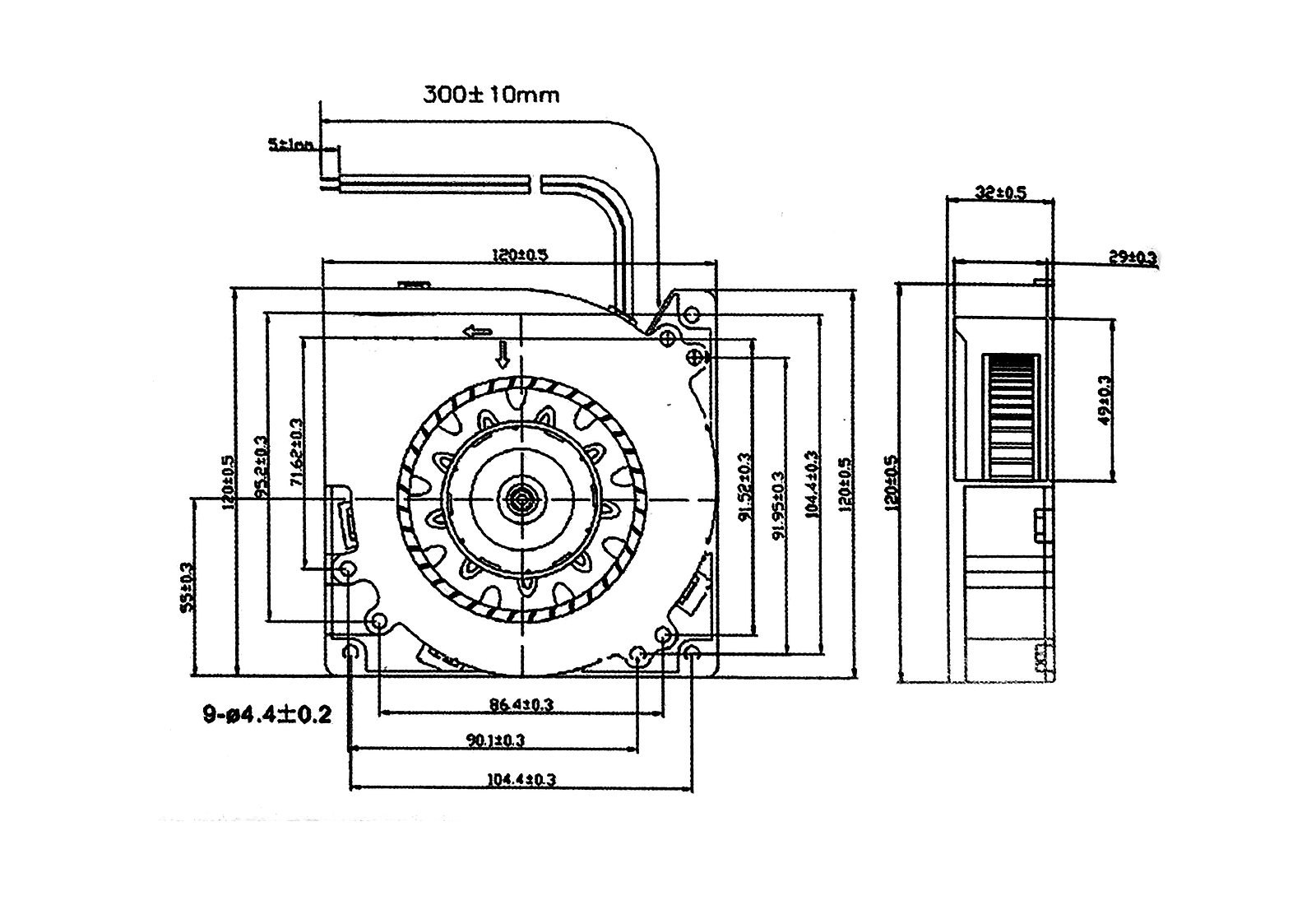

Dimension Drawing

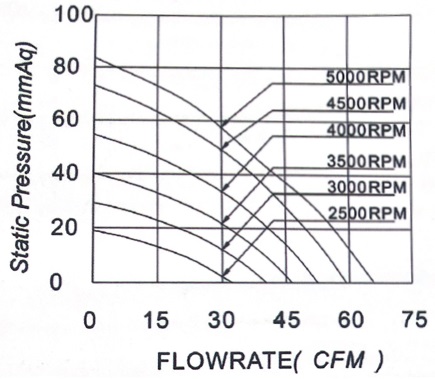

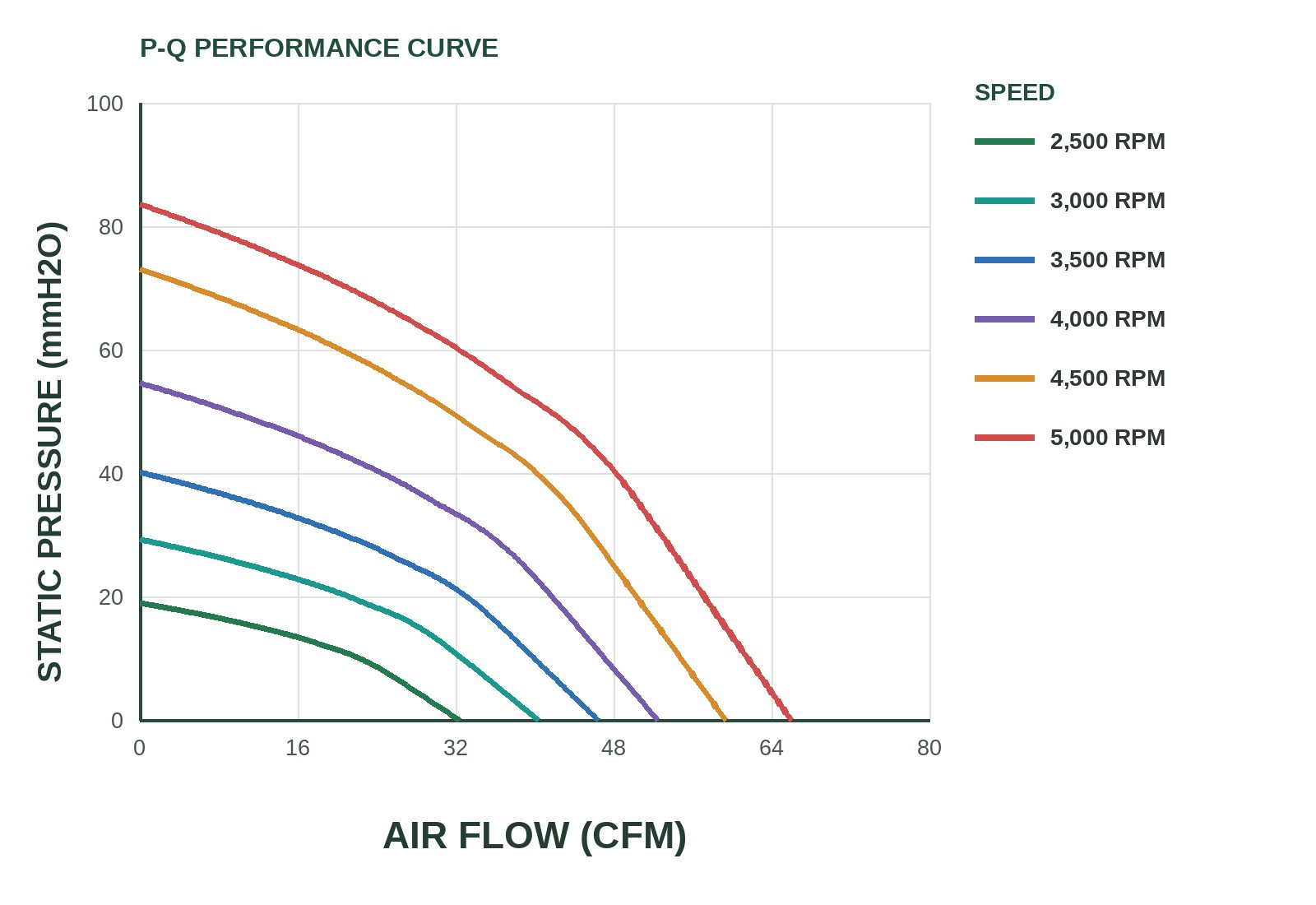

P&Q Curve
