DC Blower
MFB2006
20 x 20 x 6m
Airflow
0.2 CFM
Speed
10000 RPM
Noise
18 dB(A)
Product Specifications
| Size | 20 x 20 x 6m |
| Motor | Brushless DC |
| Voltage | 5V / 12V / 24V / 48V DC |
| Frame | plastic PBT UL94V-0 |
| Bearing Type | Sleeve Bearing |
| Operating Temperature | Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFB2006D05-M | 5 | 3 ~ 6 | 0.08 | 0.4 | 10000 | 0.21 | 1.21 | <18 |
| MFB2006D12-M | 12 | 7.5 ~ 13.5 | 0.04 | 0.48 | 10000 | 0.21 | 1.21 | <18 |

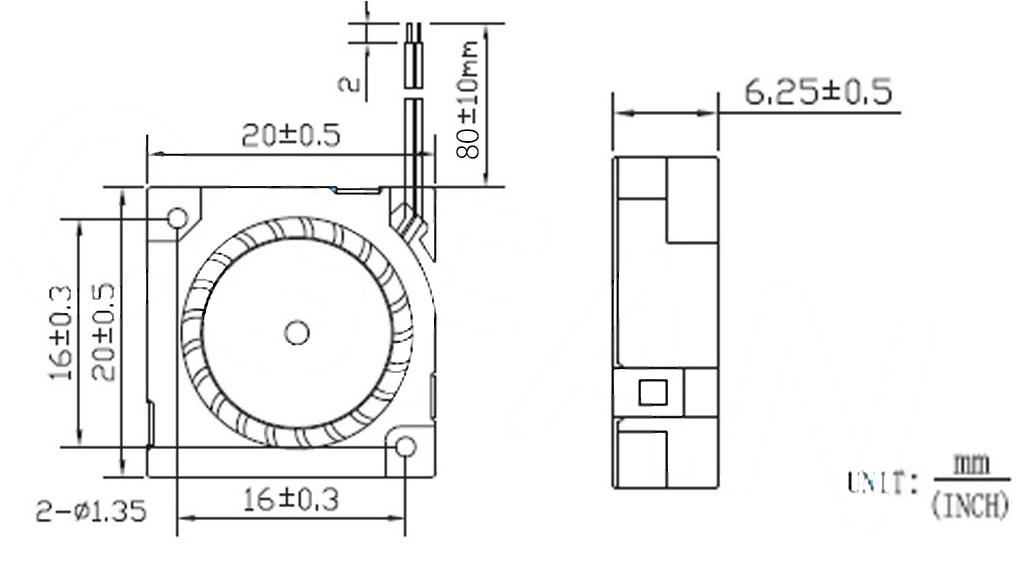

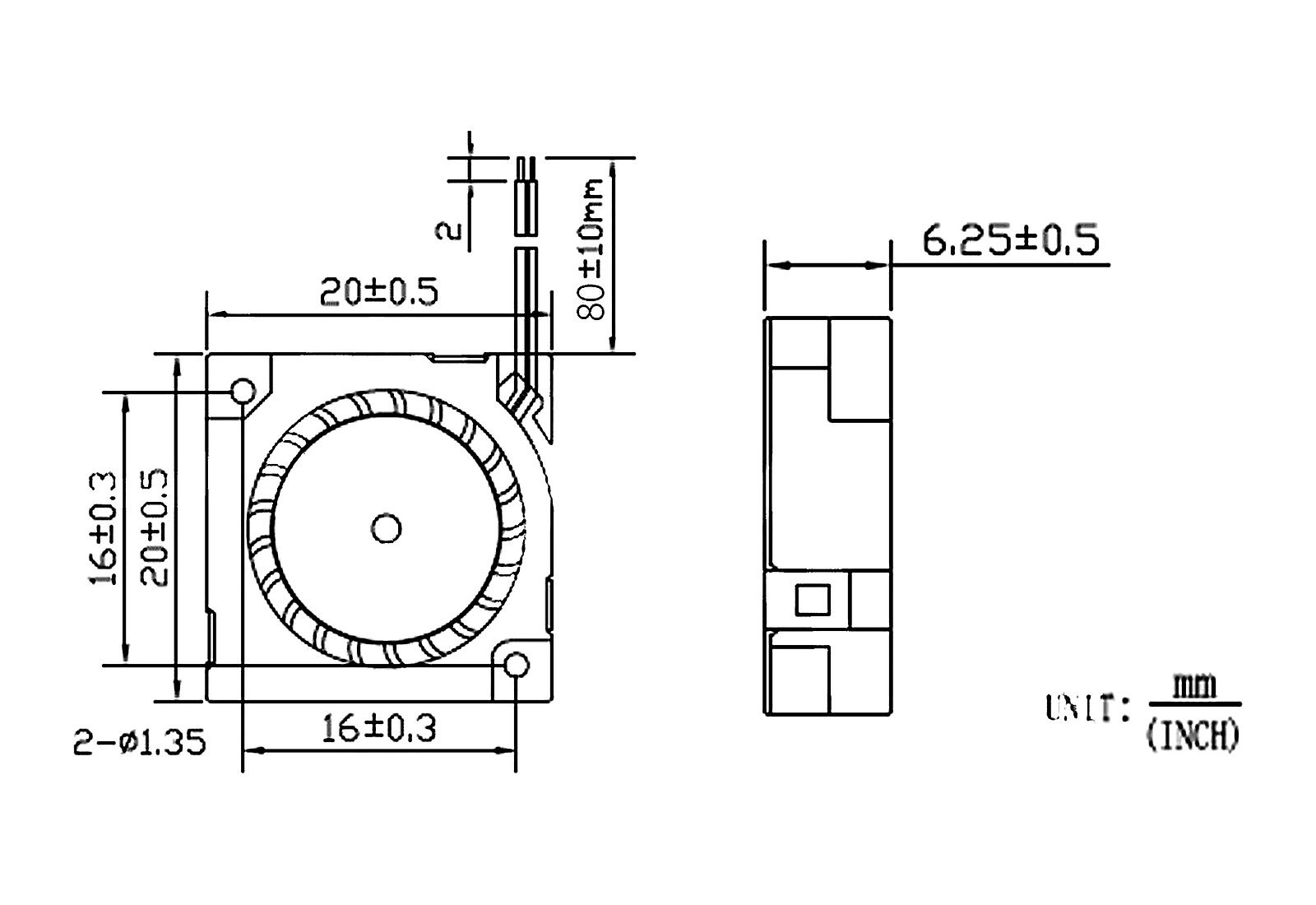

Dimension Drawing

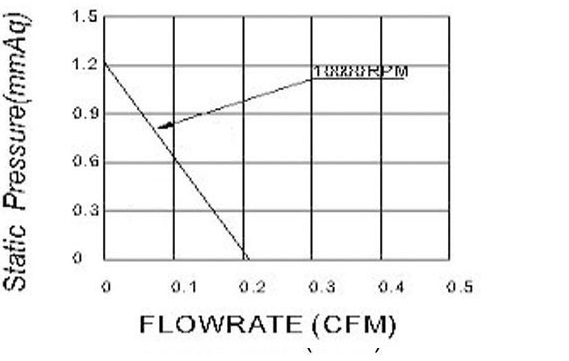

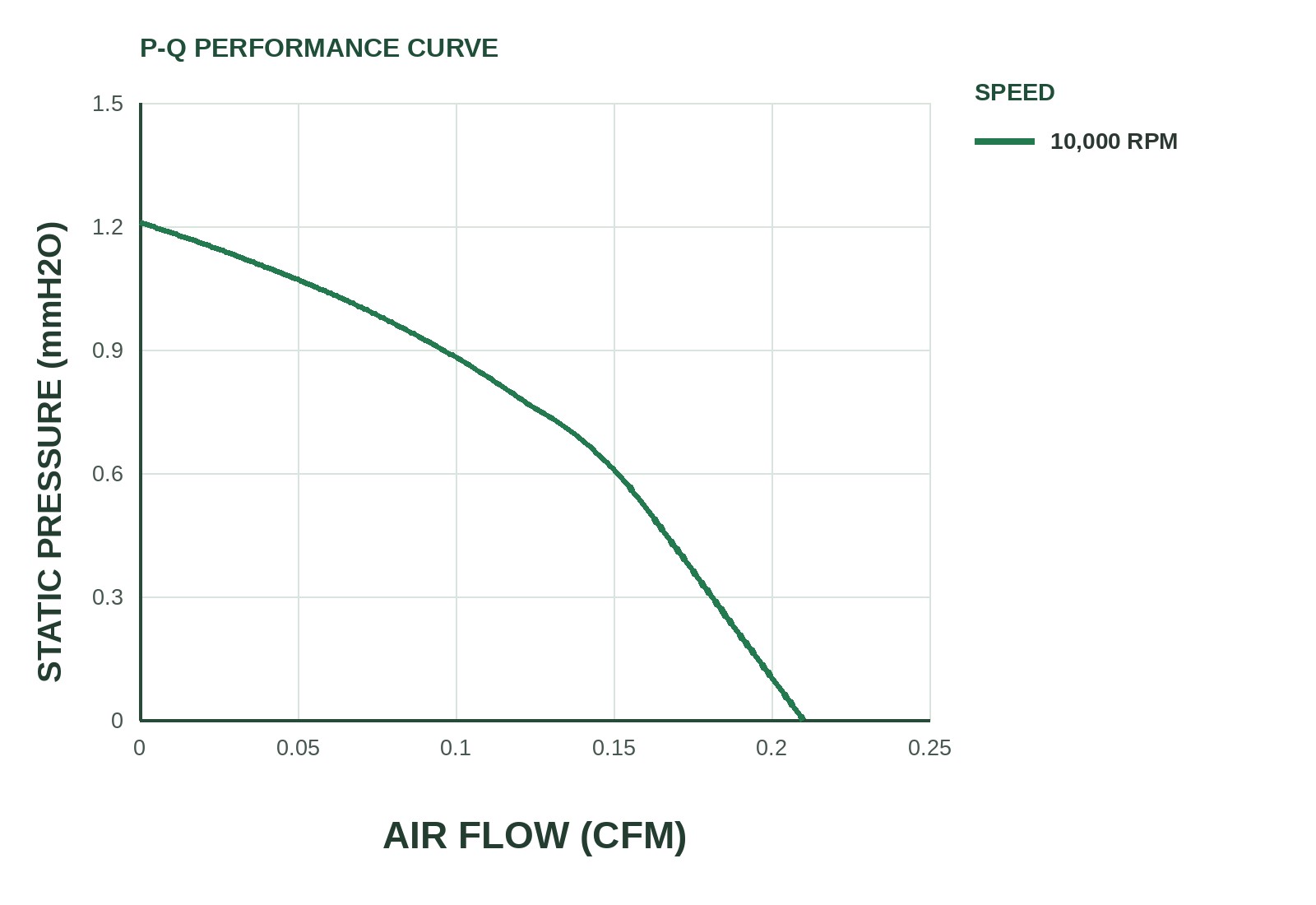

P&Q Curve
